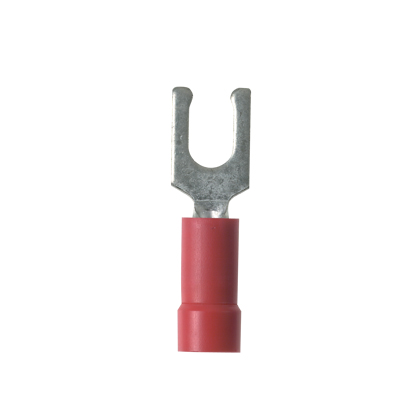

Product image for Panduit PV18-8LF-MY Fork Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK1000
Email

Panduit PV18-8LF-MY Fork Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK1000

Manufacturer: Panduit Corp | Catalog # PV18-8LF-MY | Cooper Electric Part # 175934
$811.61/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing
The PV18-8LF-MY Pan-Term® Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.49 in
Barrel Type
Funnel
Color Coding
Red
Conductor Size
18 AWG
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#8
TC Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.29 in
Type
Locking Fork Terminal
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983417032
Color
Red
Finish
Tin Plated
GTiN
00074983417032
Product UPC
07498341703

Dimensions

Overall Length
0.97 in
Width
0.29 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
