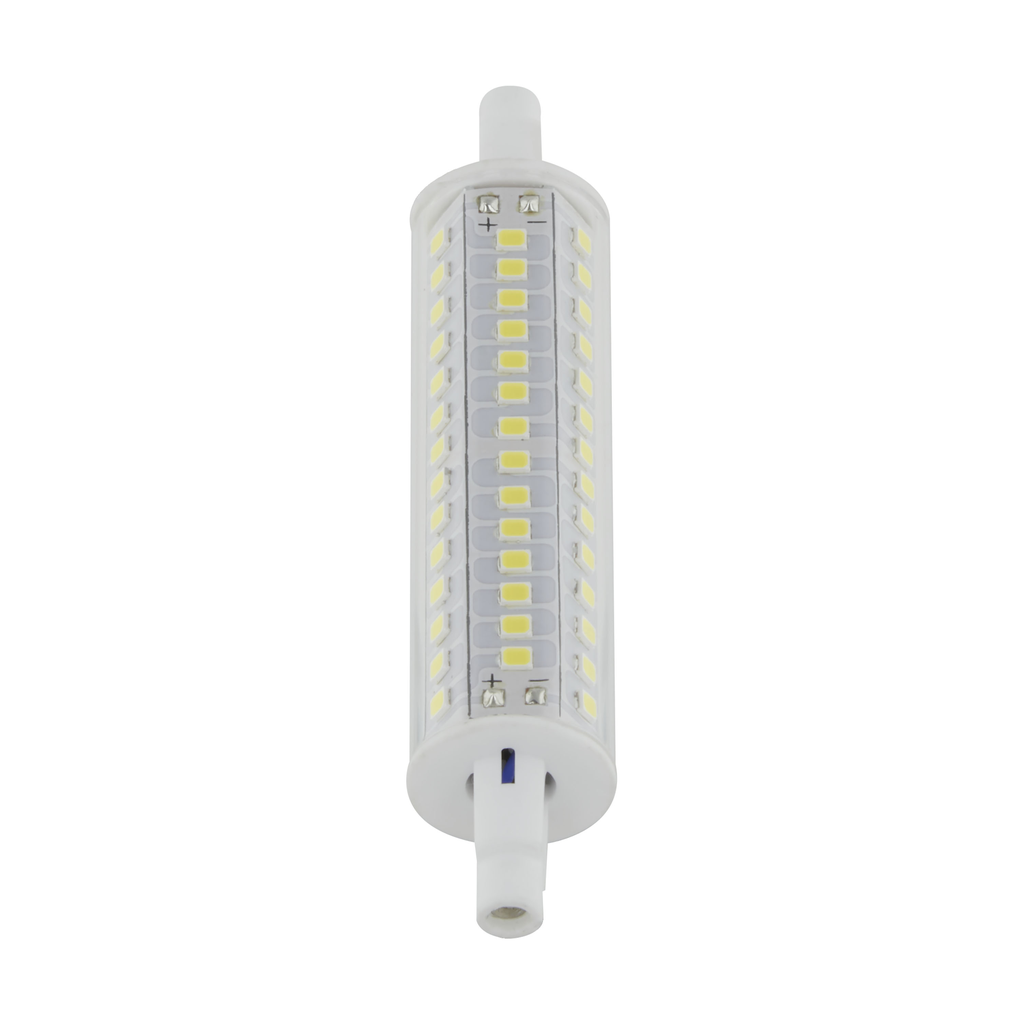

Product image for Satco S11222 10 Watt LED Bulb; J-Type T3 118mm; 120 Volt; R7S Base; 3000K; Double Ended; 200 Degree Beam Angle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Email

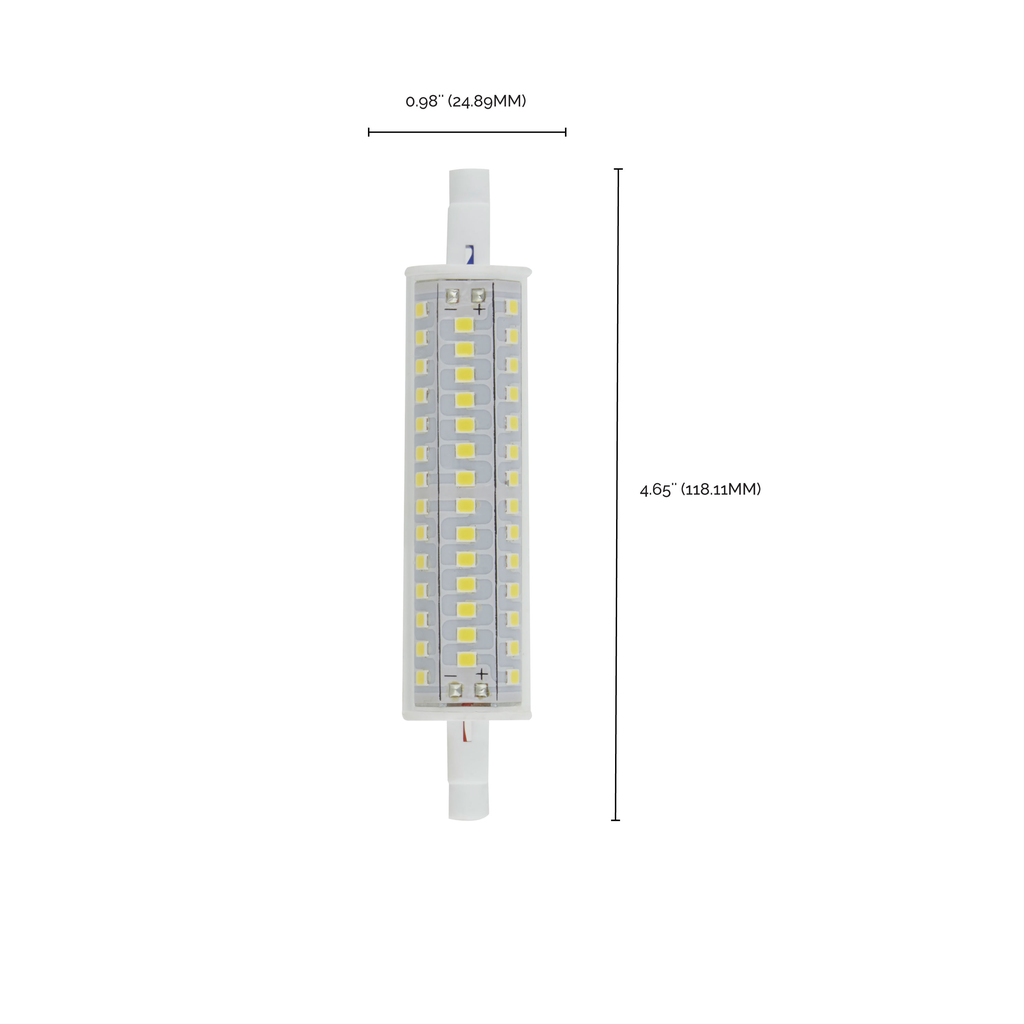

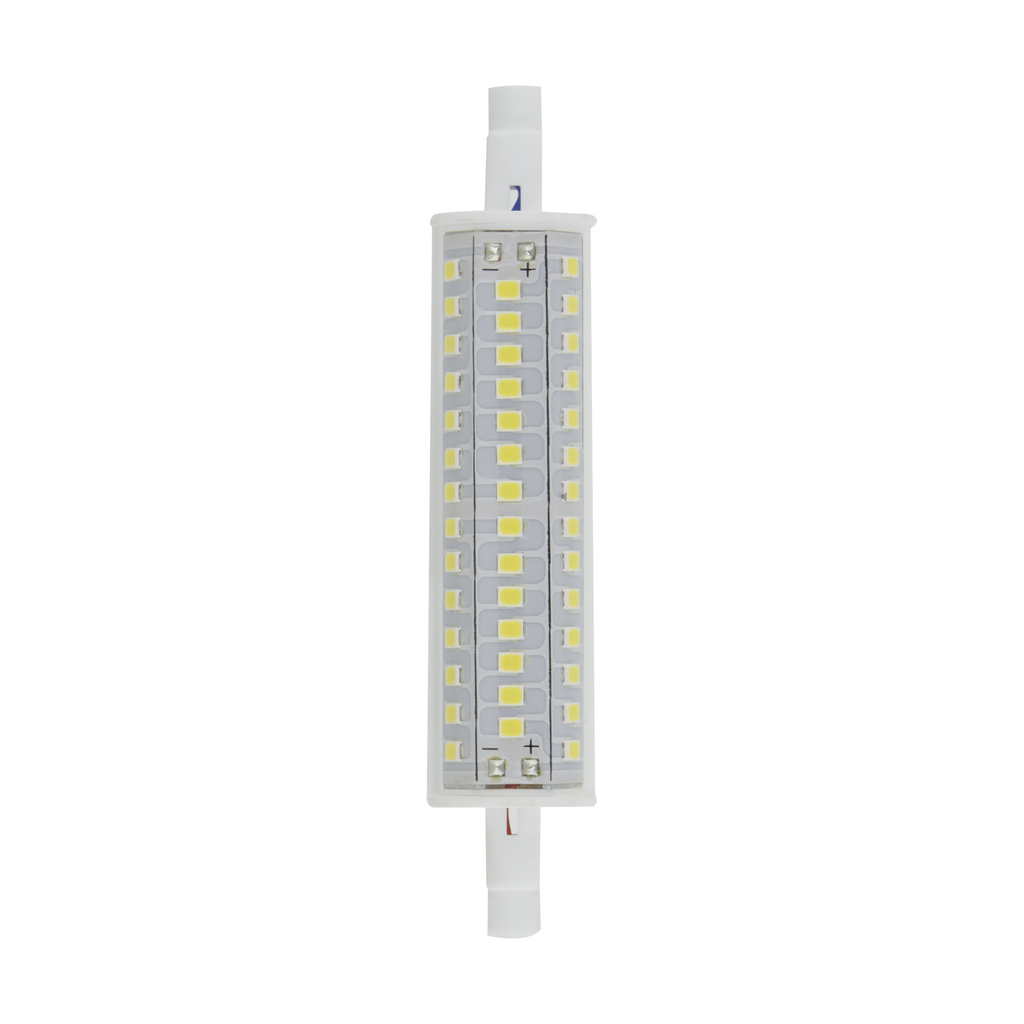

Satco S11222 10 Watt LED Bulb; J-Type T3 118mm; 120 Volt; R7S Base; 3000K; Double Ended; 200 Degree Beam Angle

Manufacturer: Satco | Nuvo | Catalog # S11222 | Cooper Electric Part # 1759014
$9.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
10W LED Bulb - J-Type T3 118mm - 120V - R7S Base - 3000K - Double Ended - 200 Degree Beam Angle

Technical Information

Amperage
0.083 Amp
Average Rated Life
15000 hr
Beam Spread
200
Color Temperature
Warm White
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
75 W
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
1,100 Lumen
Material
Polycarbonate
Operating Temperature
-20 degrees C
Power Factor
0.7
Technology Type
LED
Type
J-Type
Voltage
120 Volt
Wattage
10 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923112225
Finish
Clear
GTiN
00045923112225
Housing Color
White
Product UPC
04592311222
Weight
0.08 lb

Dimensions

Warranty Length
3 yr

Certifications and Compliance

Country of Origin
China
Features
  • Damp location rated
  • Enclosed fixture rated
  • Dimmable
  • cULus listed
  • Long life -- 15000 hours
  • Operating temperature: -20C (-4F) to a maximum of 45C (113F)
Installation Notes
  • Not for use in vapor tight fixtures.
