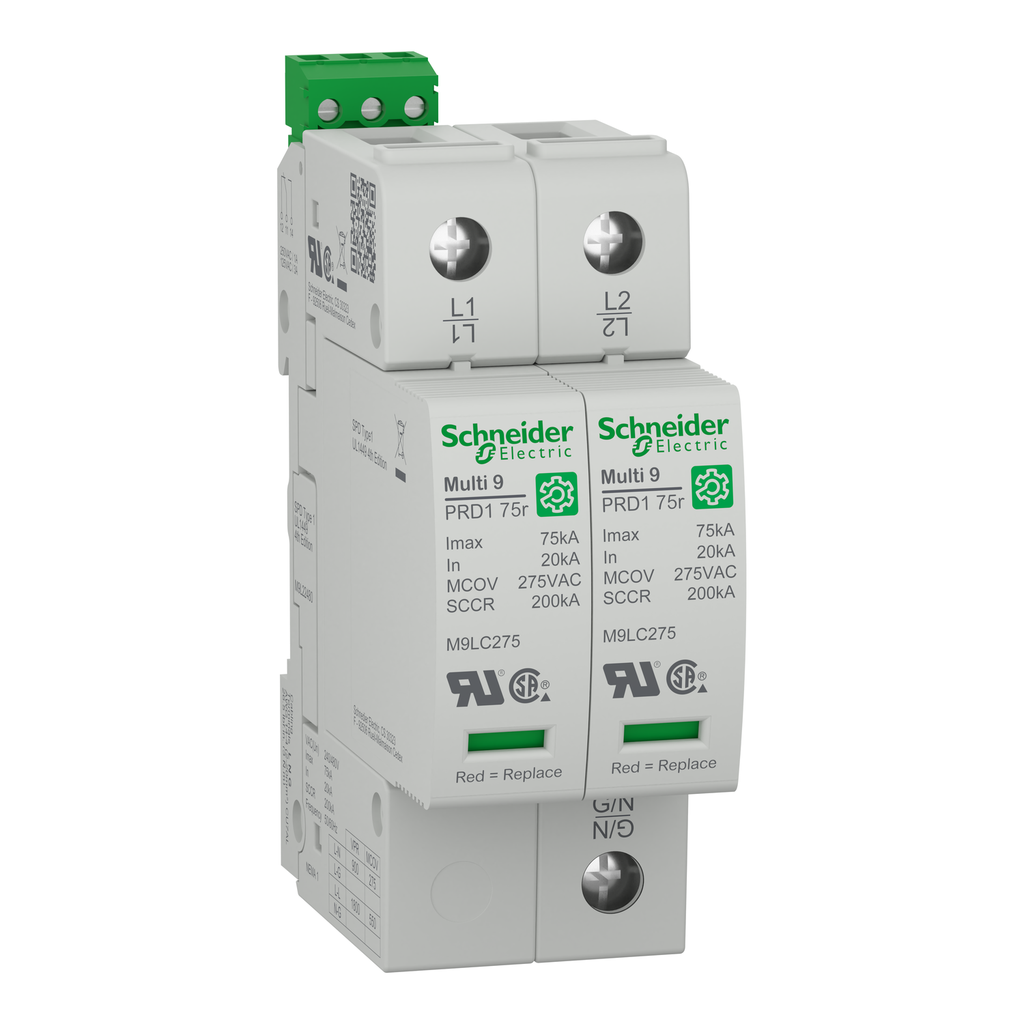

SQUARED M9L22480 surge arrester, Mu

Manufacturer: Square-D / Schneider | Catalog # M9L22480 | Cooper Electric Part # 1758468
$148.54/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Multi9 PRD1 product is a surge arrester. it can be installed in a variety of installations including service entrance, branch panels and control panel environments. It is connected to electrical distribution network. Its surge arrester class type is type 1. The Imax maximum discharge current is 75kA. It can be associated with a 30A and C curve tripping circuit breaker. The Uc maximum continuous operating voltage is 275VAC in common mode (L/N). The In nominal discharge current is 20kA (L/PE). The Up maximum voltage protection level is 900V (L/N) and 1800V (L/L). It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The degree of protection is NEMA 1. The operating temperature is -25.C to 60.C. The storage temperature is -40.C to 85.C. This product complies with UL 1449 standard.

Technical Information

Mounting Type
Clip-On
Net Weight
340 g
Nominal Discharge Current
20 kA
Standard
UL 1449:ed. 4
Storage Temperature
-40-85 degrees C
Strip Length
10 mm

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606485010789
Color
Gray RAL 7035)
GTiN
03606485010786
Product UPC
60648501078
Weight
340 g

Dimensions

Depth
71.4 mm
Height
91.7 mm
Width
35 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Spare Part Products
  • M9LC275
