Appleton 32SW4 CMP SS SERRATED WASHER

Manufacturer: Appleton Electric | Catalog # 32SW4 | Cooper Electric Part # 1757650
$13.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Appleton™ Cable Gland accessories and tools are an assortment of locknuts, earth tags, washers, thread seals and clamps that can be used with Appleton's cable glands.

Technical Information

Material
Brass

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381126137
GTiN
00781381126137
Product UPC
78138112613
Features

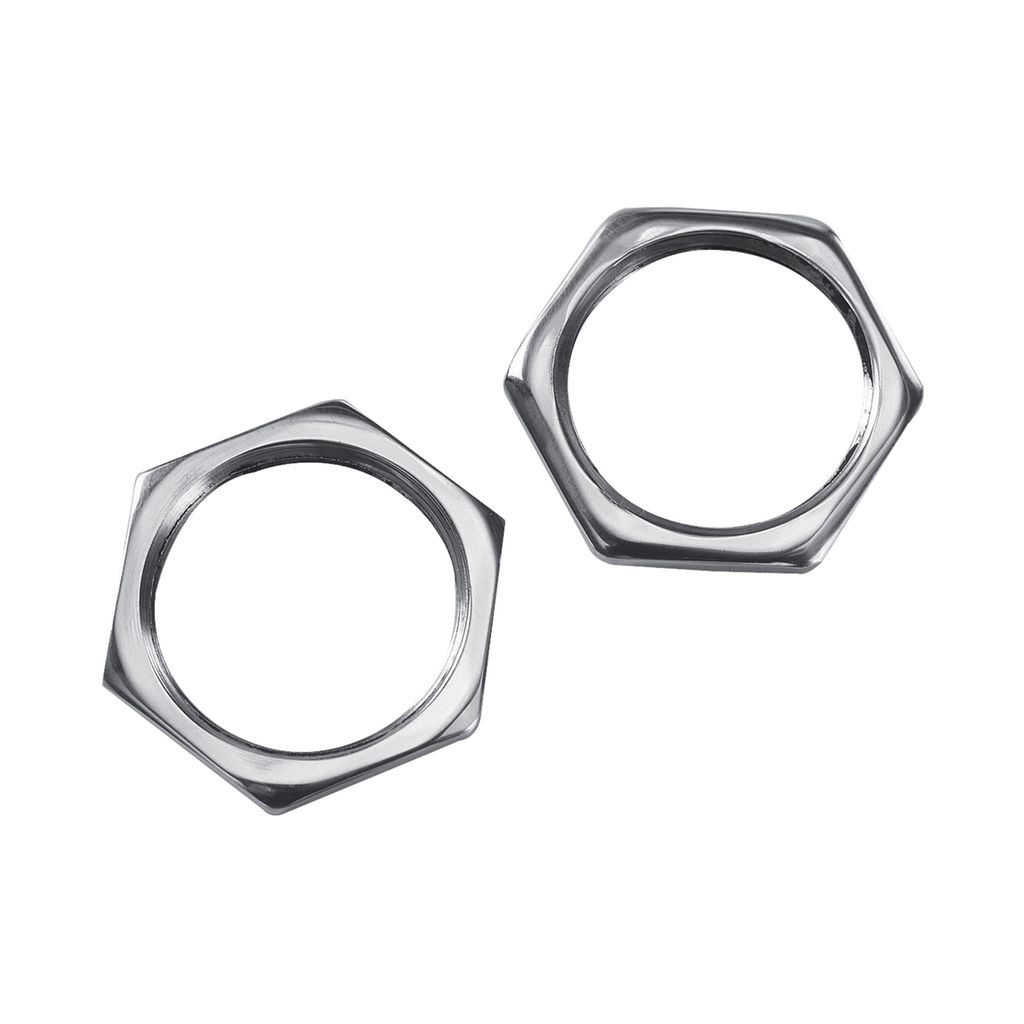

  • Locknuts are recommended for use in securing brass cable glands to a gland plate or into equipment

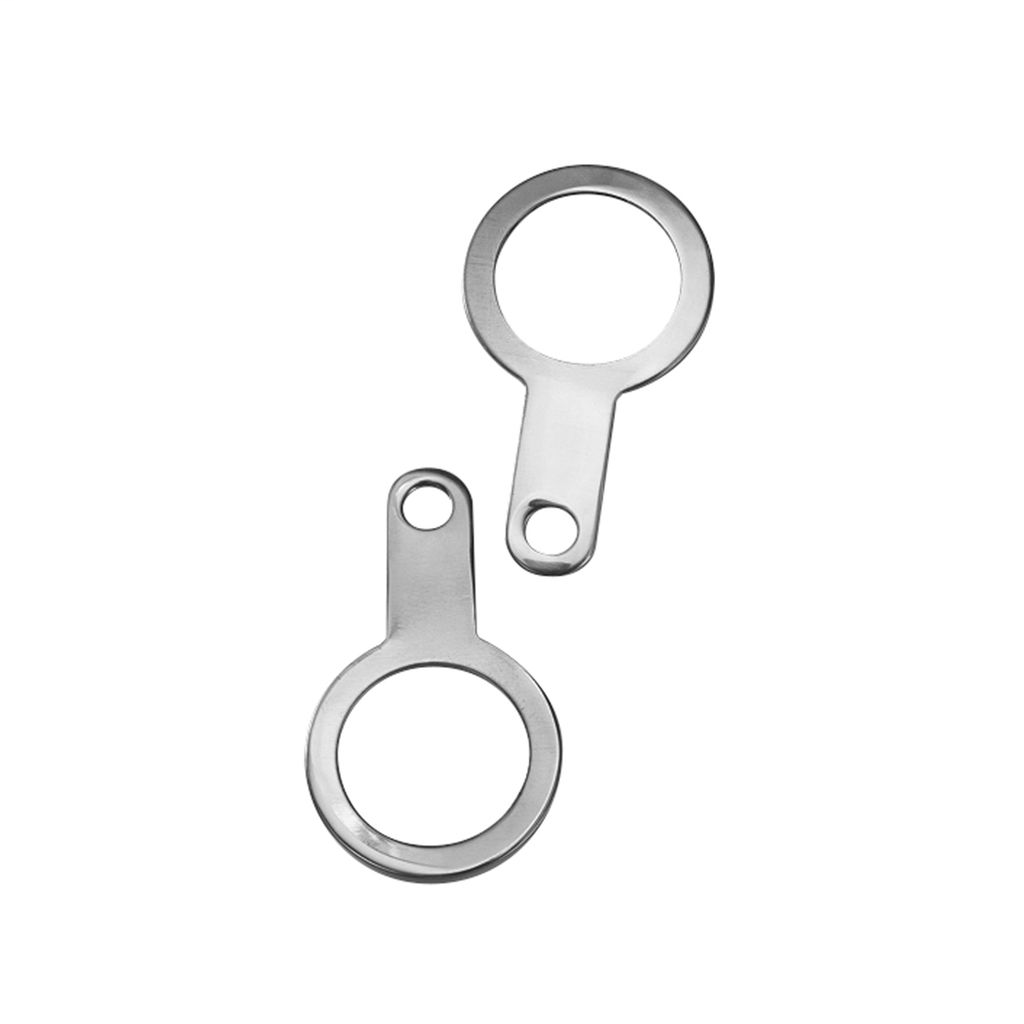

  • Earth tags (pear) are installed between the cable gland and equipment. Provide an earth bond connection as specified in BS 6121: Part 5: 1993

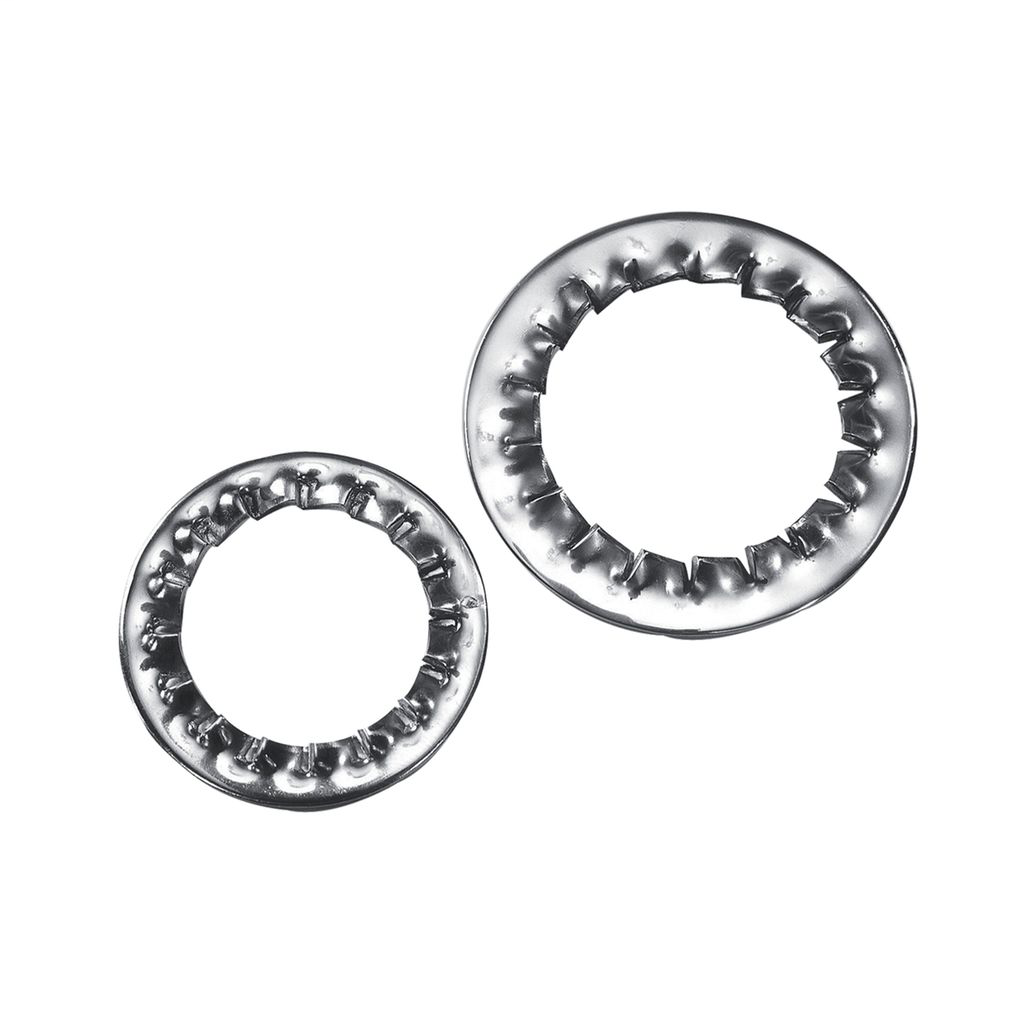

  • Serrated washers are available in plated steel or stainless steel as standard, these #8221;shake-proof#8221; serrated washers fitted internally to the equipment and before a locknut act as an anti-vibration device to prevent the gland and locknut loosening
  • Entry thread sealing washers provide entry thread seals. Not all equipment with tapped entry holes may not require a sealing washer to maintain the rated integrity of the installation
  • It is essential to maintain the integrity of the degree of IP protection for which explosionproof equipment have been rated. The need for a sealing washer will depend on the IP rating, code of protection and the type of entry holes.
  • Ex e apparatus or terminal boxes which are permitted to have untapped through clearance holes it is necessary to fit a sealing washer to ensure that the minimum IP54 requirement is met

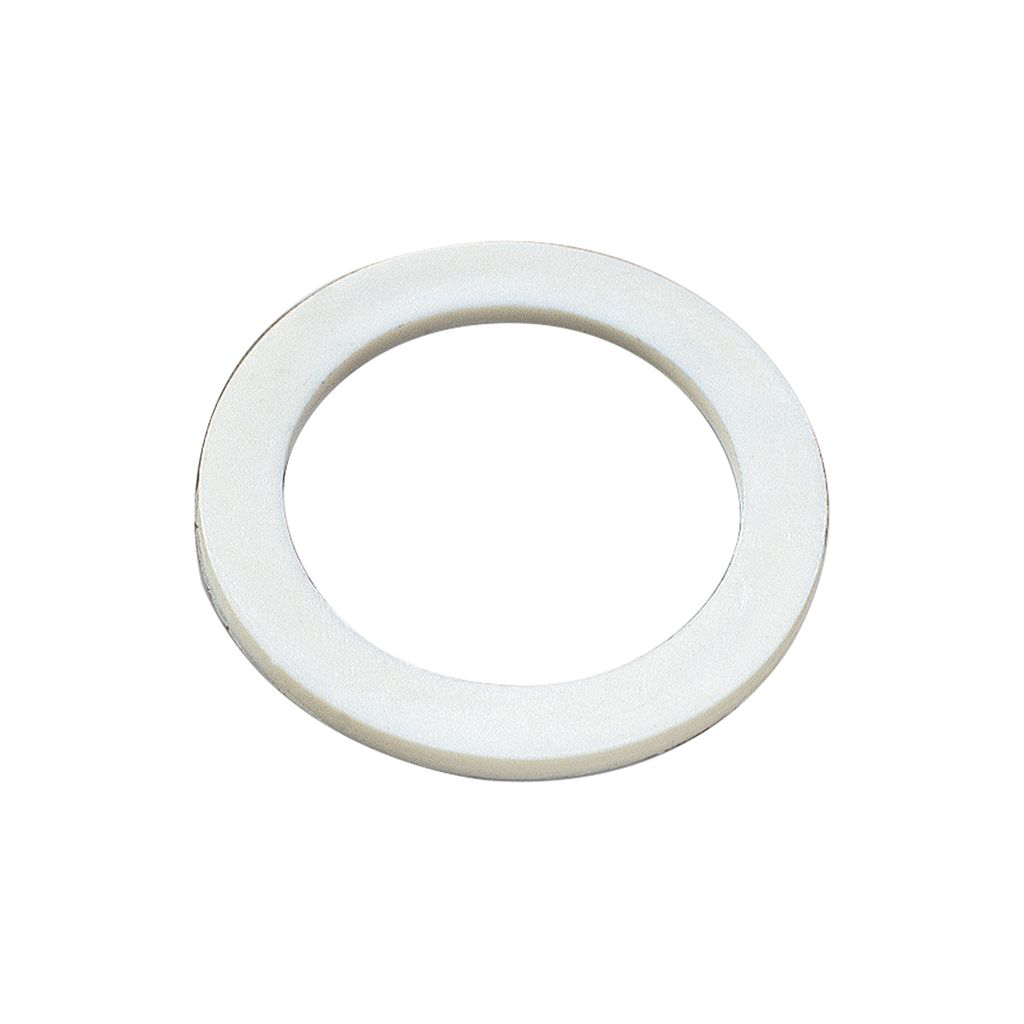

  • Entry thread sealing washers are produced in 2mm thick white nylon as standard which are recommended and meet the specified requirements of Shell's Offshore operations
  • To verify the effectiveness of the nylon entry sealing washers, independent 3rd party tests to BS EN 60529:1992 have been conducted on certain cable gland types at IP66, IP67 and IP68 levels of protection.

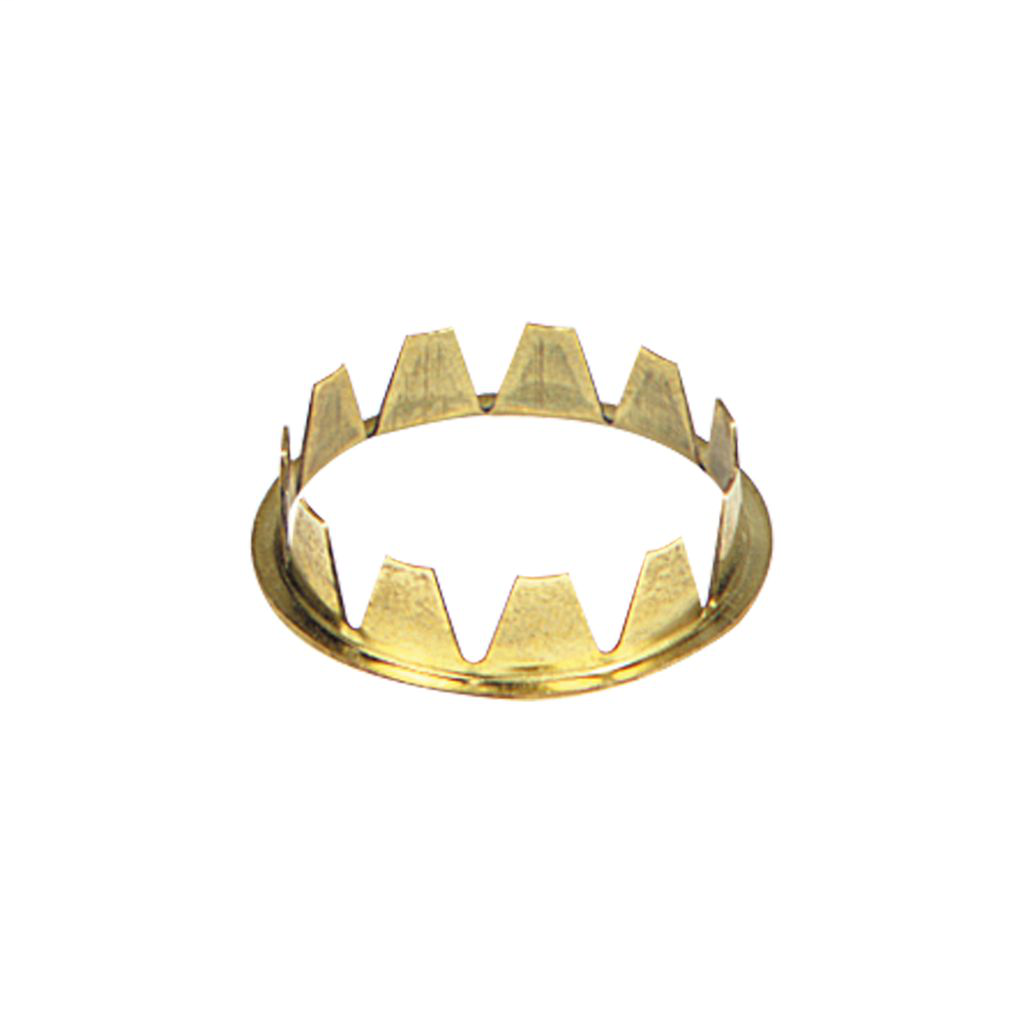

  • Lead star camps are for E2FX and E2FW cable glands lead sheath continuity
