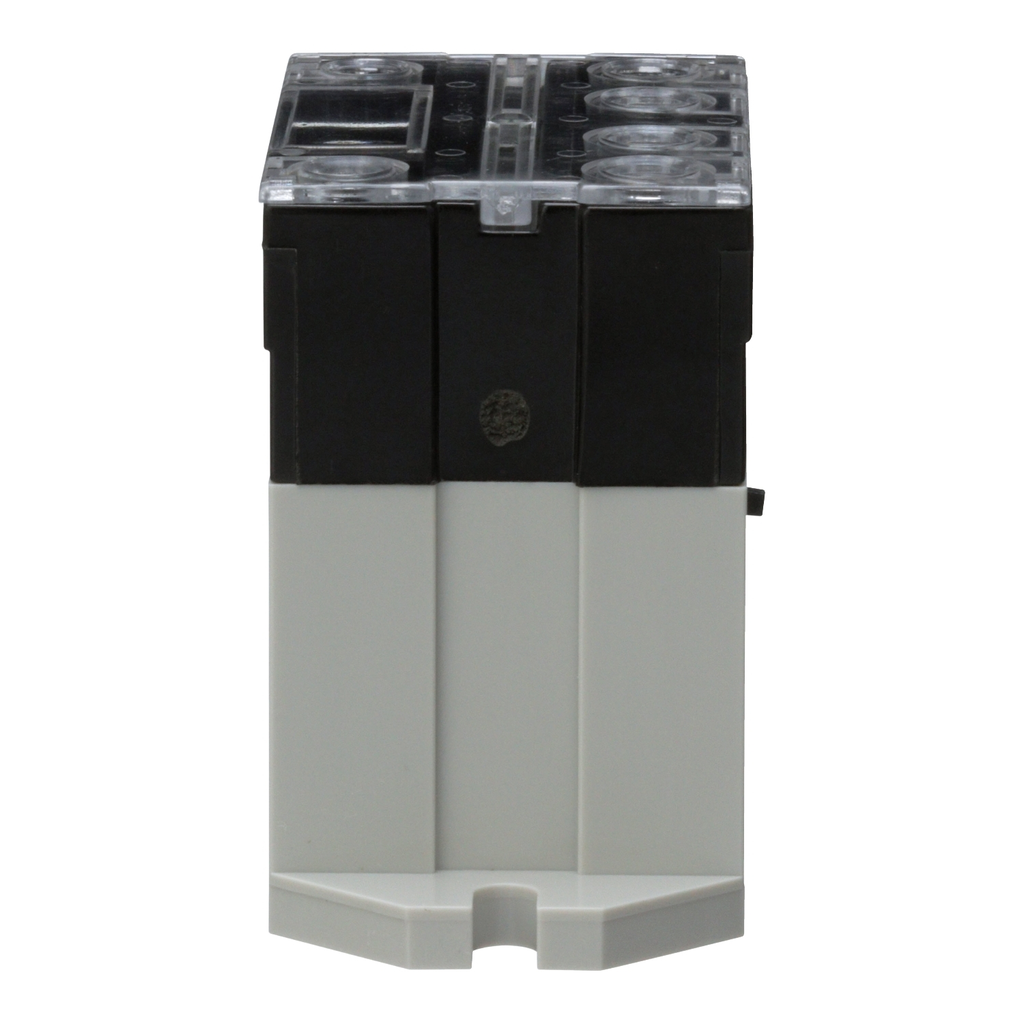

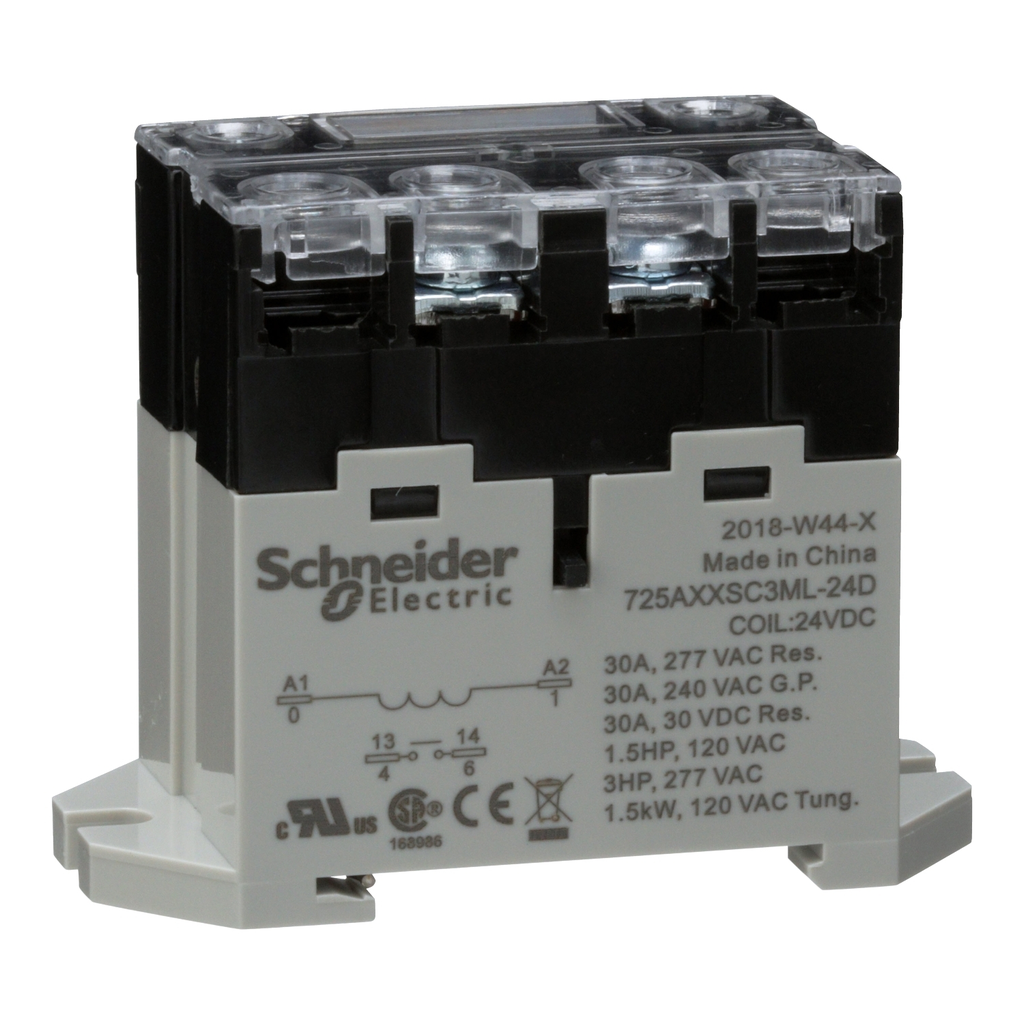

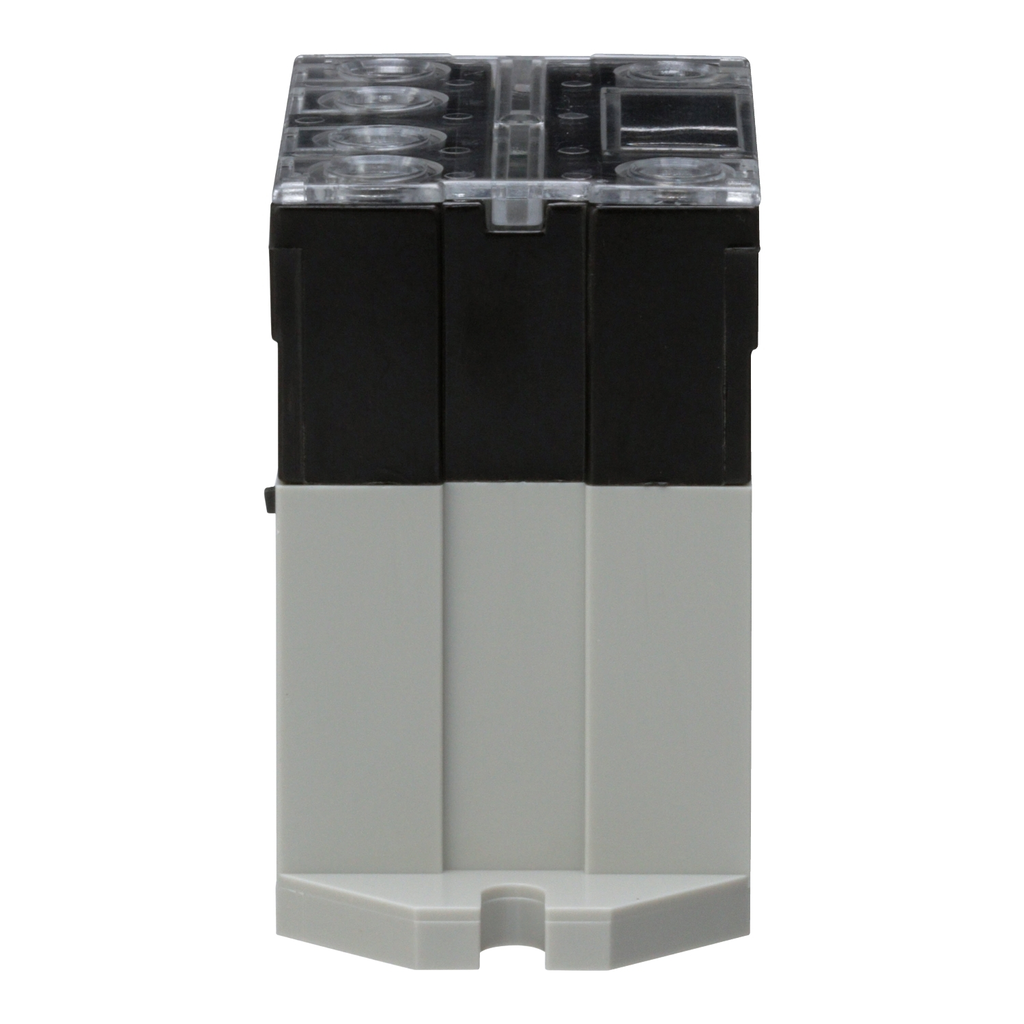

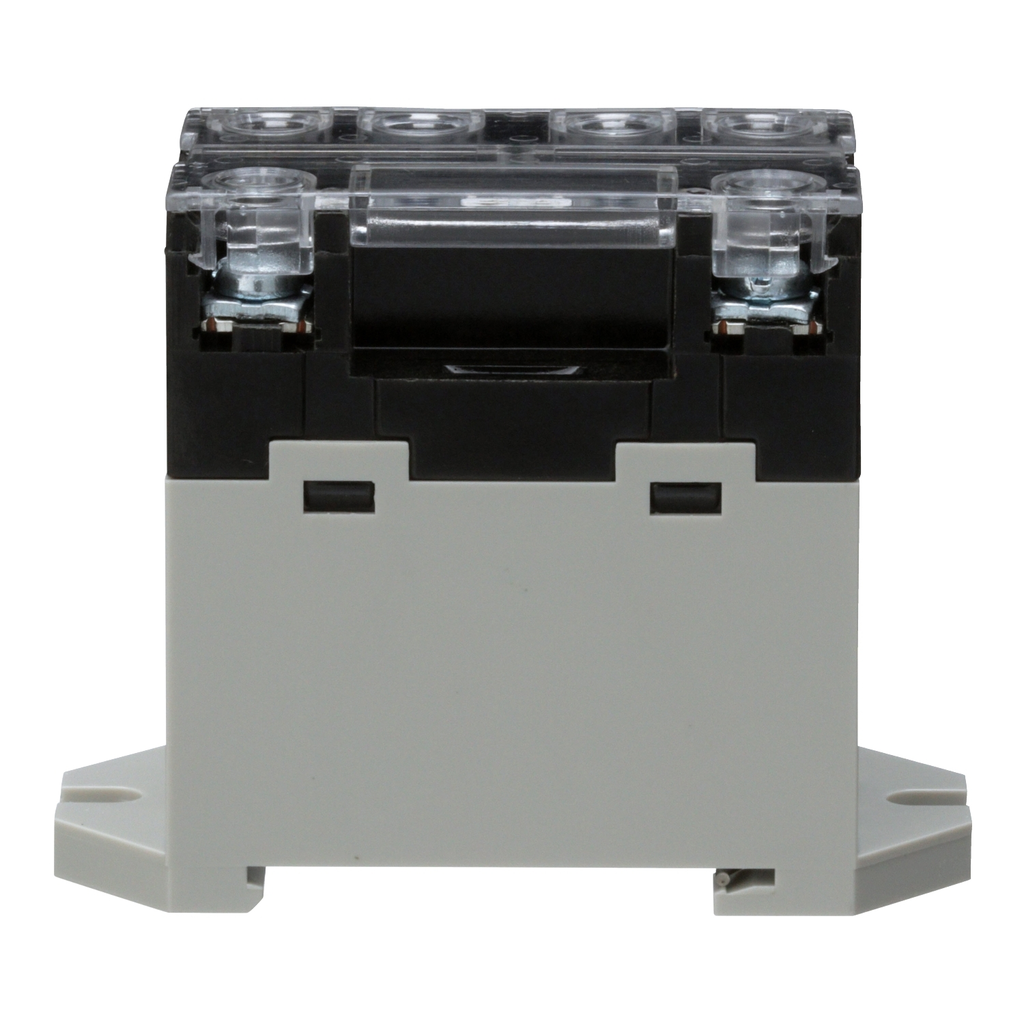

SQD 725AXXSC3ML-24D Power relay, SE

Manufacturer: Square-D / Schneider | Catalog # 725AXXSC3ML24D | Cooper Electric Part # 1757225
$17.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with screw terminals supporting DIN rail or Panel mounting. It.s a 30A 1 NO contact configuration mechanical relay with nominal coil voltage of 24Vdc and coil resistance of 300?. The touch-proof covers on screw terminals provides IP20 degree of protection. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.

Technical Information

Contact Material
Silver Alloy
Dielectric Strength
4000 V
Impedance
2 MOhm
Input Voltage
...26.4 V
Line Rated Current
30 A
Net Weight
120 g
Operating Temperature
-20-55 degrees C
Rated Power
1.5 kW
Short Circuit Current
3 kA
Short Circuit Current Ratng
3 kA
Standard
IEC 60947-1,UL 60947-4-1A
Storage Temperature
-55-100 degrees C
Strip Length
8 mm

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901163077
GTiN
03606480278877
Product UPC
78590116307
Weight
120 g

Dimensions

Depth
53.9 mm
Height
67.7 mm
Length
8 mm
Width
34.9 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 16-700DIN
  • 16-DCLIP-1
