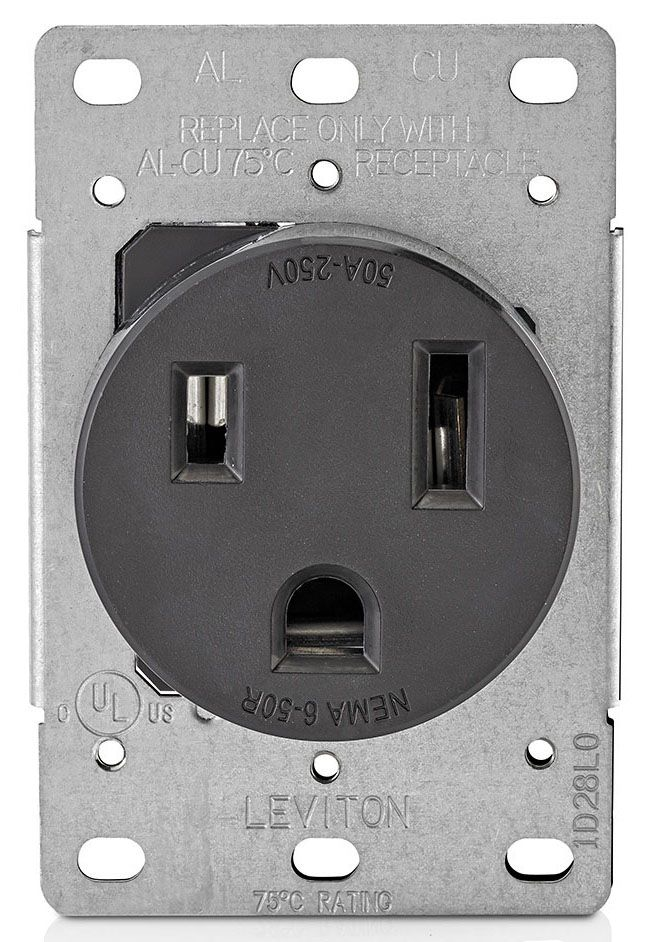

Product image for Leviton 5374 250 Volt 50 Amp 2-Pole 3-Wire NEMA 6-50R 3 Hp Black Nylon Grounding Flush Mount Straight Blade Receptacle
Image thumbnail 0

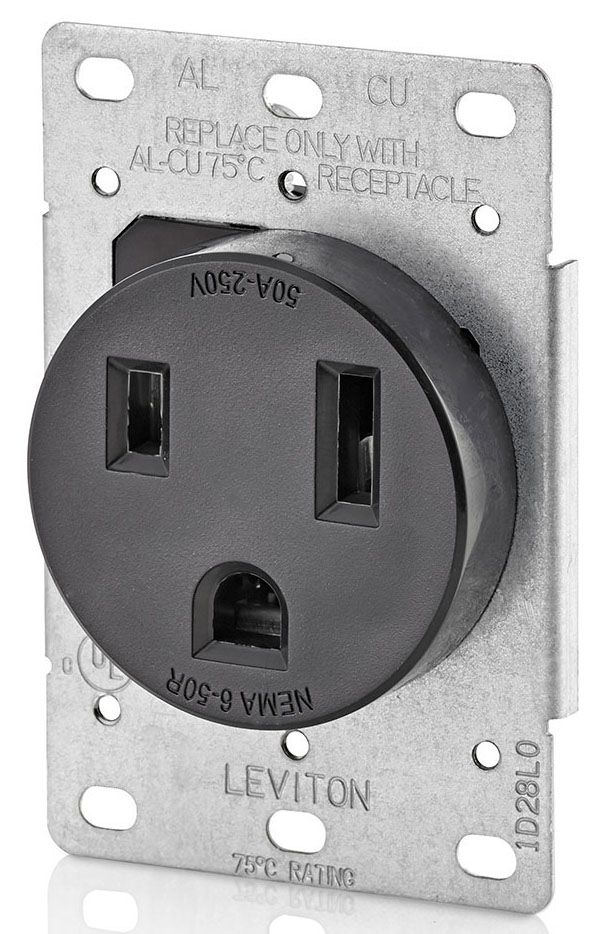

Image thumbnail 1
Email

Leviton 5374 250 Volt 50 Amp 2-Pole 3-Wire NEMA 6-50R 3 Hp Black Nylon Grounding Flush Mount Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 5374 | Cooper Electric Part # 1757
$2,674.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Leviton's line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Technical Information

Amperage
50 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
8-4 AWG
Connection Type
Side Wired
Contact Material
Brass
Contact Type
Double-Wipe
Current
50 Amp
Device Type
Power Device
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Flush
NEMA
6-50R,WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Size
3.70 H x 2.25 W x 2.22 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
150 %
Terminal Size
4 AWG
Type
Power Receptacle
Voltage
250 Volt
Wire Count
3
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477823545
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477823545
Product UPC
07847782354

Dimensions

Warranty Length
10 yr
Additional Information
  • Power Rating 3 HP
  • Wire Size up to 4 AWG
  • Strap Material Galvanized Steel
  • Face Material Nylon
  • Operating Temperature Rating -40 to 60 Deg C
  • Application Industrial, School, Hospital and Commercial Office Building
  • Applicable Standard ANSI C73, UL 94 V-2, NOM 057, NEMA WD-6
Features
  • Built of Durable Thermoplastic
  • Heavy Gauge, Double-Wipe Copper Alloy Contacts
  • Easy to Wire Terminals Accept up to #4 Awg Conductors
  • Terminals Marked for Easy Identification and Fast Wiring
  • Flush Mount Devices Fit 2-Gang Outlet Box
