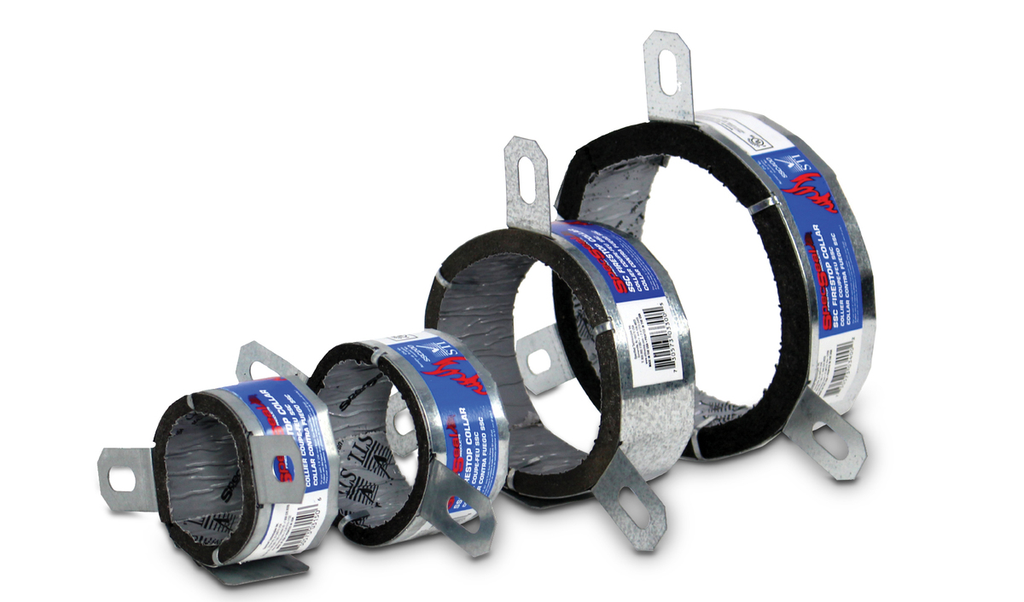

Product image for STI SSC800 FIRESTOP COLLAR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

STI SSC800 FIRESTOP COLLAR

Manufacturer: Specified Technologies Inc | Catalog # SSC800 | Cooper Electric Part # 1755603
$403.54/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SpecSeal SSC Firestop Collars are factory-manufactured firestop devices sized to plastic pipes of up to 6 in. Trade Size. SSC Collars consist of a restraining collar with a factory applied intumescent ensuring the correct amount of material is applied every time. Under fire exposure, SSC Collars quickly expand and collapse combustible piping forming a dense char, resisting the passage of smoke and flame.

Technical Information

Material
Galvanized Steel,Intumescent
Type
Firestop Collar

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573038000
Color
Silver
Product UPC
73057303800
Weight
2.25 lb

Dimensions

Height
2 Inch
Length
9-3/4 Inch
Width
9.75 in

Certifications and Compliance

Country of Origin
USA
Properties
  • Finished Product
  • Intumescent
  • Low VOC
  • No Expiration
  • Permanent
Features
  • The firestop system shall be a factory assembled firestop collar utilizing a molded, flexible intumescent insert. The intumescent insert shall provide a minimum of 30x free expansion and shall contain no water soluble expansion ingredients. The specified material shall be approved for a wide range of applications including PVC, PVC Foam Core (ccPVC), CPVC, RNC, PP, FRPP, FRP, HDPE, PE, PVDF, ABS, ABS Foam Core (ccABS) and XFR 15-50 PVC when used by itself or in combination with other products from the same manufacturer. The collar shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115 at 50 PA (0.20 in of water)
  • Installs quickly and eliminates waste., Sized for 1-1/2 in., 2 in., 3 in., 4 in., 6 in. Trade Size Combustible Pipes., Tested to CAN/ULC-S115 at 50 PA (0.20 in. water).
  • Sized for 1-1/2\", 2\", 3\", 4\", 6\" Trade Size Combustible Pipes
  • Installs quickly and eliminates waste
  • Tested to CAN/ULC-S115 at 50 PA (0.20 in. water)
  • Rapid expansion - closes off burning pipes quickly
  • Small profile - use it in all the tight spots
  • Flexible & durable - no loose flakes (eye hazards)
  • Water resistant - no water soluble or hygroscopic ingredients
  • Economical - lower installed cost
  • High volume char - expands up to 60 times
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: No
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Construction Type
  • SpecSeal Series SCC Collars are suitable for use in all common constructions including concrete floors, concrete over steel deck, concrete walls, concrete block walls, gypsum board walls, as well as wood floor assemblies
Applications
  • Plastic Pipe
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use
  • SpecSeal Series SSC Collars are used to protect a variety of plastic pipes including PVC, PVC Foam Core (ccPVC), CPVC, RNC, PP, FRPP, FRP, HDPE, PE, PVDF, ABS, ABS Foam Core (ccABS) and XFR 15-50 PVC in both vented (DWV) and closed (electrical conduit and water supply) installations.
