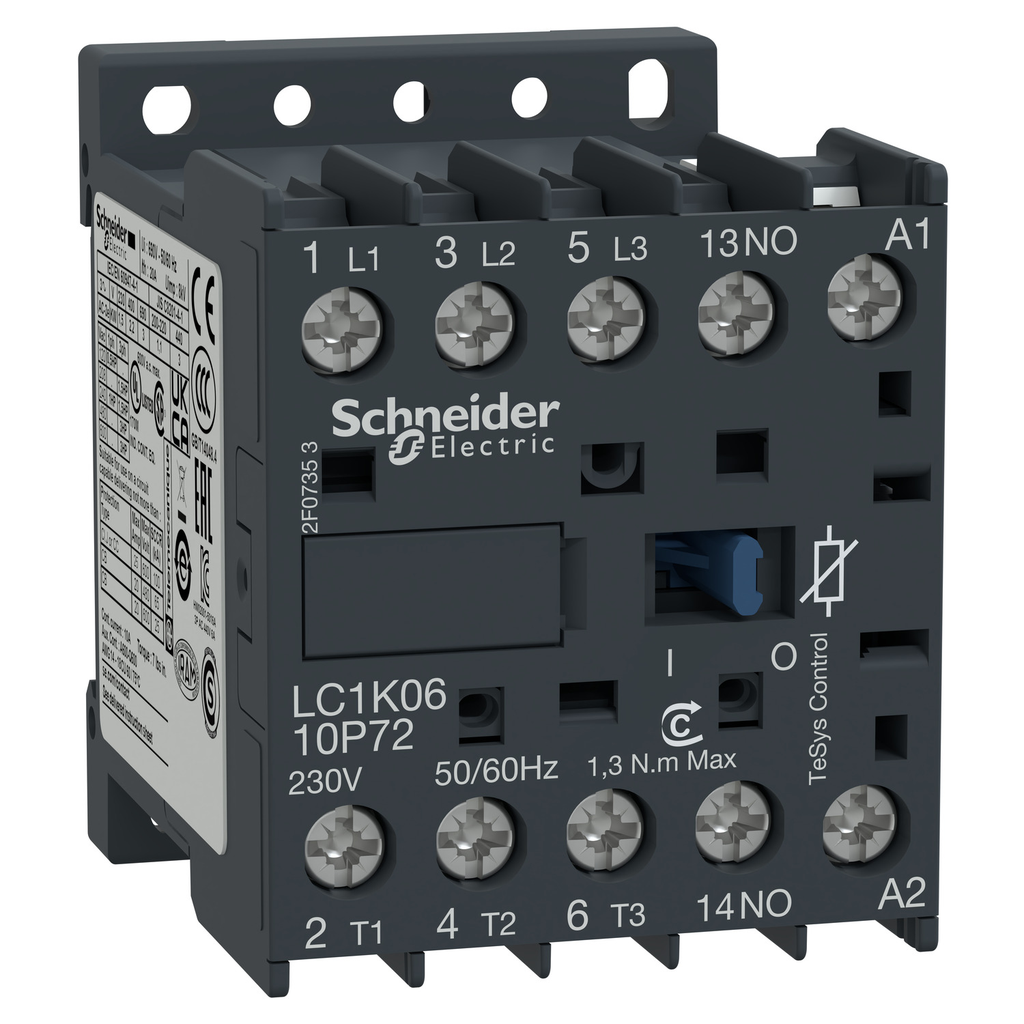

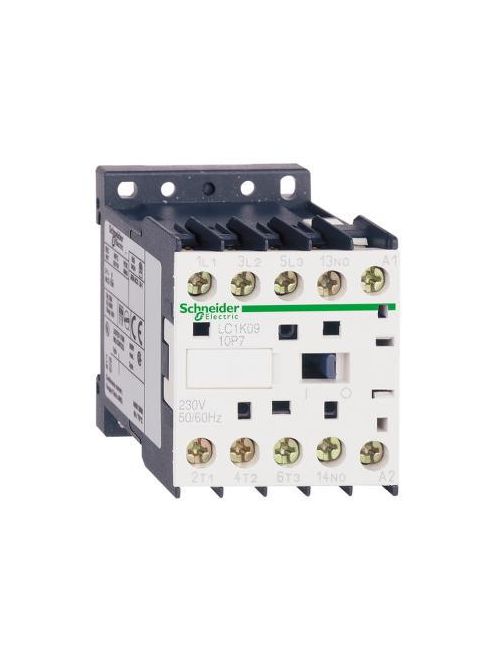

Square D LC1K0610F72 IEC CONTACT 3HP 6A 575VAC

Manufacturer: Square-D / Schneider | Catalog # LC1K0610F72 | Cooper Electric Part # 1751700
$69.57 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
Motor control
Coil Voltage
110@50/60Hz VAC
Contact Configuration
1 NO,3 NO
Impedance
3 MOhm - Ith 20 A 50 Hz For Power Circuit
Net Weight
0.18 kg
Operating Cycles
3600 cyc/h
Range
TeSys
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-4-1,GB/T 14048.4,JIS C8201-4-1,UL 60947-4-1
Storage Temperature
-50-80 degrees C
Type
Contactor;LC1K
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901954309
GTiN
03389110487602
Product UPC
78590195430
Weight
0.18 kg

Dimensions

Depth
57 mm
Height
2.28 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB Scheme,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
France
Features
  • TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
  • The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications
  • One of the smallest contactor offerings in the market
  • The range delivers strong performance for its compact size and promises seamless integration in all applications.
  • Widely used for industry, infrastructure and building applications
  • Designed for simple control systems
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • LA9D90
