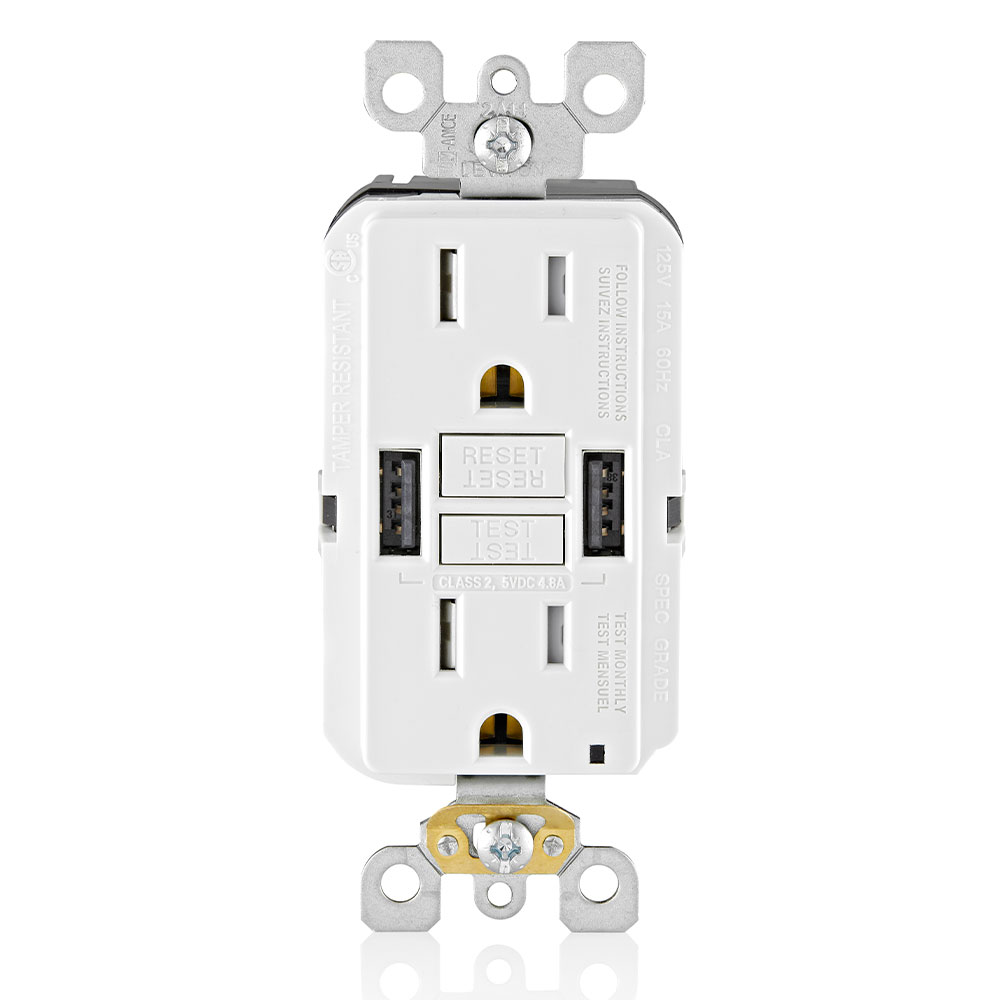

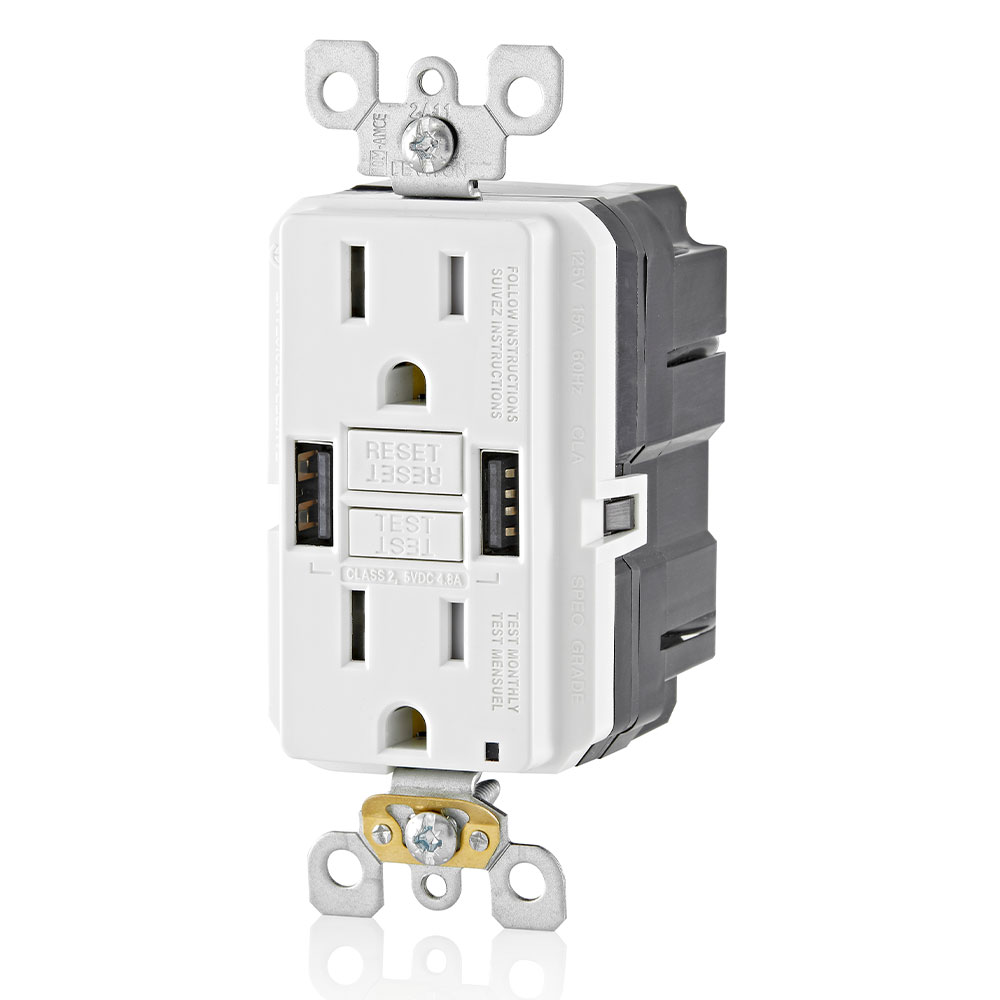

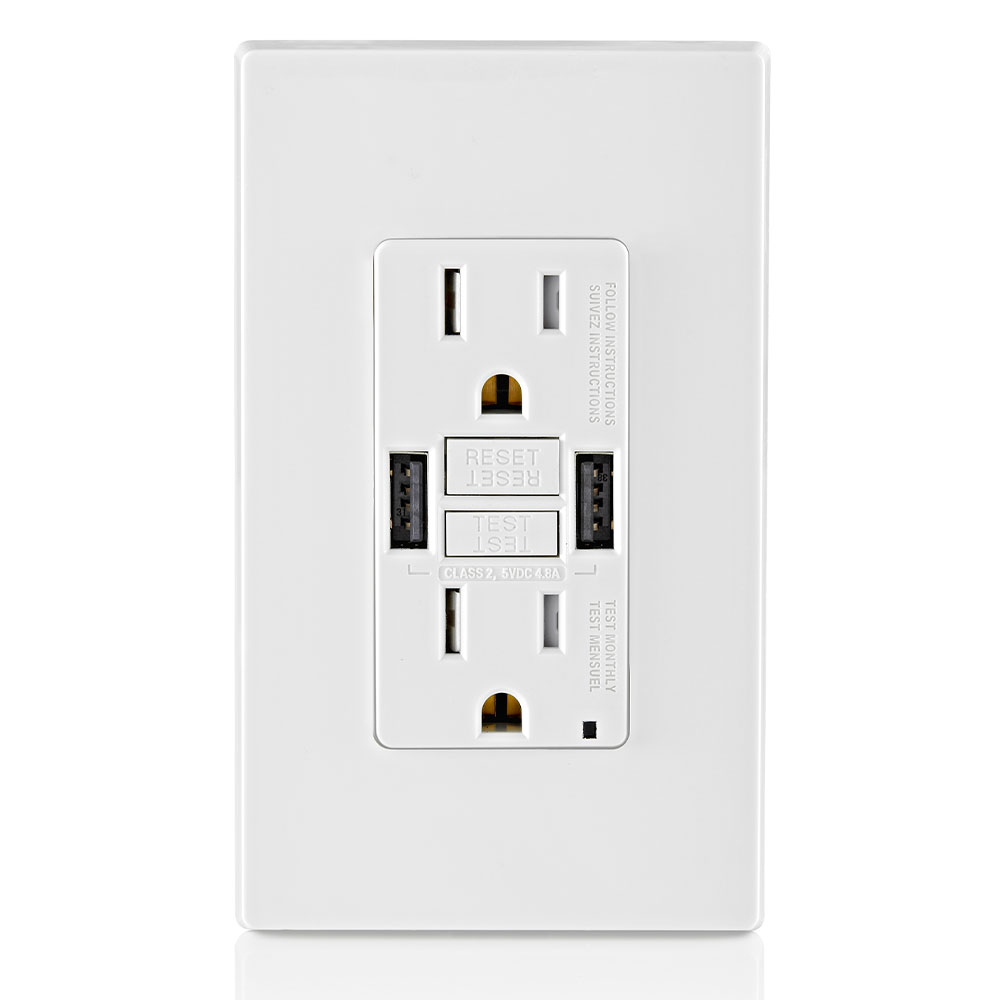

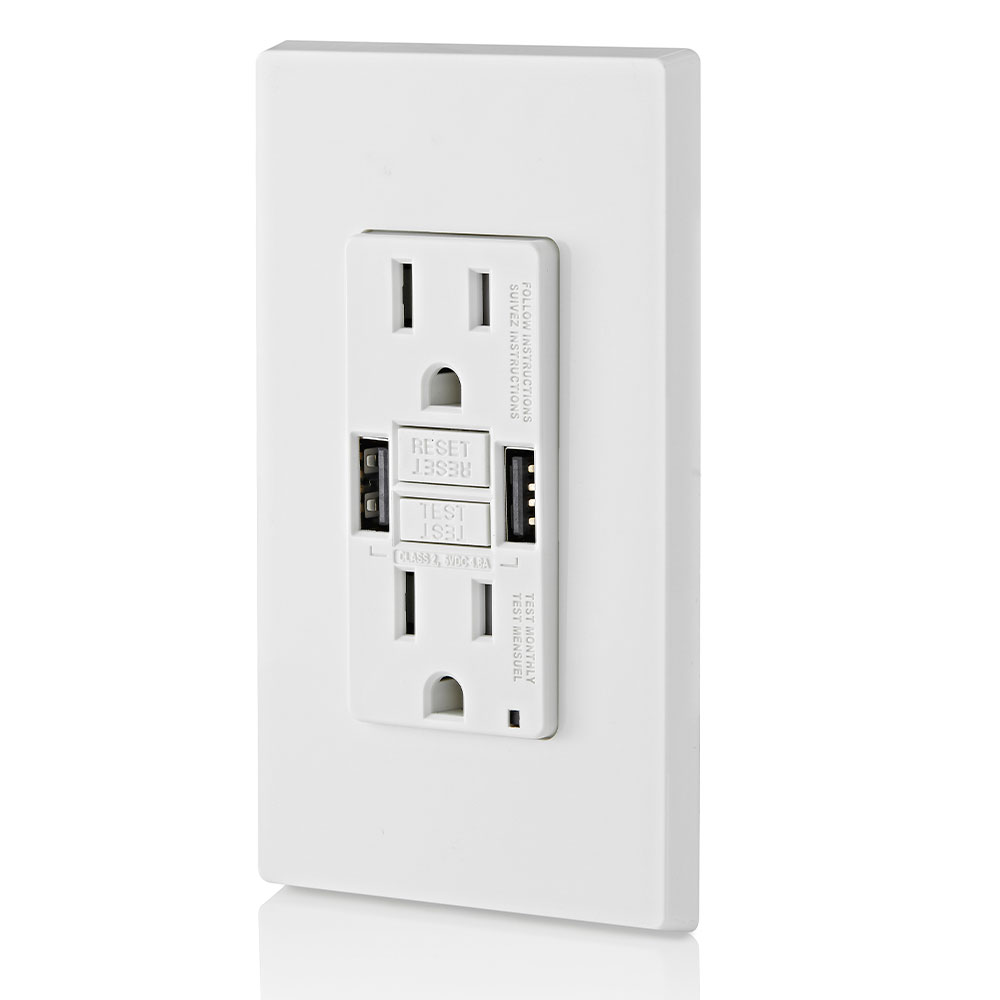

LEV GUSB1-W GFCI COMBO USB CHARGER

Manufacturer: Leviton Mfg Co | Catalog # GUSB1-W | Cooper Electric Part # 1751625
$65.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, SmartlockPro® Self-Test GFCI Combination Type A USB In-Wall Charger, Wire Leads, NEMA 5-15R, 24W (4.8 Amps), Dual Type-A/A USB Chargers, screws and self-grounding clip included - White

Technical Information

Amperage
15 Amp
Body Material
Thermoplastic
Conductor Size
12 AWG
Dielectric
1250 V
Face Material
Thermoplastic
Flamability Class
UL94, 5VA
Grade
Commercial,Residential
Grounding
Self-Grounding
Material
Thermoplastic/Galvanized Steel Strap
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
5 Wire
Operating Temperature
-10 degrees C
Outlet Type
Tamper Resistant
Switch Type
Combination
Temperature Rating
-10 to 40 degrees C
Temperature Rise
150 %
Termination Type
Wire Leads
Torque
14 lb-in
Type
GFCI/USB Combo, Type A
Voltage
125 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477999967
Color
White
GTiN
00078477999967
Product UPC
07847799996

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
NEMA
  • 5-15R
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • CA2730014
  • MX302458
  • MX308495
  • MX344697
  • US10483066
  • US7355117
  • US7697252
  • US7820909
  • US7868719
  • US8242362
  • US8587914
  • US9053886
  • US9276393
Features
  • SAFE - Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault
  • FAST CHARGING - Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
  • CODE REQUIRED - Fulfill NEC® requirements anywhere GFCI protection is needed
  • SIMPLE - Status indicator light provides simple, intuitive feedback
  • INSTALL - Requires extra deep wallbox for installation
