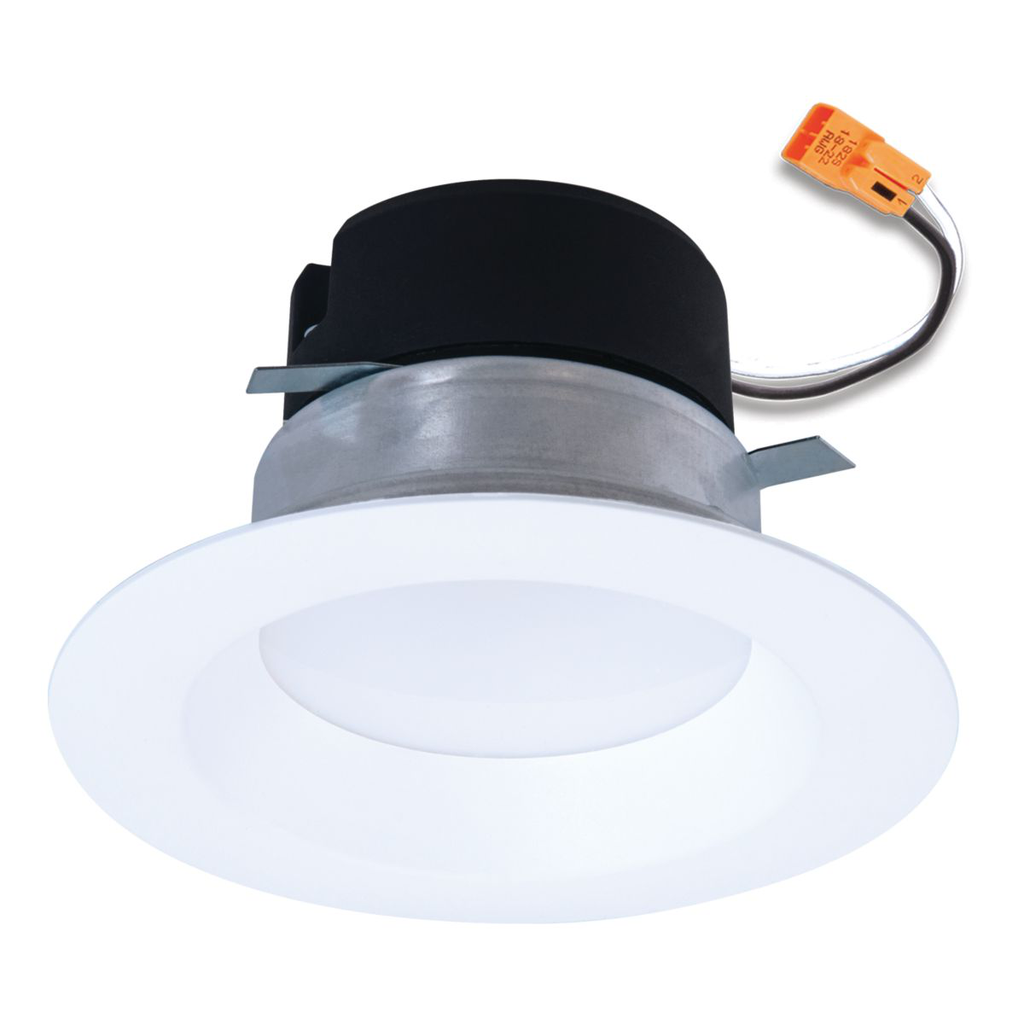

Product image for Halo LTSS4069FS351EWHWR 4-inch LED retrofit module, smooth splay, baffle trim,600 Lumens,90 CRI min, 3000K, 4000K, 5000K selectable CCT,120V,Recyclable, Matte White finish

Email

Halo LTSS4069FS351EWHWR 4-inch LED retrofit module, smooth splay, baffle trim,600 Lumens,90 CRI min, 3000K, 4000K, 5000K selectable CCT,120V,Recyclable, Matte White finish

Manufacturer: Cooper Lighting | Catalog # LTSS4069FS351EWHWR | Cooper Electric Part # 1751620

$11.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
The Halo LT4 Smooth Splay combines the energy savings, long life and sustainability of LED in an easy to install retrofit baffle trim kit. The field selectable 3 CCT color temperatures let you custmoize your lighting. Friction blades hold the trim tight to ceiling, use in new construction, remodeler and retrofit installation in Halo and other compatible 4 in. recessed housings. The diffuse lens provides shielding to the source and wet location listing, suitable for use in showers or in outdoor covered ceiling applications. Also conforms with NFPA requirements for closet use. Integral driver provides 120-Volt phase cut dimming, an inline connector provides power using a medium base socket adapter provided or connect directly to the mating connector in the LED housings. Ships with a gasket and makes any housing airtight for added energy savings and code compliance.

Technical Information

Applications
Lighting
Color Temperature
5000 K
Correlated Color Temp
5000 K
Lumens
600 Lumen
Mounting Type
Recessed
Type
LT4 Module
Wattage
6.97 Watt

Manufacturer Information

Brand
Cooper Lighting Solutions
Sub Brand
Market Pro

General Product Info

12-Digit UPC
080083162543
GTiN
00080083162543
Product UPC
08008316254
Weight
0.85 lb

Dimensions

Diameter
4 Inch
Height
5-3/4 Inch
Length
5-5/8 Inch
Width
3.5 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
China
Features
  • 5.625 IN Length 3.5 IN Width 5.75 IN Height
  • Available with smooth splay or baffle trim
  • Up to 665 delivered lumens
  • Achieving L70 at 35,000 hours in IC and non-IC applications
  • Plastic construction is impact resistant and non-corrosive
  • Retrofits into existing Halo 4 new construction or remodel housings
  • 3-color selectable CCT: 2700K, 3000K, 3500K or 3000K, 4000K, 5000K
  • 120V input, dimmable down to 10% with select phase cut dimmers
  • Dead front, air-tite, wet location listed, IC rated
  • Five-Year limited warranty
