SQUARED XXW54P3HPL01DM6 Ultrasonic

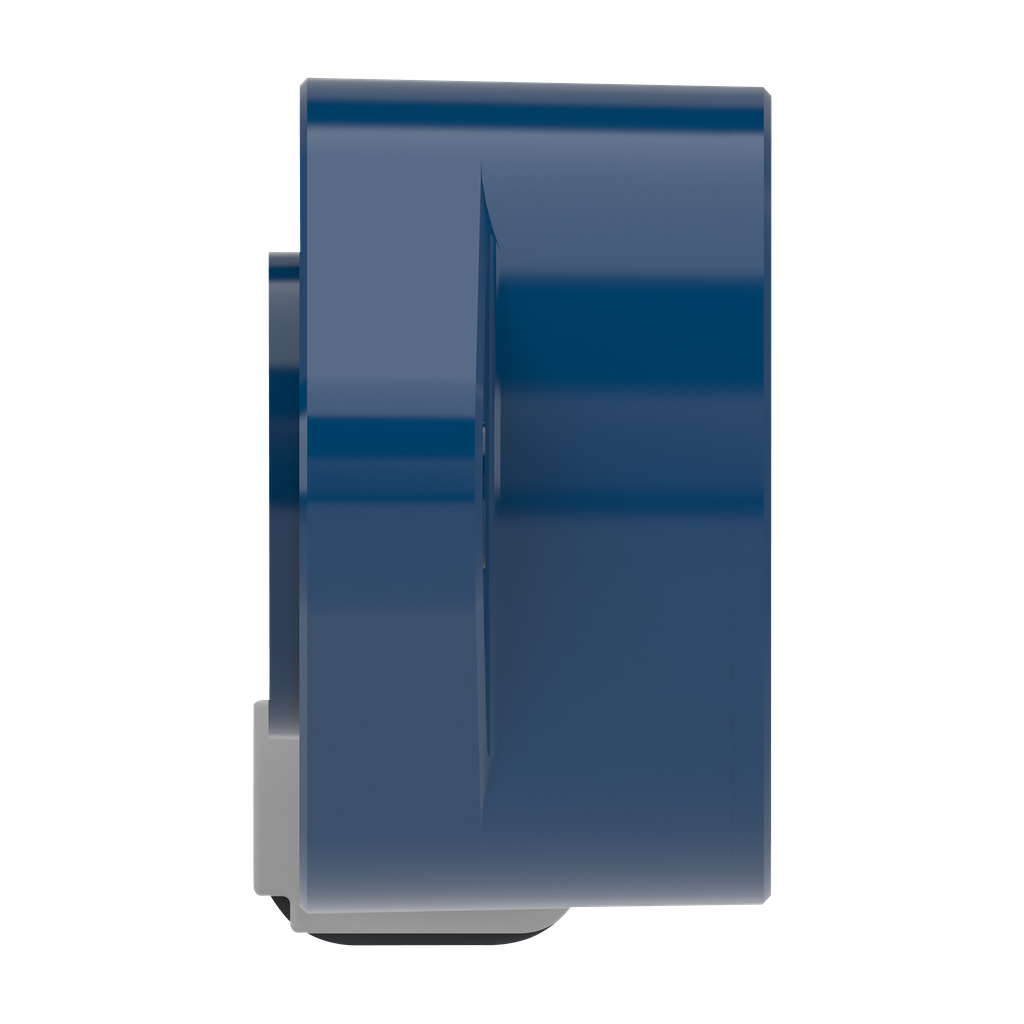

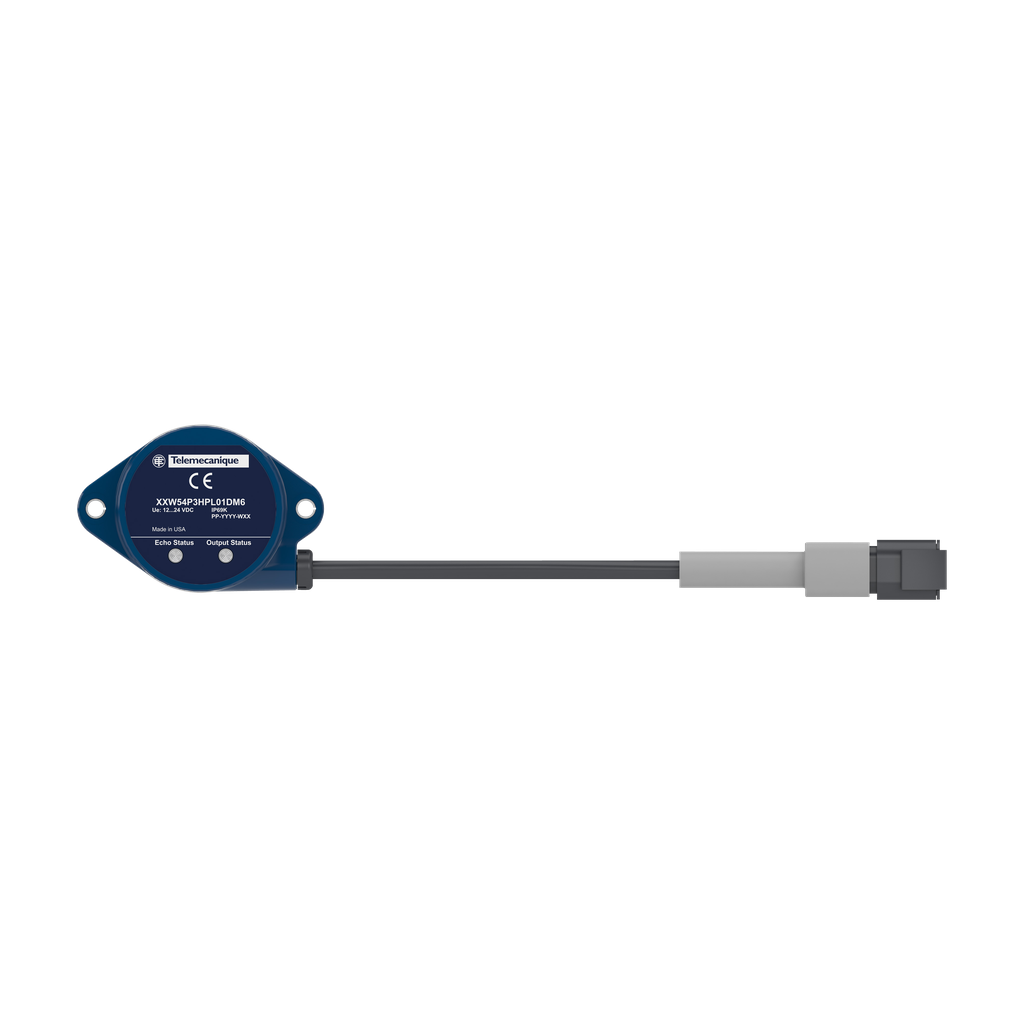

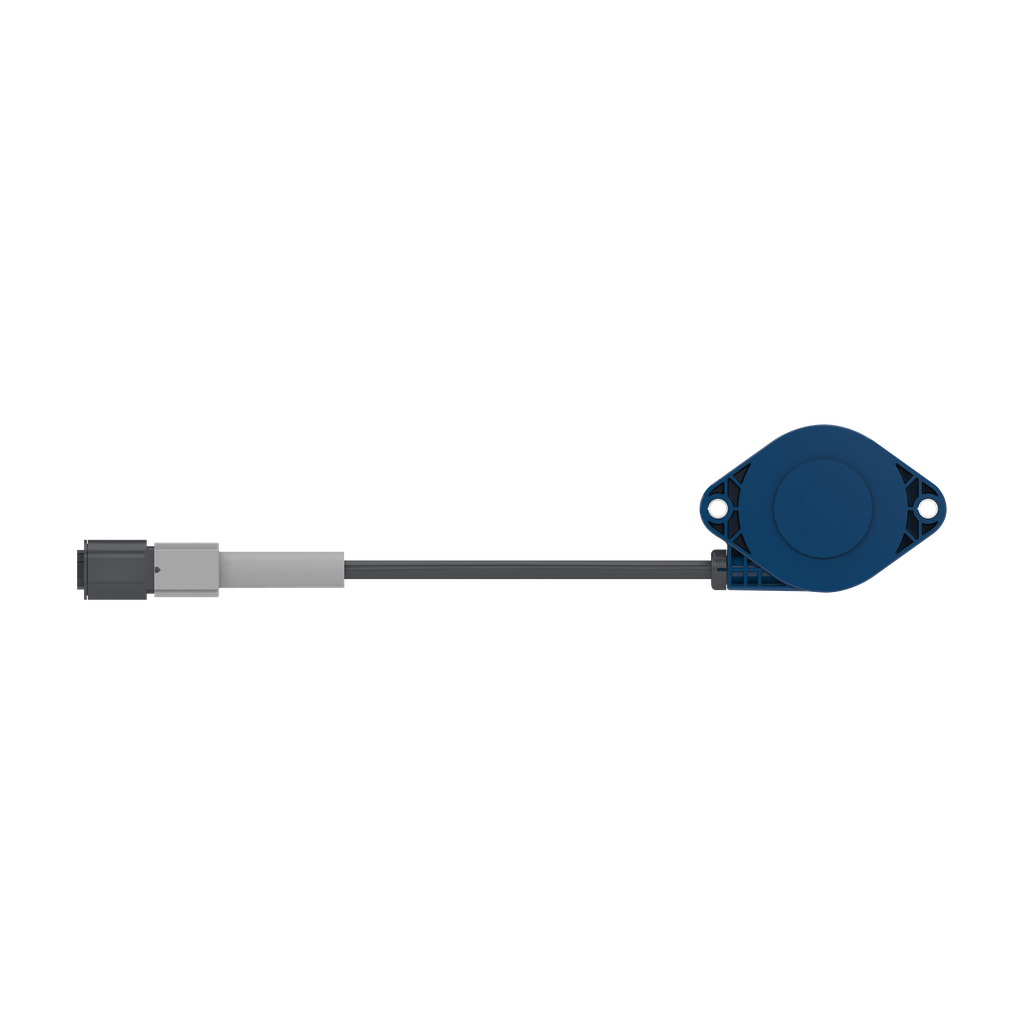

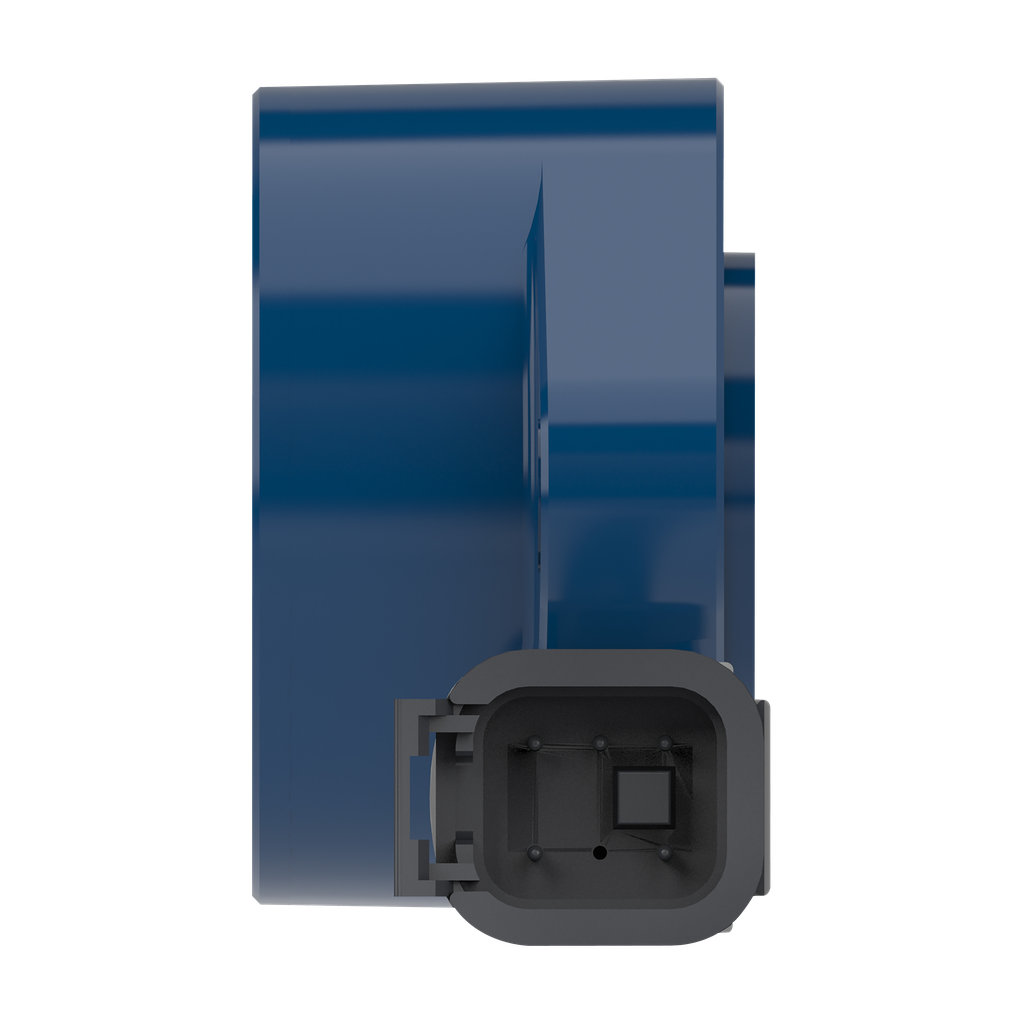

This product is part of the XX range, an offer of ultrasonic sensors that enable non-contact detection of objects in many kinds of industrial environments. Telemecanique Sensors has expanded its range of ultrasonic sensors with this XX Wide Beam offer, a wide angle solution to meet the specific needs of mobile equipment, like obstacle detection. This reference correspond to a diffuse mode sensor, with a 0.5V to 4.5V analog output and a PNP solid-state digital output. It features a 0.15m cable and remote Deutsch DTM04 , 6-pin connector. It is a wide angle ultrasonic sensor dedicated to mobile equipment. It is configurable by software and easy to program, with a sensing distance of 0.425m to 3m, adjustable up to 4m with the configuration software. This ultrasonic sensor is an IP69K product, on face and housing, suited to indoor or outdoor applications (-40°C to +70°C), as well as high pressure and high temperature washdown. It is an ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection. It is equipped with a noise detection function that is enabled by default. Its diameter 54mm casing is made of UV resistant plastic (PBT Valox). This sensor features a remote Deutsch DTM04 6 pin connector, on 0.15m Ø 6mm TPU cable. It weighs 0.115kg. This XX Wide Beam sensor, dedicated to obstacle detection, meets the specific needs of mobile equipment. It is designed to detect ceilings, beams, cables, scaffolding, other platforms or buckets when mobile equipment is lifting or rotating. This Wide Beam ultrasonic sensor conforms to CE, UKCA and E2 certifications, as well as EEN/IEC 60947-5-2, UL 60947-5-2 and CSA C22.2 n° 60947-5-2 standards. A configuration cable XXZKITDM6 can be purchased separately. It allows the connection between the XX Wide Beam sensor and a configuration interface. The XX configuration software makes these sensors easy to program. The sensor can easily be mounted on a flat surface, with 2 screws (4mm). It is supplied with 2 stainless steel inserts and 2 silicone washers. The screws are not provided The XX ultrasonic range perform contactless, reliable, and high-performance detection regardless of the target’s shape, texture, color, or transparency. They are capable of withstanding even the harshest industrial environments.
