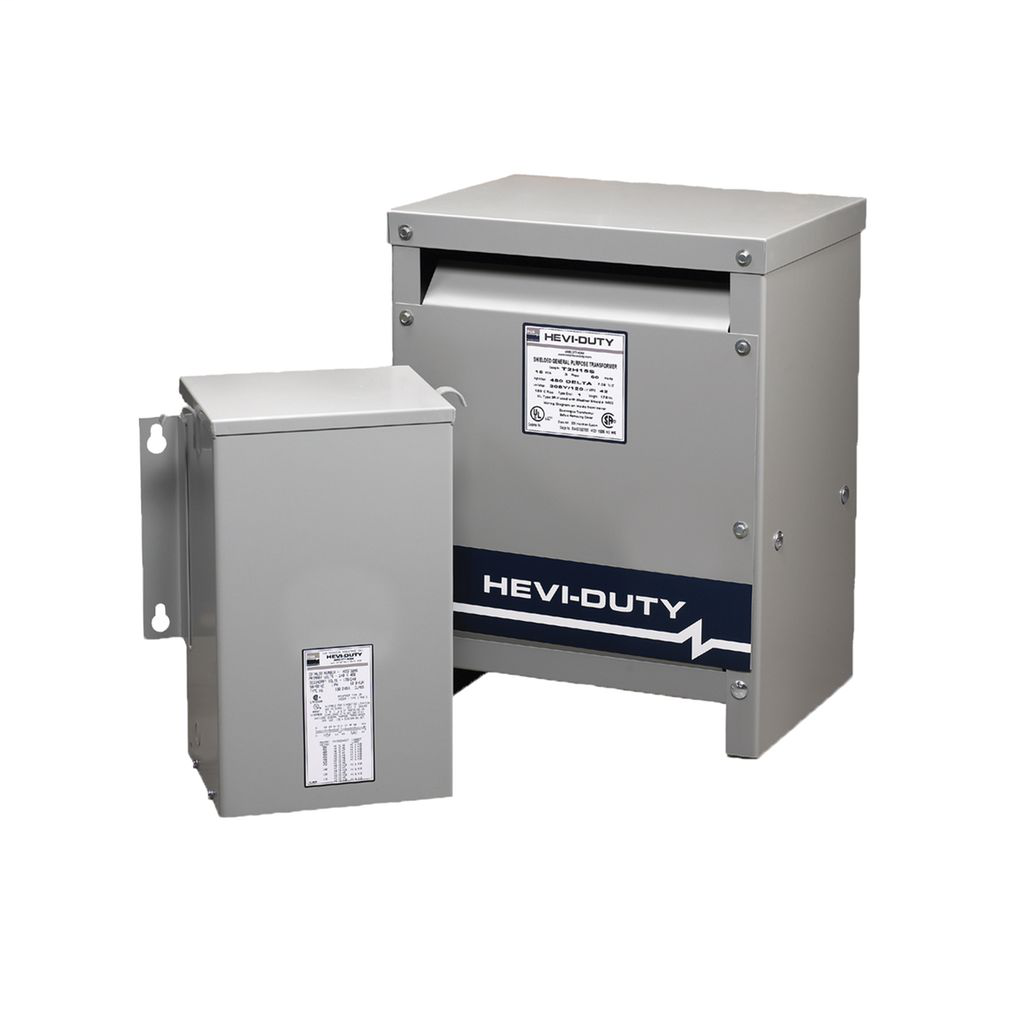

Product image for SHD DT651H118S 118KVA 460D-460Y SCR
Email

SHD DT651H118S 118KVA 460D-460Y SCR

Manufacturer: Sola Electric | Catalog # DT651H118S | Cooper Electric Part # 1748569
$12,830.92/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Product Brochure
Drive Isolation Transformers are designed for SCR (Silicon Control Rectifier) variable speed motor drive applications where a transformer is needed to magnetically isolate the incoming line from the motor drive. The transformer must also provide a voltage change to match the required voltage of the SCR Drive. Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits.

Technical Information

Applications
For SCR (Silicon Control Rectifier) variable speed motor drive applications
Enclosure
Nema 3R with weather shield
NEMA Size
3
Number of Phases
3 Phase
Primary Voltage
460 V
Secondary Voltage
460 Y/260 Secondary V
Type
Drive Isolation Transformer

Manufacturer Information

Brand
SolaHD

General Product Info

12-Digit UPC
783472401413
GTiN
00783472401413
Product UPC
78347240141

Dimensions

Height
34 Inch
Length
22 Inch
Width
28 in

Certifications and Compliance

Buy American Compliant
Y
Features
  • UL, cULus
  • Available from 7.5 thru 440 kVA, 3 Phase, 60 Hz
  • Isolation minimizes load disturbances caused by the SCR drive
  • UL Listed/NEMA Type 3R enclosures when used with optional weather shield
  • Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the National Electric Code
  • Shielding attenuates line to ground noise
