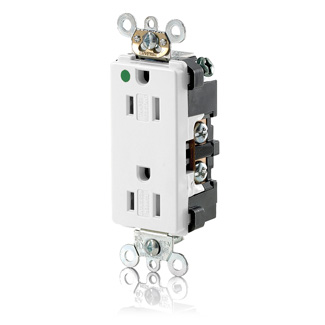

Product image for LEV 16262-SGW WH REC DEC DUP TR HG
Email

LEV 16262-SGW WH REC DEC DUP TR HG

Manufacturer: Leviton Mfg Co | Catalog # 16262-SGW | Cooper Electric Part # 1747344
$64.14/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Decora Plus Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Hospital
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Wallbox, Flush
NEMA
WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Outlet
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477772461
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Enamel Coated
GTiN
00078477772461
Product UPC
07847777246

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-15R
Color Variations
  • White
