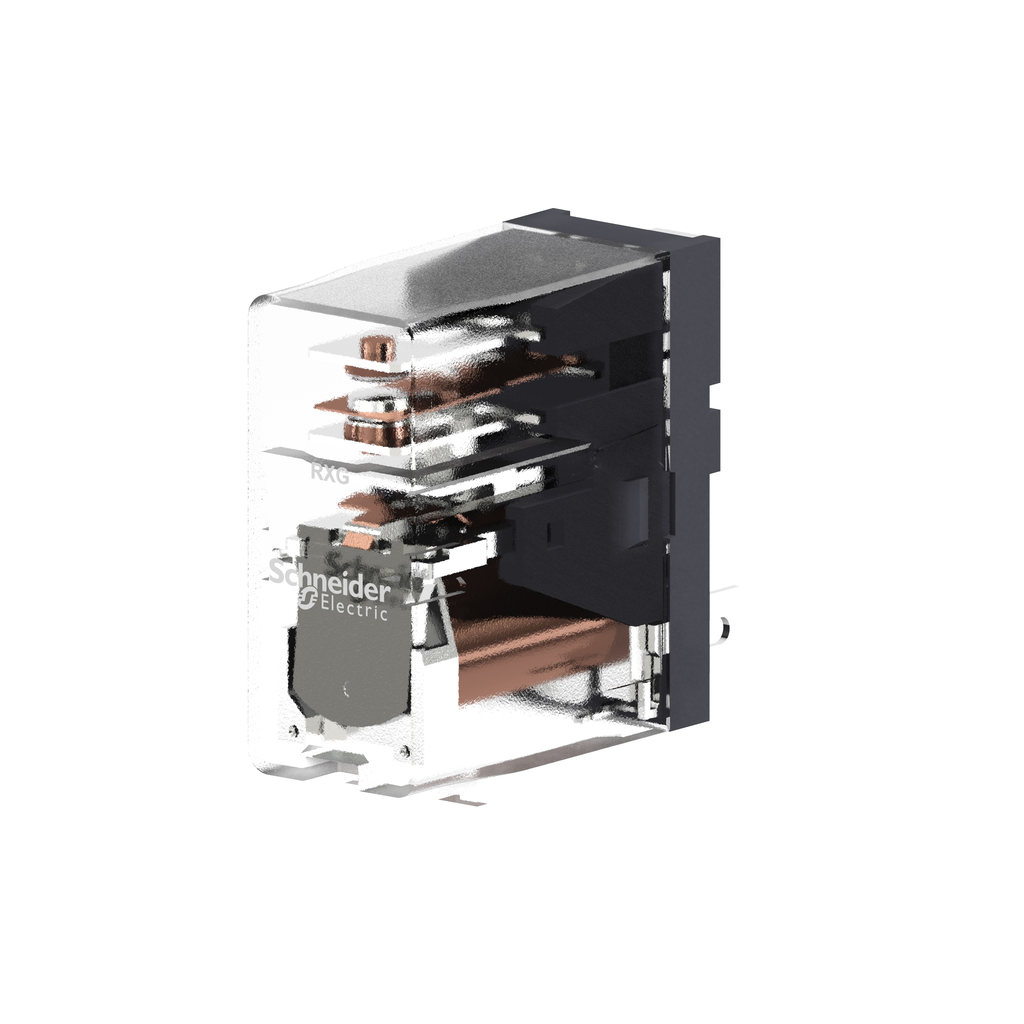

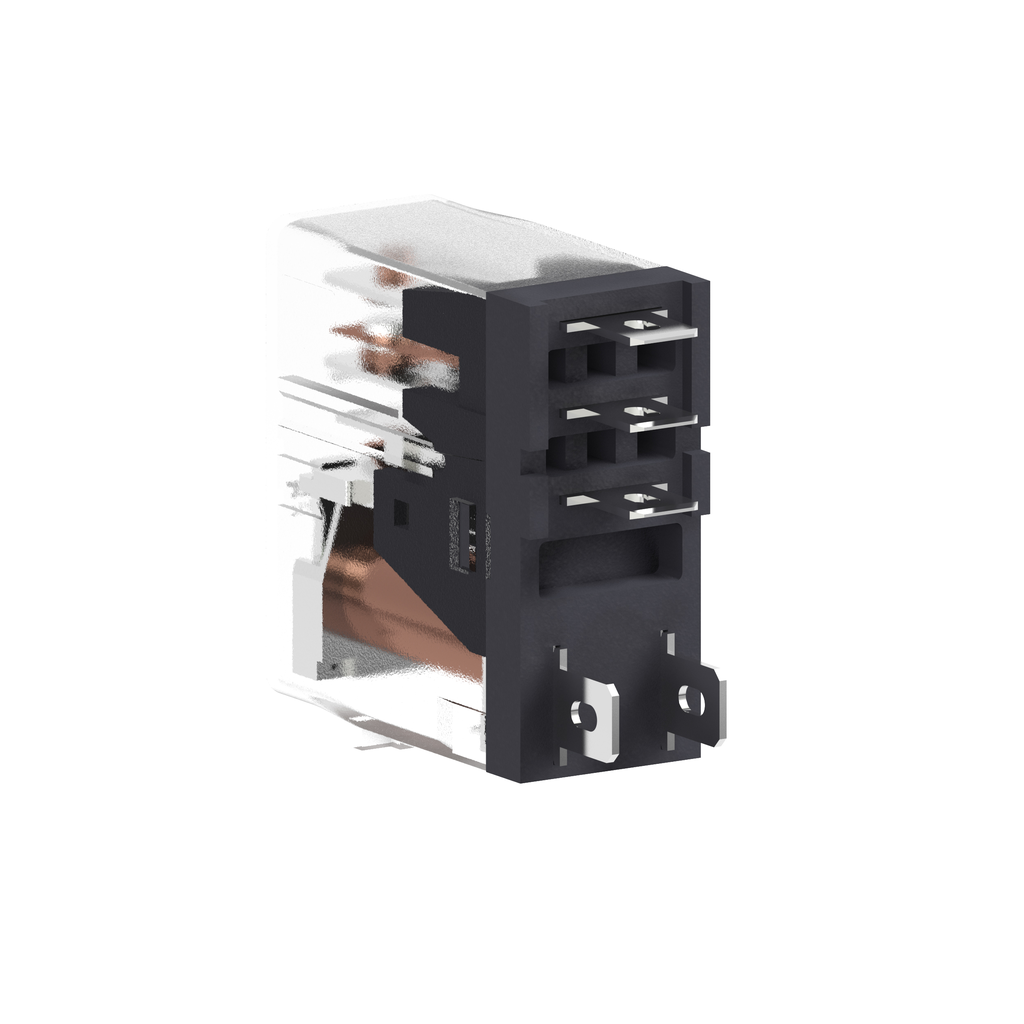

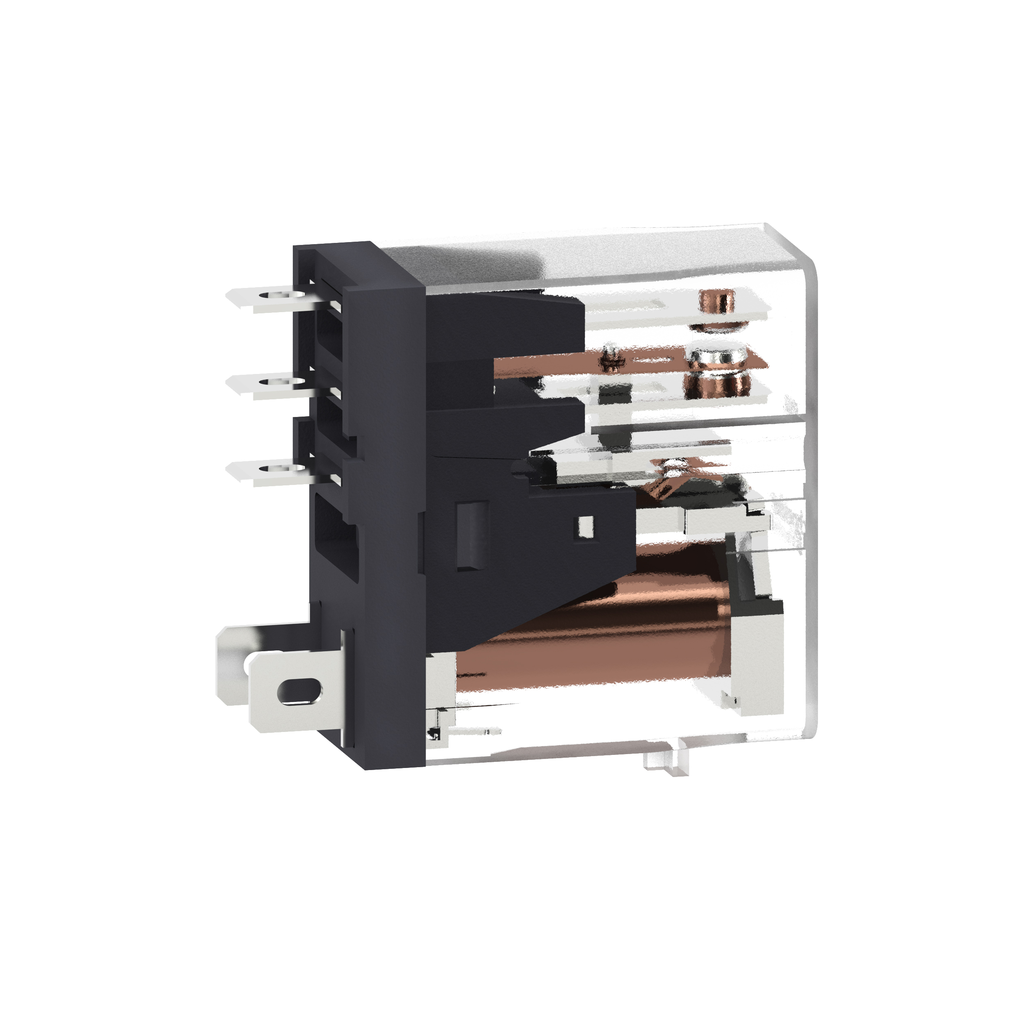

SQD RXG15JD Interface plug in relay

Manufacturer: Square-D / Schneider | Catalog # RXG15JD | Cooper Electric Part # 1745629
$5.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RXG plug-in relay socket has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
10 Amp 250 V AC,10 Amp 30 V DC) UL-10 Amp 30 V DC) IEC-10 Amp 250 V AC) IEC-10 Amp 250 V AC) UL
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Dielectric Strength
1000 V AC between contacts with micro disconnection;5000 V AC between coil and contact with reinforced insulation
Net Weight
0.018 kg
Operating Cycles
<= 1800 Cycles/hour Under Load,<= 18000 Cycles/hour No-load
Operating Temperature
-40-70 Adegrees C
Resistance
10 %
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
Type
Plug-in relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RXG

General Product Info

12-Digit UPC
785901557654
GTiN
03606480688942
Product UPC
78590155765

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,DNV-GL,EAC,UL
