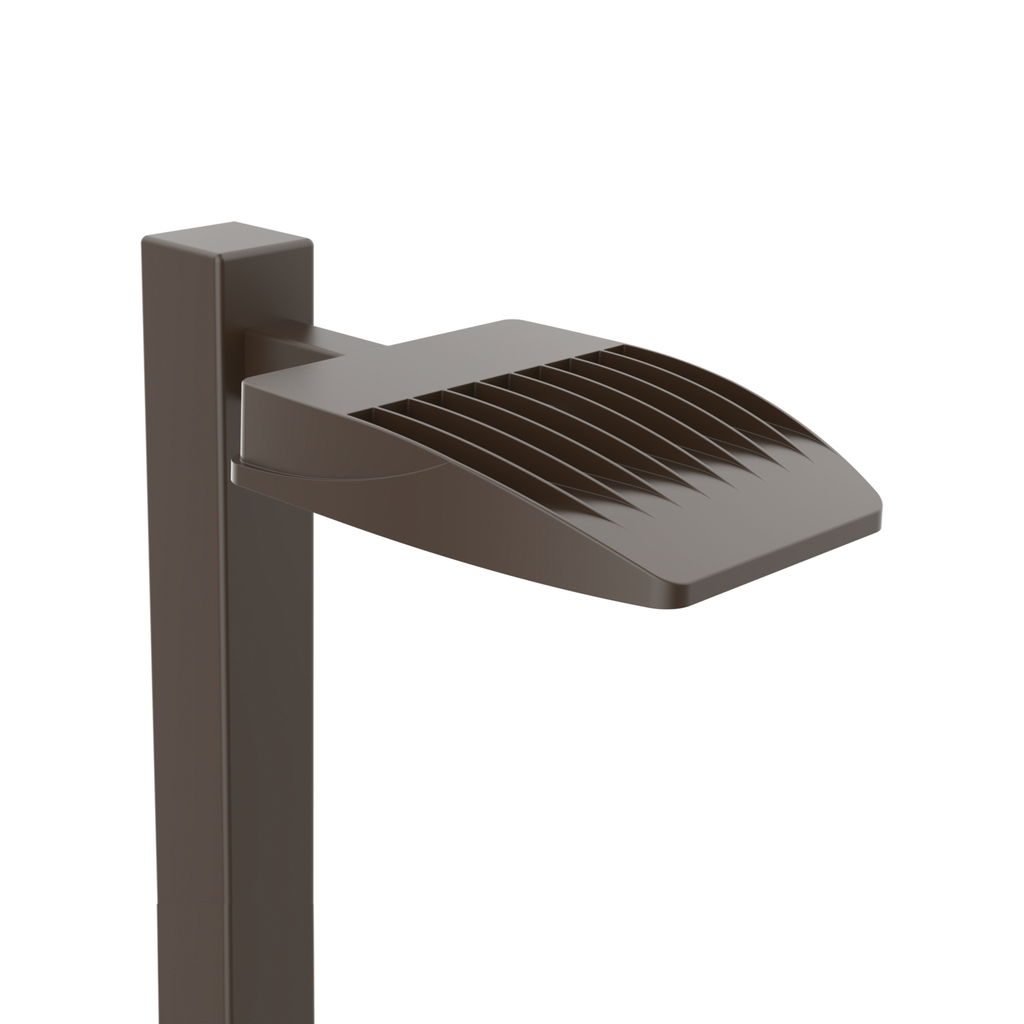

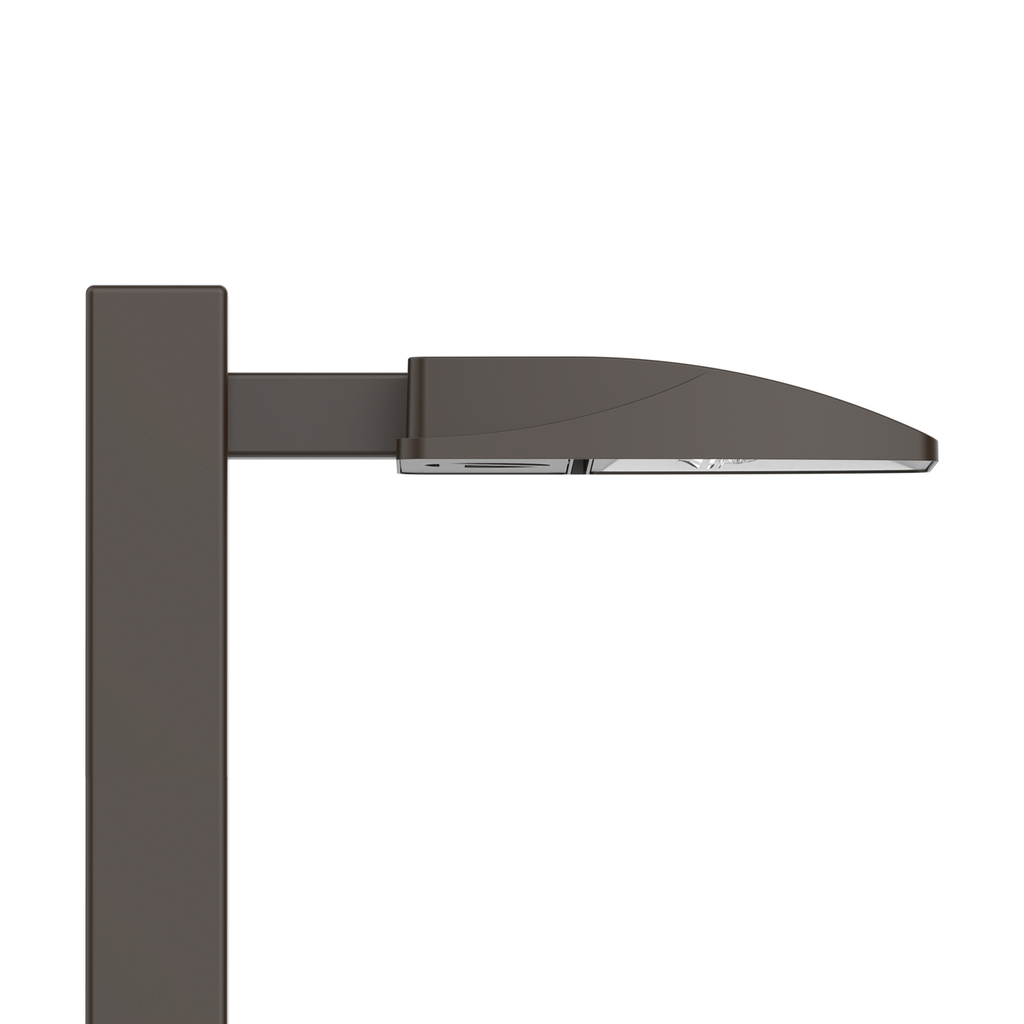

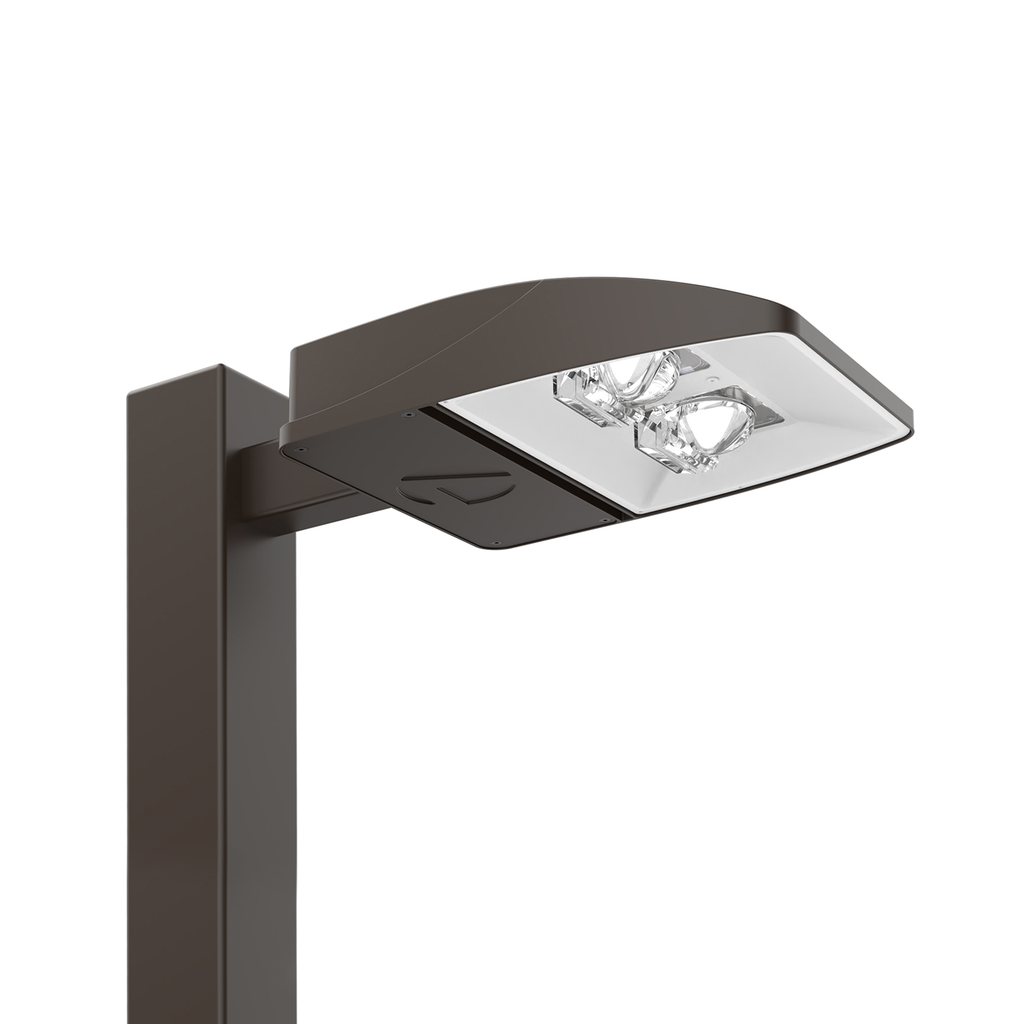

LITH ESX1 LED P2 50K R3 MVOLT UPA B

Manufacturer: Lithonia Lighting | Catalog # ESX1LEDP250KR3MVOLTUPABLSDDBXDM2 | Cooper Electric Part # 1741048

$378.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
When your project calls for low initial cost and high energy savings, the Lithonia Lighting® ESX1 LED area luminaire delivers. ESX1 is ideal for one-for-one replacement of HID area lighting and provides up to 76% energy savings, long service life and fast payback.The ESX1 delivers 8,000 to 25,000 lumens allowing it to replace 150W to 400W HID luminaires. All ESX luminaires feature adjustable light output, providing two light levels from one product, allowing greater flexibility while helping reduce inventory costs.All luminaires feature a reversible arm that allows for mounting on both round and square poles. Eight configurations of ESX1 luminaires are stocked in Acuity Brands distribution centers. The ESX1 offers a complete area lighting package and provides the combination of best product value, best price, and best delivery.

Technical Information

Applications
Automotive & Parking,Offices & Banks,Retail
Color Rendering Index
70
Color Temperature
5000 K
Correlated Color Temp
5000 K
Lamp Type
LED
Lens Color
Clear
Lens Material
Glass
Lumens
8,000 Lumen
Material
Aluminum
Mounting Type
Arm Mount,Surface
Power Source
Hardwired
Size
19.94x12x2.87 IN
Standard
C-UL-USDLC Premium,Nighttime Friendly
Style
Contemporary
Type
Area Light
Voltage
120 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194994838555
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
GTiN
00194994838555
Product Type
Area Light
Product UPC
19499483855
Shape
Rectangle

Dimensions

Height
2.87 Inch
Length
19.94 Inch
Width
12 in

Certifications and Compliance

Country of Origin
Vietnam
Features
  • Bi-level ALO switch and reversible arm maximizes flexibility in the field
  • Delivering 8,000 to 25,000 lumens the ESX1 LED replaces 150W to 400W metal halide luminaires while saving up to 70%+ energy costs
  • Hardwired on/off capability only
  • UL listed to meet US and Canadian standards, suitable for wet locations, rated for -40°C minimum ambient and listed as a DesignLights Consortium® (DLC) qualified product
  • MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted using the universal mounting arm allowing it to mount on both round and square poles, with a minimum of 3.5 inch pole or larger, a wall mount bracket is also available
  • Type 3 distribution use high-efficacy LEDs with LED lumen maintenance greater than L70/60,000 hours
  • Exterior parts are protected by a Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering, the result is a high-quality finish that is warrantied not to crack or peel
  • No emergency battery back-up available in this version
  • Five-year limited warranty
Standard
  • C-UL-USDLC Premium
  • Nighttime Friendly
Mounting
  • Arm Mount
  • Surface
Application
  • Automotive & Parking
  • Offices & Banks
  • Retail
