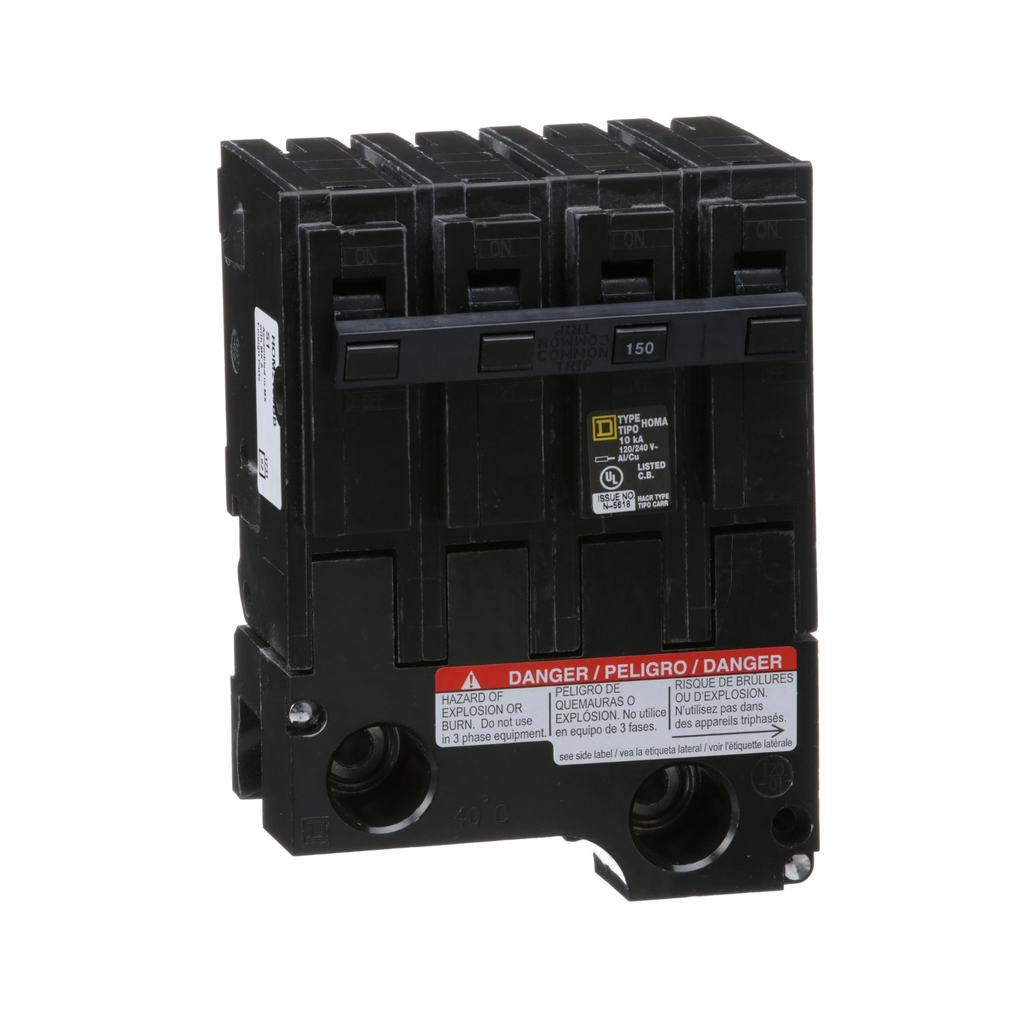

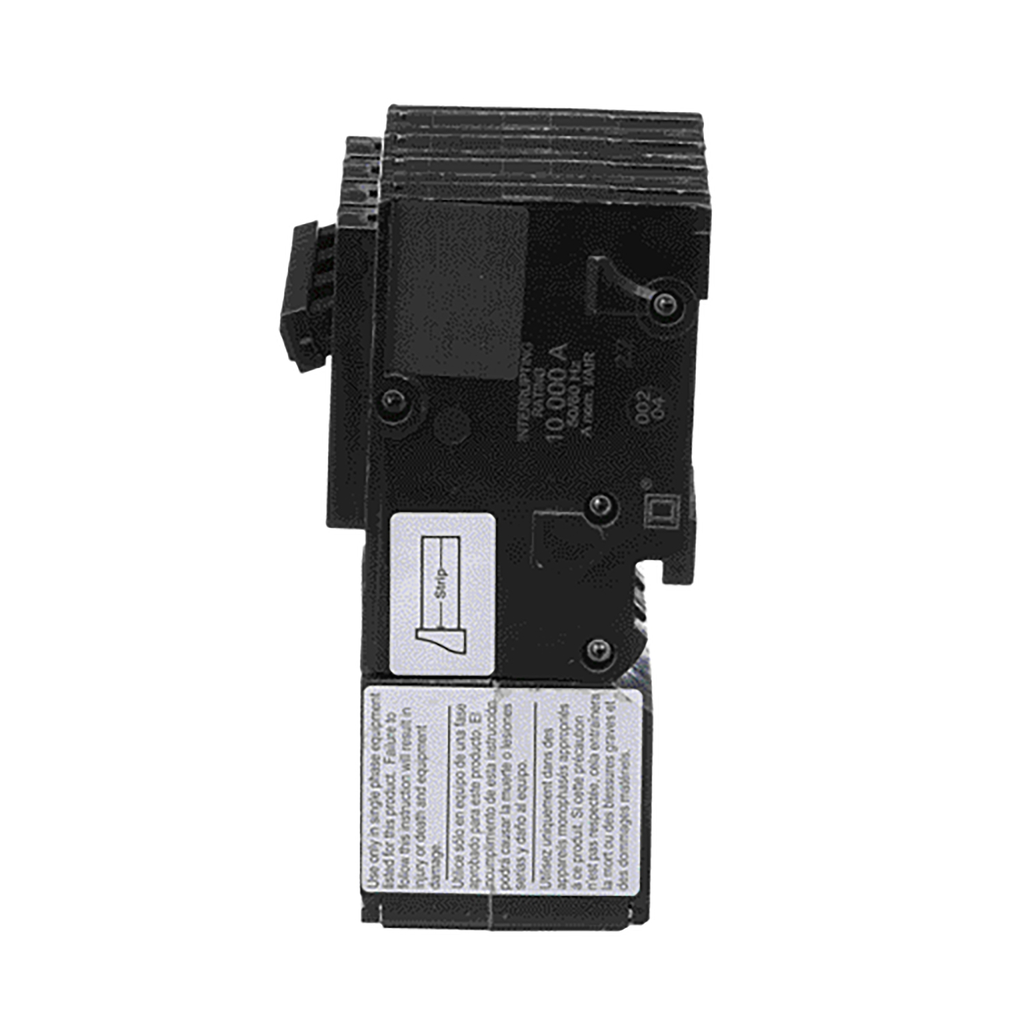

Square D HOM2150BB 120/240 Volt 150 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM2150BB | Cooper Electric Part # 173902
$428.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
6 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 150 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.39 inches, a width of 3.98 inch and depth of 3.13 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
150 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
Standard
Conductor Size
4 AWG-300 kcmil
Current
150 Amp
Interrupt Rating
10 kAIC
Line Rated Current
150 A
Mounting Type
Plug-in
Number of Poles
4 Pole
Number of Spaces
4
Operating Temperature
40 Adegrees C
Range
Homeline NULL
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
SCREW #4-300 AWG/KCMIL(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 4...300 kcmil aluminium/copper)1

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901296201
GTiN
00785901296201
Product UPC
78590129620

Dimensions

Depth
3.13 Inch
Height
5.39 Inch
Length
3.13 Inch
Warranty Length
Lifetime
Width
3.98 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.001410114
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.3 kg CO2 eq.
  • 0.2897639
Related Products
  • HOM3060M200PC
  • HOM816M200PFTRB
  • HOM4080M200PCVP
  • HOM3060M150PC
  • HOM3060M200PRB
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 6 kg CO2 eq.
  • 5.8093075
Accessories
  • HOM1HT
  • HOMTHT
  • QO1LO
  • HOM2HBD
  • HOM1PA
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 22 kg CO2 eq.
  • 21.872
Accessory Products
  • HOM1HT
  • HOMTHT
  • QO1LO
  • HOM2HBD
  • HOM1PA
Persona Type Ids
  • EU
  • EUA
  • LC
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.35472745
  • 0.4 kg CO2 eq.
Tightening Torque
  • 28.3-28.3 N.m 95-150 mm² (AWG 4/0...250 kcmil)
AWG Gauge
  • 1 x AWG 4...300 kcmil ( aluminium/copper )
UE Rated Operational Voltage
  • 120/240 V AC
