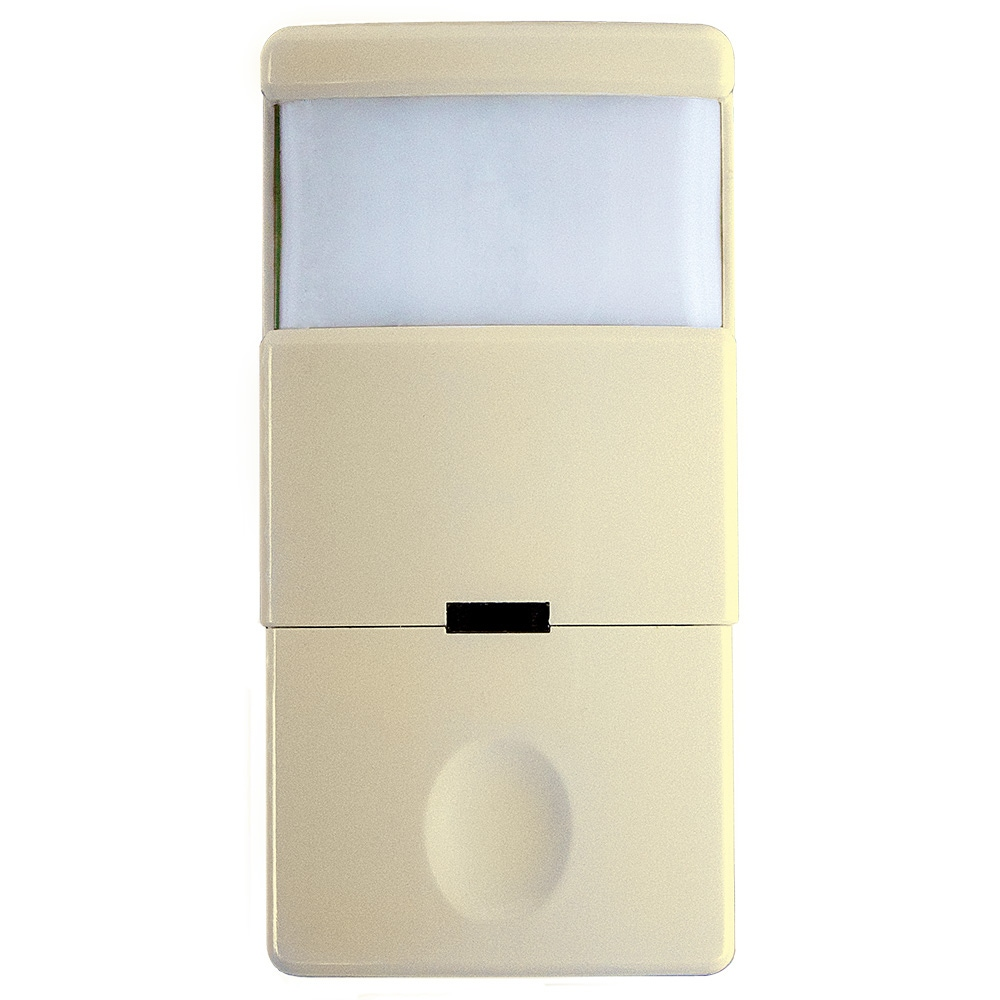

Product image for INT-MAT IOS-DOV-NL-IV Commercial Gr
Email

INT-MAT IOS-DOV-NL-IV Commercial Gr

Manufacturer: Intermatic, Inc | Catalog # IOS-DOV-NL-IV | Cooper Electric Part # 1733125
$83.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor

Technical Information

Applications
Indoor Sensing Control
Indicator
LED
Input Voltage
120 V
Load Type
800 VA @ 120 VAC (Fluorescent),800 WTT @ 120 VAC (Tungsten)
Max Operating Temperature
131 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
In-Wall
Number of Circuits
1
Operating Temperature
131 degrees F
Sensing Range
180 DEG 1200 SQ-FT
Standard
Title 24 Compliant,UL/cUL Listed
Type
Electronic and Magnetic

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275125582
Color
Ivory
GTiN
00078275125582
Product UPC
07827512558
Weight
0.3 lb

Dimensions

Depth
1-3/4 Inch
Height
2-5/8 Inch
Warranty Length
5 yr
Width
1.313 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive Infrared (PIR) sensing for presence detection
  • Coverage: 180, 1200 ft2 with non-obstructed views
  • User-selectable Vacancy or Occupancy switch mode
  • Zero-crossing technology for long life and performance
  • Adjustable ambient light sensor override
  • Incandescent/Fluorescent/CFL/LED compatible
  • IOS-DOV models require a neutral connection
  • Fits standard decorator wall plate (included)
  • Automatic ON/OFF Control
  • Adjustable time delay
