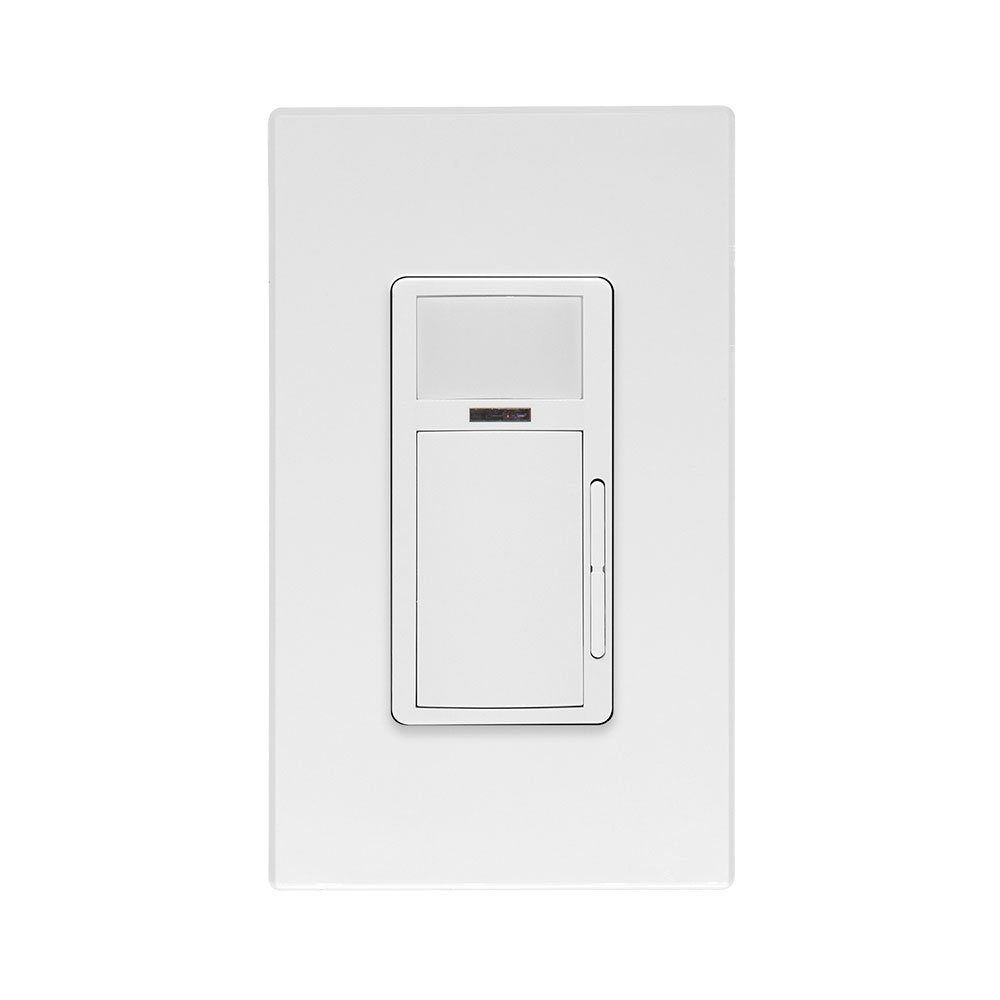

Product image for LEV ODD24-IDW SMART WB BLE PIR, 24V
Image thumbnail 0
Image thumbnail 1
Email

LEV ODD24-IDW SMART WB BLE PIR, 24V

Manufacturer: Leviton Mfg Co | Catalog # ODD24-IDW | Cooper Electric Part # 1733051
$98.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Smart Sensor, PIR, Wallbox, 24V Dimming, 12-24V input Sensor, App configurable, Commercial Grade, Color: White. Wall plate sold separately

Technical Information

Grade
Commercial
Mounting Type
Wall Switch
Operating Temperature
0 degrees C
Size
1.42 in

Manufacturer Information

Brand
Leviton
Sub Brand
OCC SENSOR WALLPLATE

General Product Info

12-Digit UPC
078477425633
Color
White
GTiN
00078477425633
Product UPC
07847742563

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
  • Fits in a standard wallbox and gangable with other units
  • ODD24-IDW is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source
  • 180° field-of-view provides approximately 1,100 square feet of coverage
  • Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
  • Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
  • Adjust the sensitivity of the sensor to increase or decrease coverage area
  • Adjust timeouts
  • Activate the nightlight and select nightlight colors
  • Add daylighting hold-off and select target daylighting hold-off levels
  • Set a security code to lock configuration settings
  • Configure dimming options such as Partial-0N, Partial-OFF, and Partial-OFF timeouts
  • Out-of-the-box configuration default mode: Auto-ON/auto-OFF with 10-minute time out
  • Sensitivity set to 75%
  • Nightlight and daylighting hold-off disabled
  • The Leviton 24V Dimming Smart Sensor (ODD24-IDW) is designed for use with an OPP20 or OSA20 Power Pack or other Leviton (24V) low voltage sources. Lighting levels can be adjusted using the dimming bar next to the switch and uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistant lens. When a person passes in or out of a sensor zone the sensor detects motion and switches the lights ON. The lights will remain ON as long as long as an occupant moves through the sensor zones and after the timeout expires. The ODD24-IDW features a vacancy mode for Manual-ON/Auto-OFF operation, ideal for installations where manual-ON switching is required for energy code applications. Configuration of ODD24-IDW is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth® enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several common pre-configured options. The ODD24-IDW integrates a photocell for daylighting which can be programmed using the Leviton Smart Sensor App. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies. Do you have a question about an occupancy sensor or vacancy sensor?
