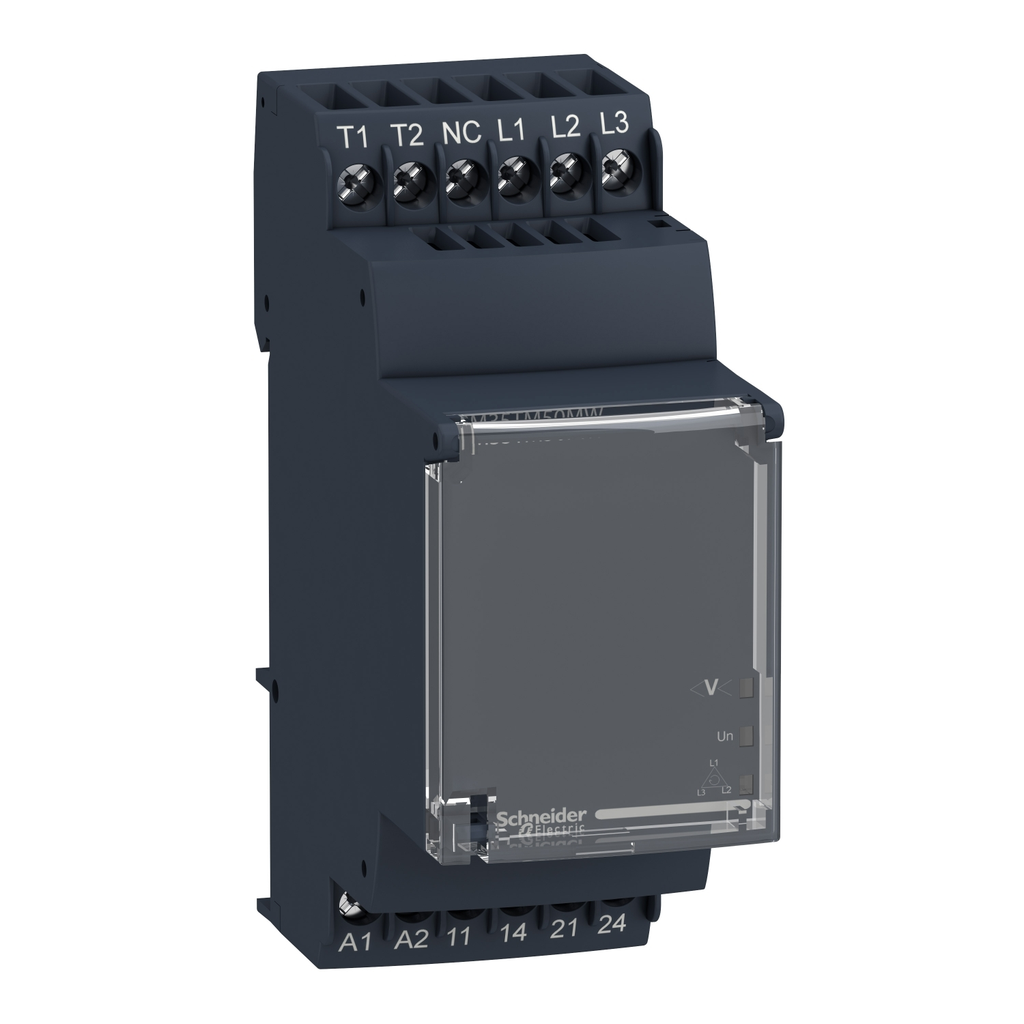

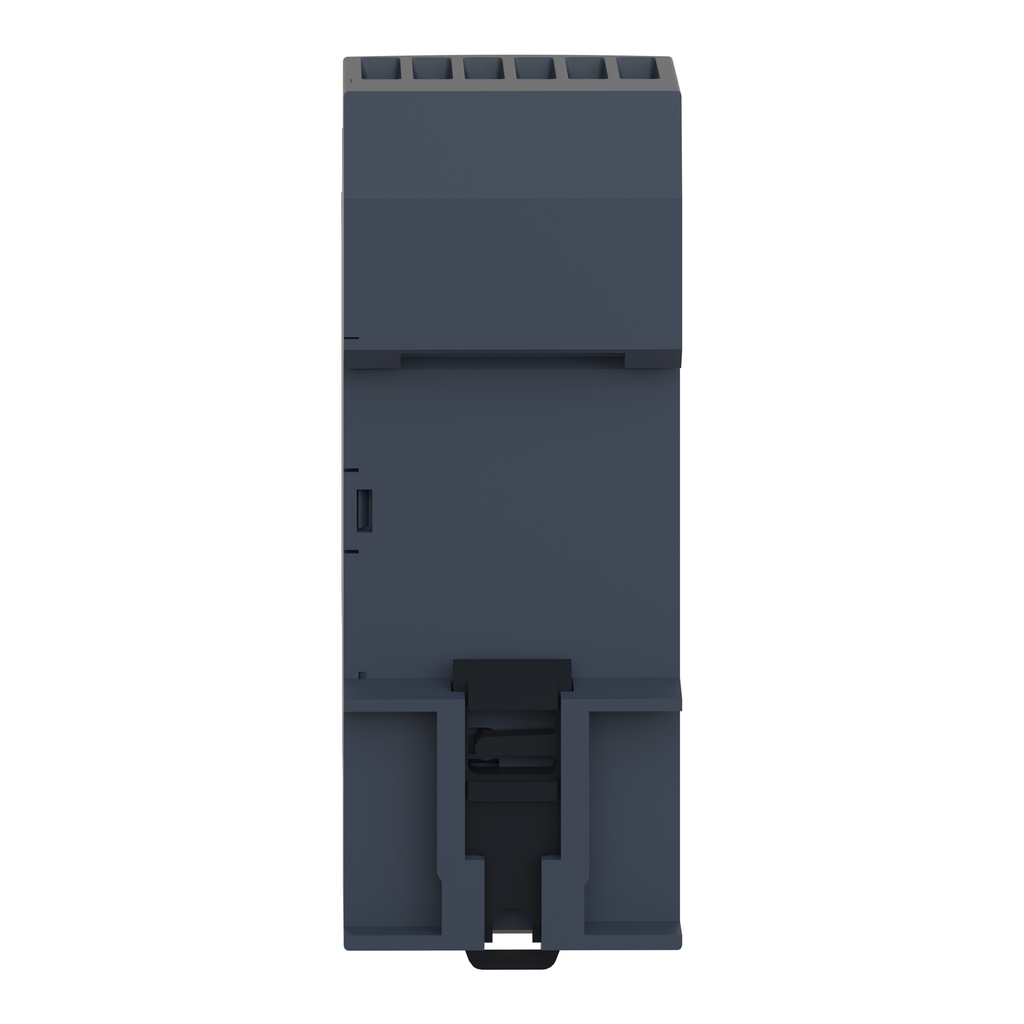

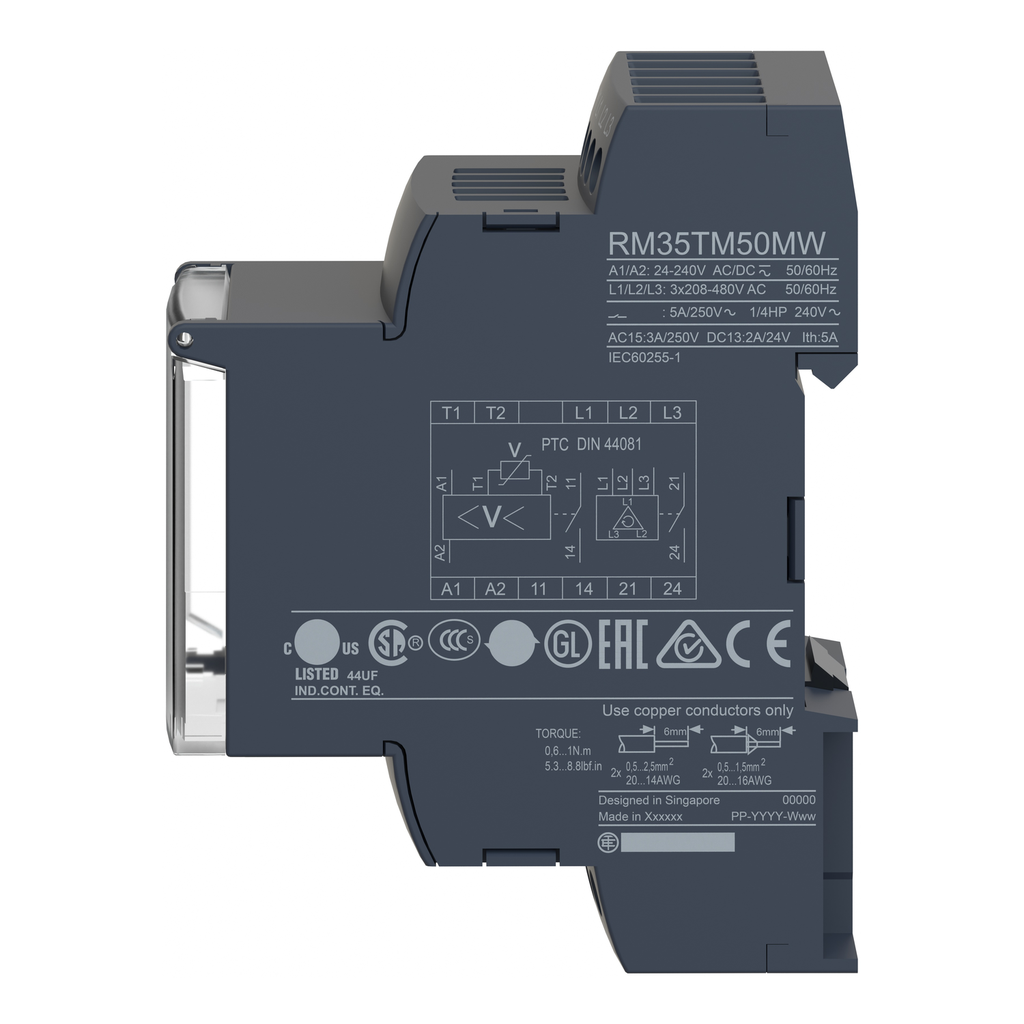

Square D RM35TM50MW 3-Phase Control, ELEVATOR RELAY 250V 5AMP RM35

Manufacturer: Square-D / Schneider | Catalog # RM35TM50MW | Cooper Electric Part # 1732427

$517.86/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony RM35-T control relay allows monitoring of motor voltage and temperature control. This modular control relay is ideal for monitoring of electrical values with voltage and temperature variation in control of moving equipment's. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Contact Rating
5 A
Line Rated Current
5 A
Net Weight
0.13 kg
Operating Cycles
360
Power Consumption
0.5 W DC
Resistance
1500 ohm
Response Time
> 50 ms (input Y1 (contact Y1-T1) and push-button) NULL
Short Circuit Current
0.007 A
Short Circuit Current Ratng
0.007 A
Size
1.38 in
Standard
IEC 60034-11-2,IEC 60255-6
Storage Temperature
-40-70 degrees C
Type
Modular measurement and control relays;Motor temperature control relay

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
389119405280
GTiN
03389119405287
Housing Material
Plastic
Product UPC
78590149217
Weight
0.13 kg

Dimensions

Warranty Length
18 mth
Width
35 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
