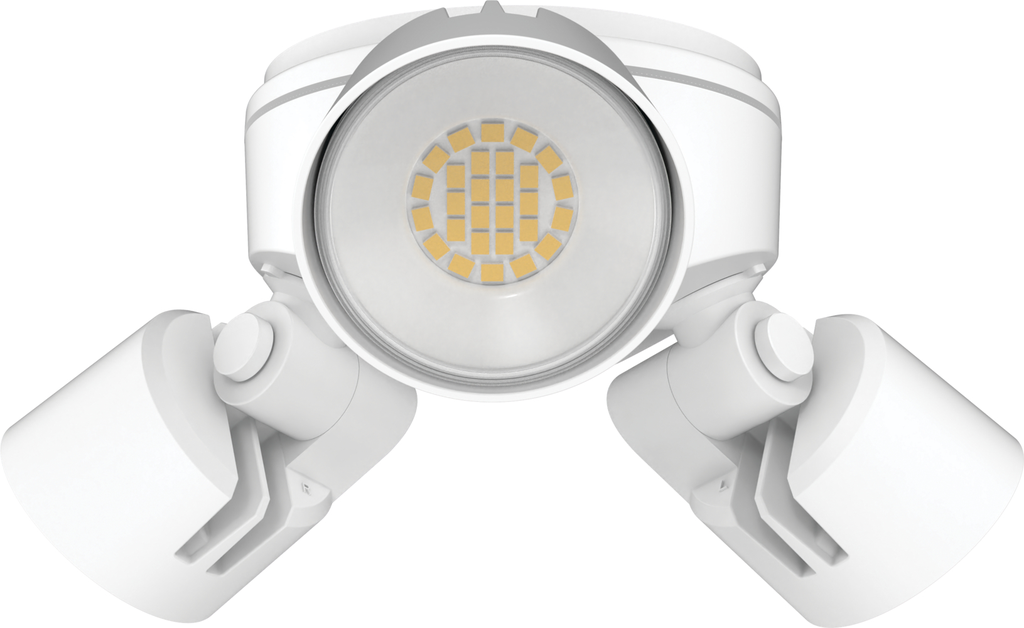

Product image for LITH HGX LED 3RH ALO SWW2 120 PE WH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LITH HGX LED 3RH ALO SWW2 120 PE WH

Manufacturer: Lithonia Lighting | Catalog # HGX-LED-3RH-ALO-SWW2-120-PE-WH-M2 | Cooper Electric Part # 1730751
$244.79/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

Technical Information

Applications
Automotive & Parking,Education,Entertainment,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Warehouses
Average Rated Life
50,000 hr
Color Rendering Index
80
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Lamp Type
LED
Lens Material
Polycarbonate
Lumens
1,750 Lumen
Material
Aluminum
Mounting Type
Surface
Number of Lamps
3
Power Source
Hardwired
Standard
C-UL-USCA Title 24,ENERGY STAR
Style
Traditional
Type
Floodlight
Voltage
120 Volt
Wattage
36 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995255139
Color
White
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
GTiN
00194995255139
Product Type
Floodlight
Product UPC
19499525513
Shape
Round
Weight
1.77 L

Dimensions

Height
4-1/2 Inch
Length
5.13 Inch
Width
7.71 in

Certifications and Compliance

Country of Origin
China,China
Features
  • DESIGN: Easy to install and experience, the HGX floodlight family is the best choice for contractors and DIY customers with it's broad feature set for every application
  • ENERGY SAVINGS: Energy-efficient LEDs with adjustable lumen output of 1,750, 2,750 or 4,100 lumen options
  • DIMMING: Photocell (dusk-to-dawn), Adjustable Lumen Output (ALO) and Switchable Color Temperature (CCT)
  • RATINGS: UL/cUL listed to meet US and Canadian standards, suitable for wet locations
  • MOUNTING: Mounts to a recessed junction box on wall or ceiling with crossbar and hardware provided; wet location listed for mounting 4 feet above the ground with tool-less adjustable heads allow for precise aiming
  • HOURS OF LIFE: The HGX LED provides over 50,000 hours of maintenance-free general illumination for outdoor applications where LEDs maintain 70% of light output
  • CONSTRUCTION: Cast-aluminum housing with white polyester powder paint for lasting durability; LED lamp heads thermally isolated from driver, promoting a long service life; lenses are sealed to prolong service life
  • BATTERY: No emergency battery back-up available in this version
  • WARRANTY: Five-year limited warranty
Standard
  • C-UL-USCA Title 24
Application
  • Automotive & Parking
  • Education
  • Entertainment
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Residential
  • Retail
  • Warehouses
Mounting
  • Surface
