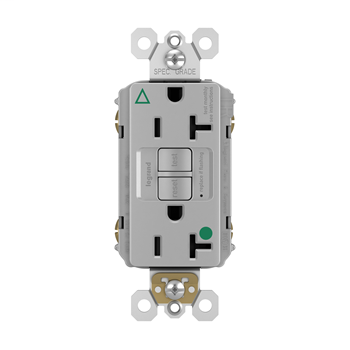

P&S 2097IGHGTRGRY DISC NO SUB

Manufacturer: Pass & Seymour / Legrand | Catalog # 2097-IGHGTRGRY | Cooper Electric Part # 1729206
$63.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.For detailed GFCI receptacle information, visit our GFCI Headquarters.

Technical Information

Amperage
20 Amp
NEMA
5-20R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007048773
Color
Gray
GTiN
00785007048773
Product UPC
78500704877

Certifications and Compliance

Country of Origin
China
Features
  • GFCI receptacle's grounding system is isolated from the building's grounding system.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Meets National Electrical Code® Tamper-Resistant requirements.
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Auto-Ground clip assures a positive ground to metal box.
  • Meets 2015 UL requirements.
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Pre-stripped stranded wire lead for isolated ground termination.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • Trip indicator light (red LED).
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • Two back-wire holes per terminal.
  • Ground screw has back-wire clamp for easy installation.
  • 10kA short circuit rating.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • High-impact-resistant thermoplastic construction.
  • Extra-long strap.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Class A rated GFCI.
  • Supplied with matching TP wall plate (except NI, AB, and DB models).
  • Supply Voltage: 125VAC, 60 Hz
  • Supply Voltage Range: 102-132 VAC
  • Trip Threshold: 5 +/- 1 m
  • Trip Time: 0.025 sec., nominal per UL Standard
  • 20 Amp feed-thru capacity
Eco-Benefit Information
  • RoHS Compliant
