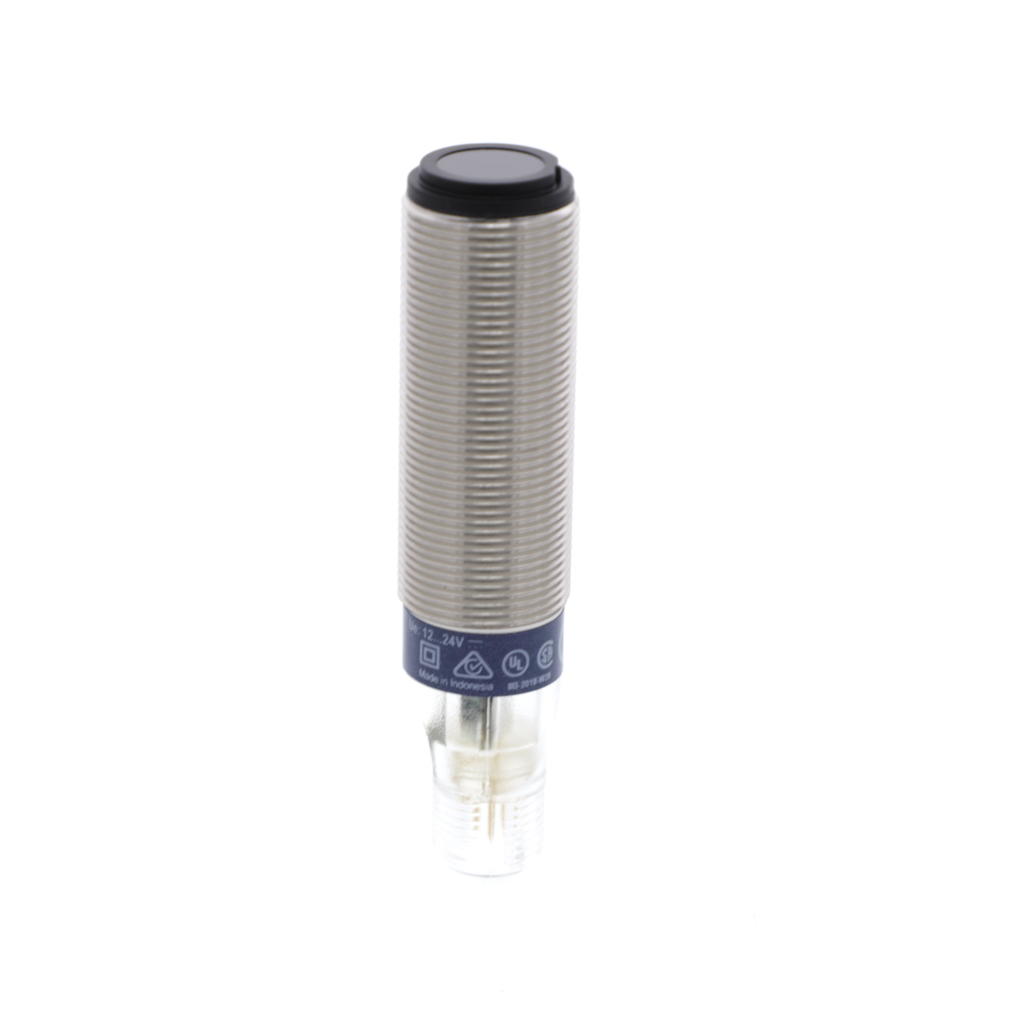

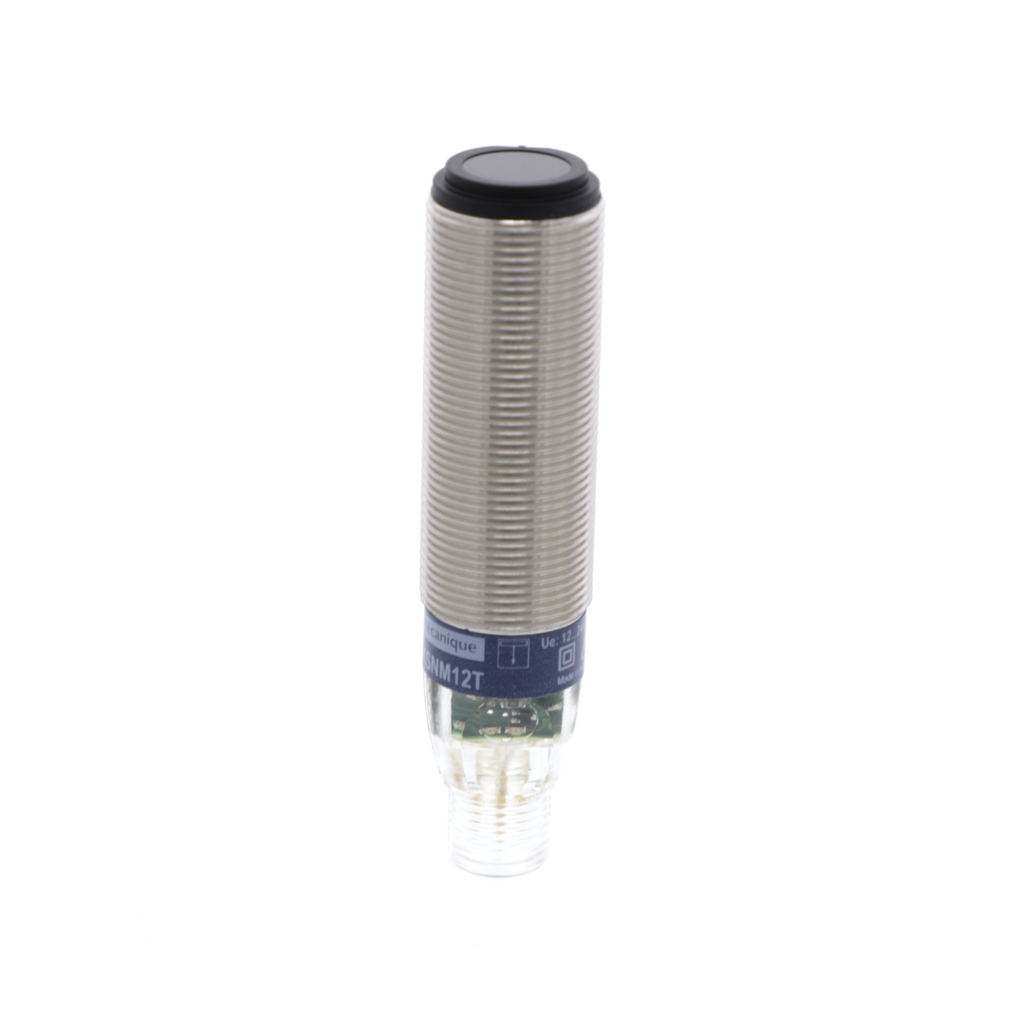

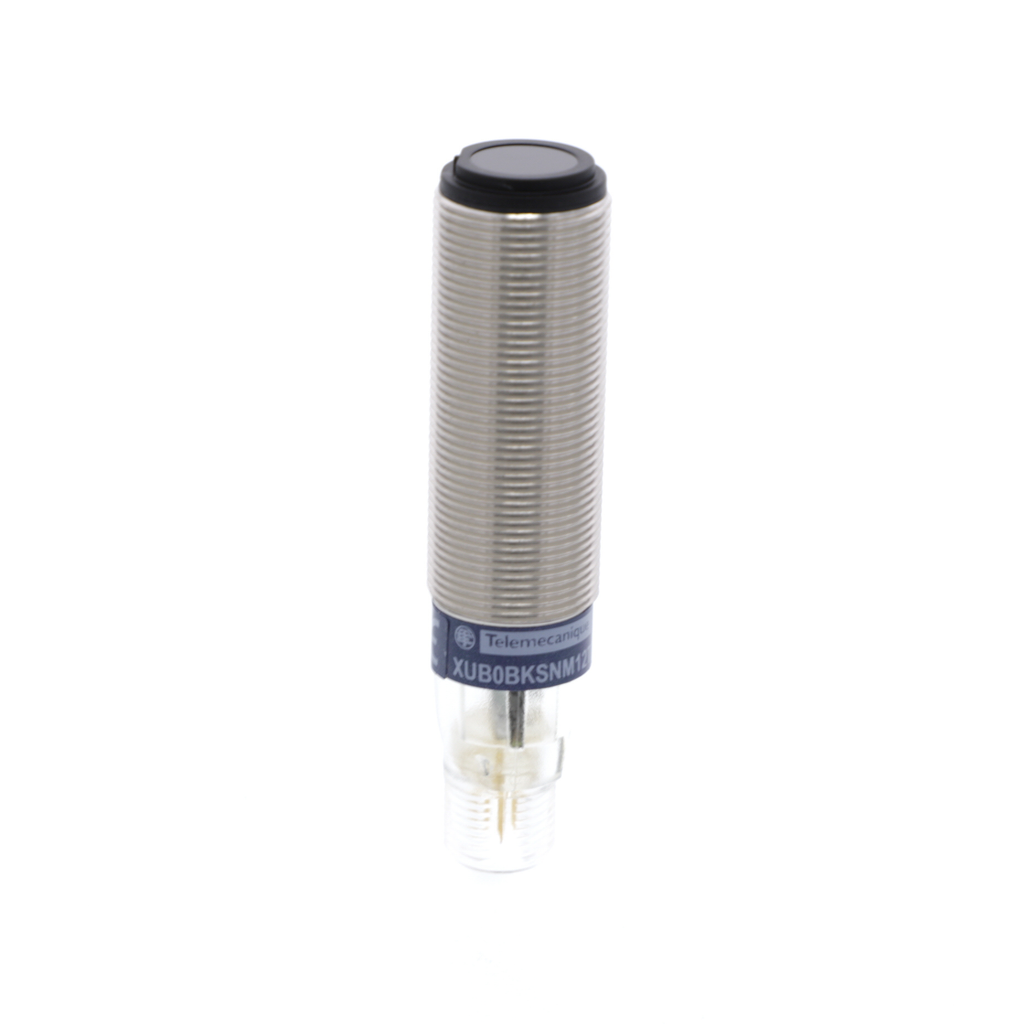

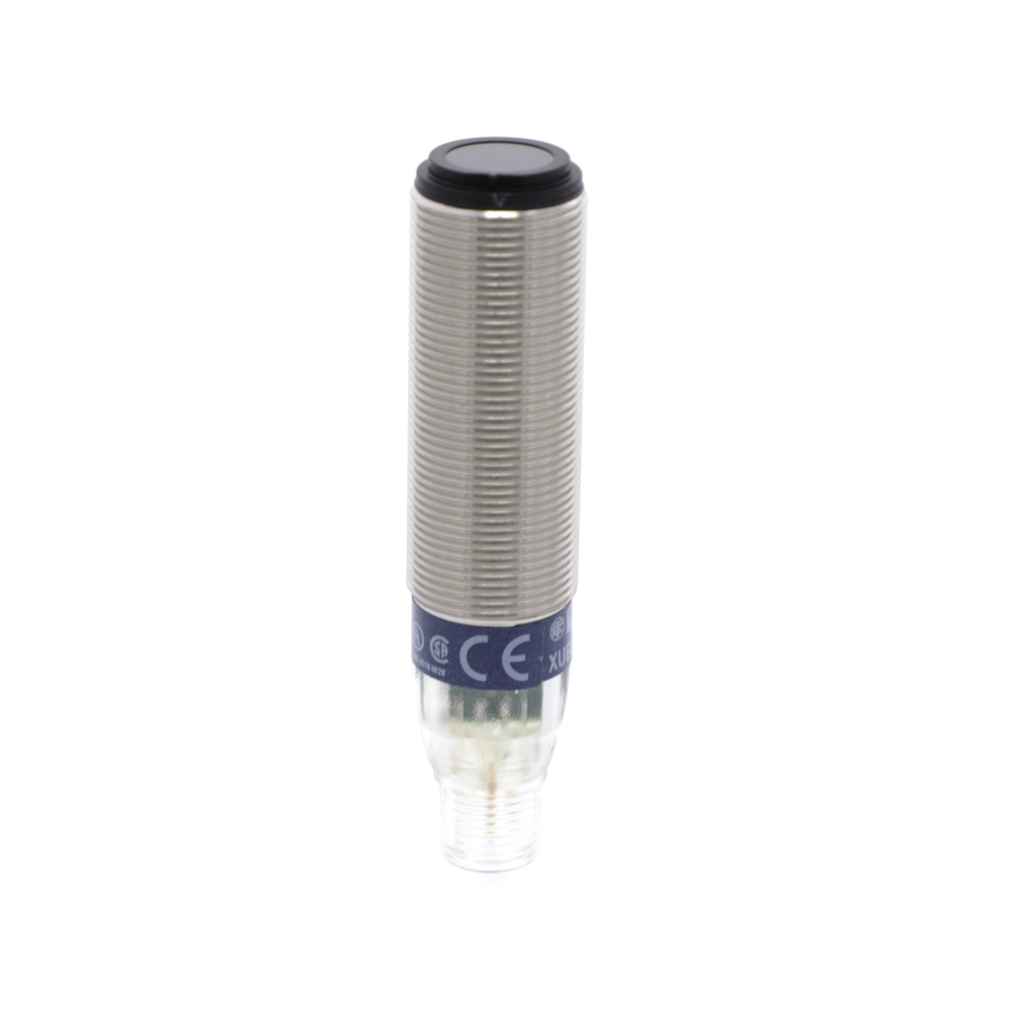

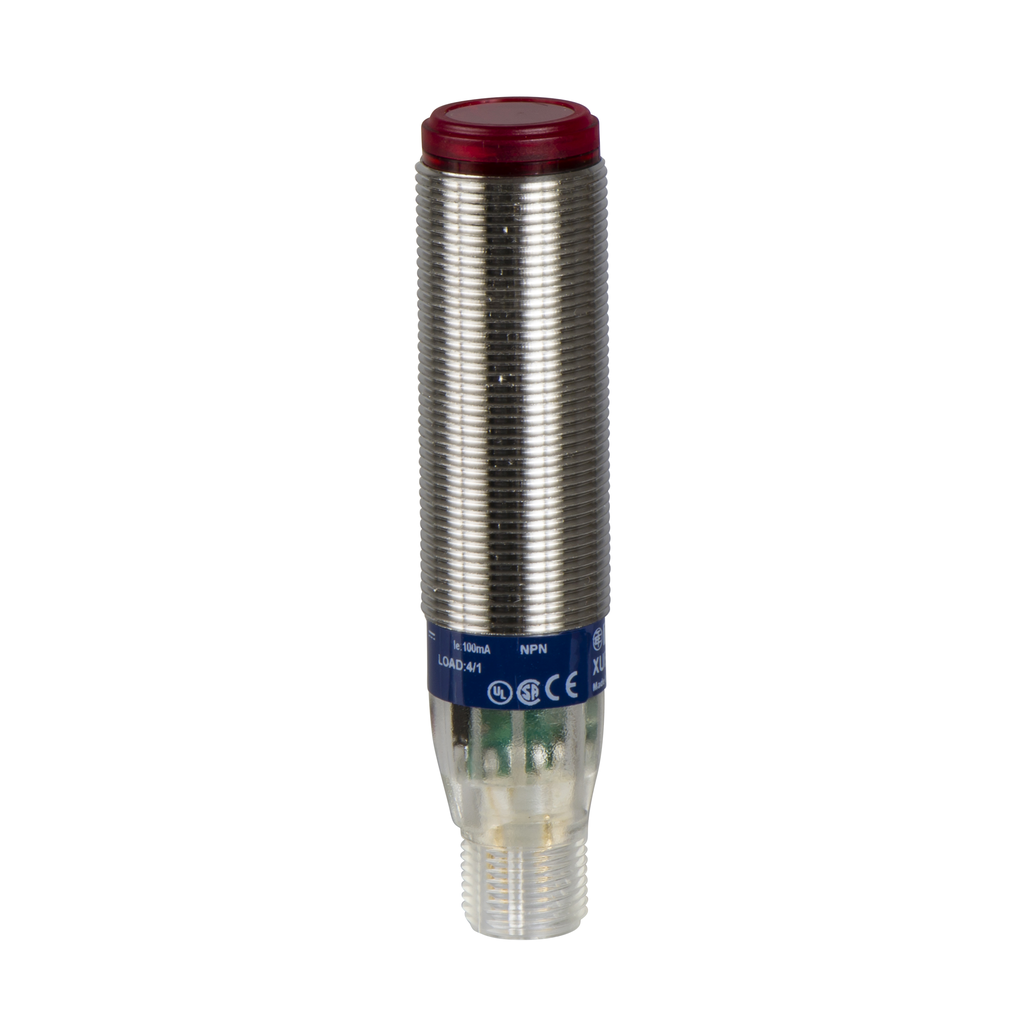

Product image for TES XUB0BKSNM12T Photoelectric sensors XU, XUB, emitter, 12...24 VDC, M12
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

TES XUB0BKSNM12T Photoelectric sensors XU, XUB, emitter, 12...24 VDC, M12

Manufacturer: TES Electric | Catalog # XUB0BKSNM12T | Cooper Electric Part # 172855
$114.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This design 18 single mode (thru-beam system) photo-electric transmitter has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This multi-mode cylindrical photoelectric emitter has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 3 LED display allows to identify status of the sensor and troubleshoot issues. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
20 mA
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,NICKEL PLATED BRASS
Enclosure Material
Brass
Lens Material
PMMA
Material
Metal
Net Weight
0.055 kg
Operating Cycles
<= 250 HZ
Operating Temperature
-25-55 degrees C
Output
DISCRETE,SOLID STATE
Sensing Range
20-20 M THRU BEAM NEED A RECEIVER,> 49.21...98.43 FT (> 15...30 M)
Size
18 MM,76 MM
Storage Temperature
-40-70 degrees C
TC Connection
1 MALE CONNECTOR M12, 4 PINS
Type
CYLINDRICAL M18,GENERAL PURPOSE MULTIMODE,PHOTO-ELECTRIC SENSOR TRANSMITTER,THRU BEAM
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
785901821755
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
GTiN
03389110148381
Product UPC
78590182175
Weight
0.12 lb

Dimensions

Diameter
18 mm
Length
76 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
Indonesia
