Caddy TB435FB Fire Alarm Box with Mounting Plate, 3-1/2" Box Depth

Manufacturer: Erico, Inc | Catalog # TB435FB | Cooper Electric Part # 1728467
$3,398.57/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
62 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

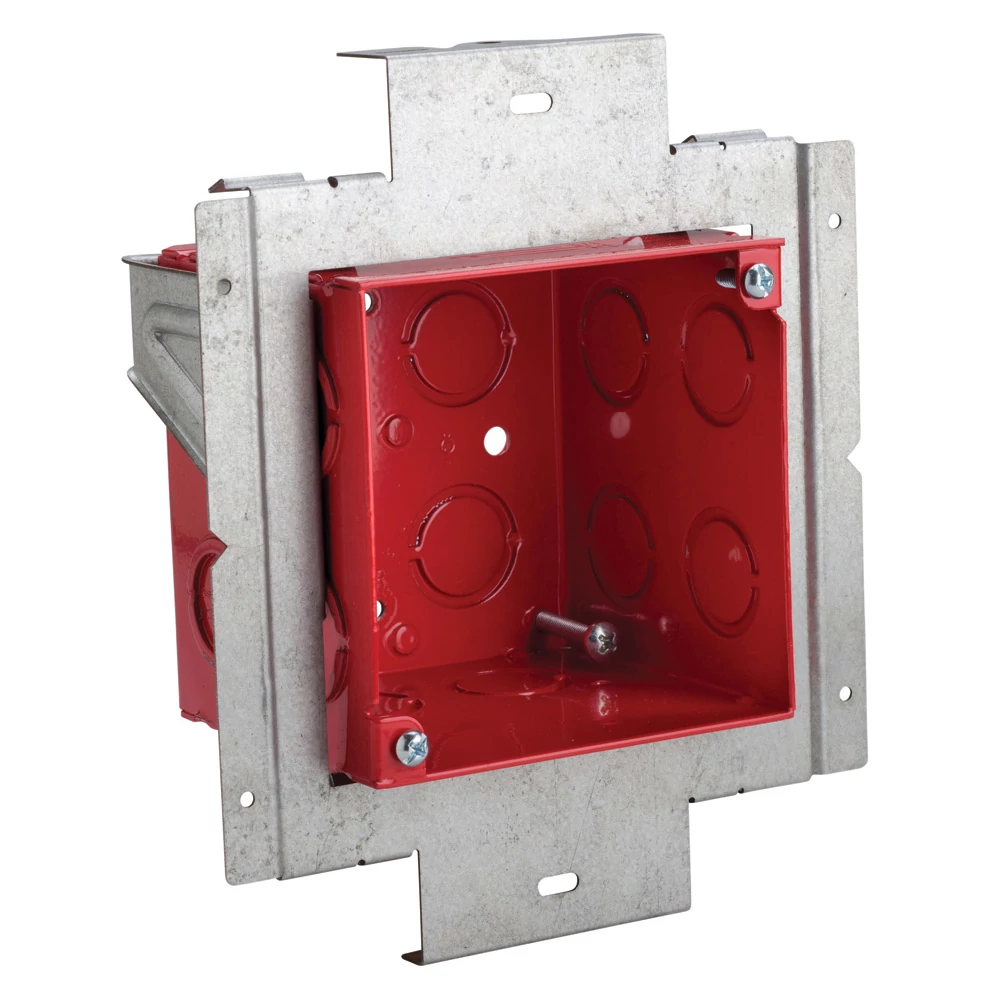

Powder coated red box for mounting fire alarm devices and strobes. For between stud and overhead applications use with Heavy Duty Telescoping Bracket. 3 1/2" Box Depth.

Technical Information

Applications
Electrical Fixing and Fastening
Material
Steel
Type
Heavy Duty Telescoping Bracket and Mounting Plates

Manufacturer Information

Brand
nVent Caddy

General Product Info

12-Digit UPC
784805003816
Color
Red
Finish
Pregalvanized
GTiN
00784805003816
Product UPC
78480500381
Weight
0.64 kg

Dimensions

Height
7.36-7.36 Inch
Length
6.2-6.20 Inch
Thickness
2.36-2.36 in
Features
  • Used for mounting fire alarm devices and strobes
  • Snap-on installation to Heavy Duty Telescoping Bracket allows for easy positioning along bracket
  • Can also be mounted directly to metal studs

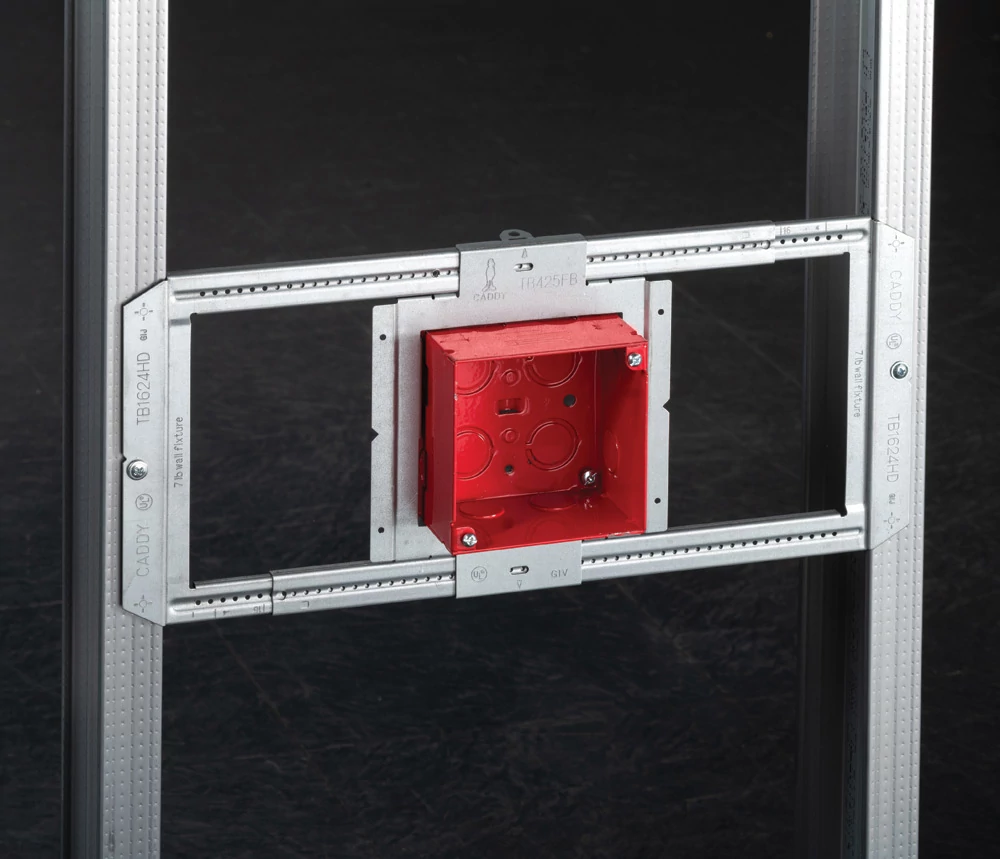

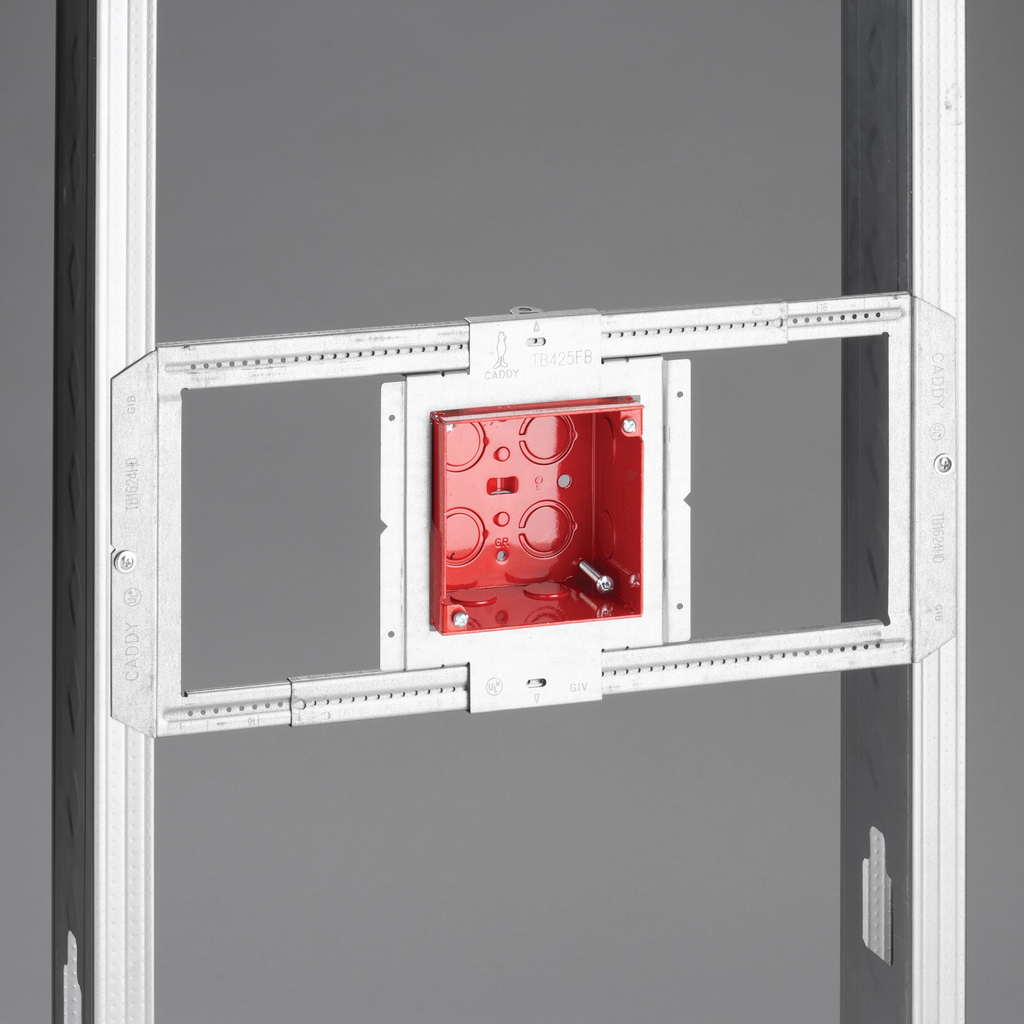

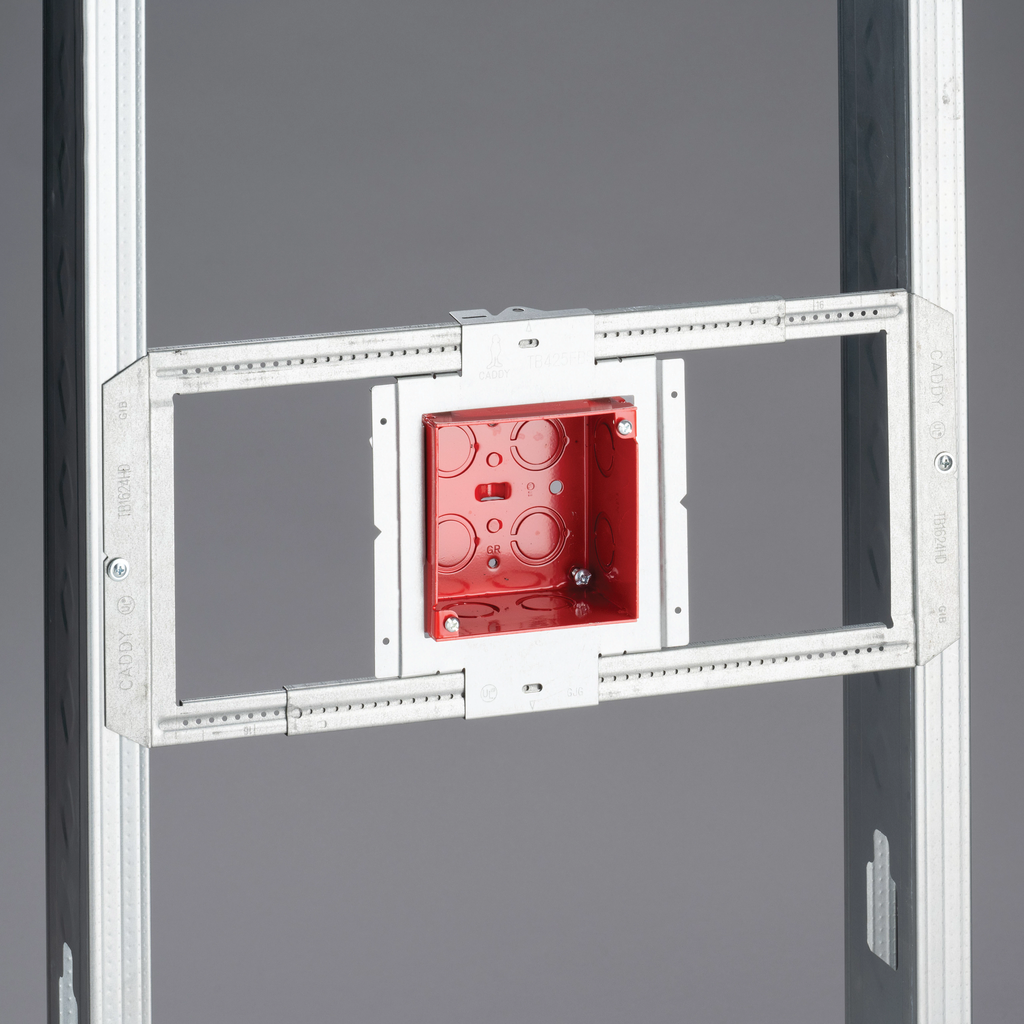

  • For between stud applications use with Heavy Duty Telescoping Bracket

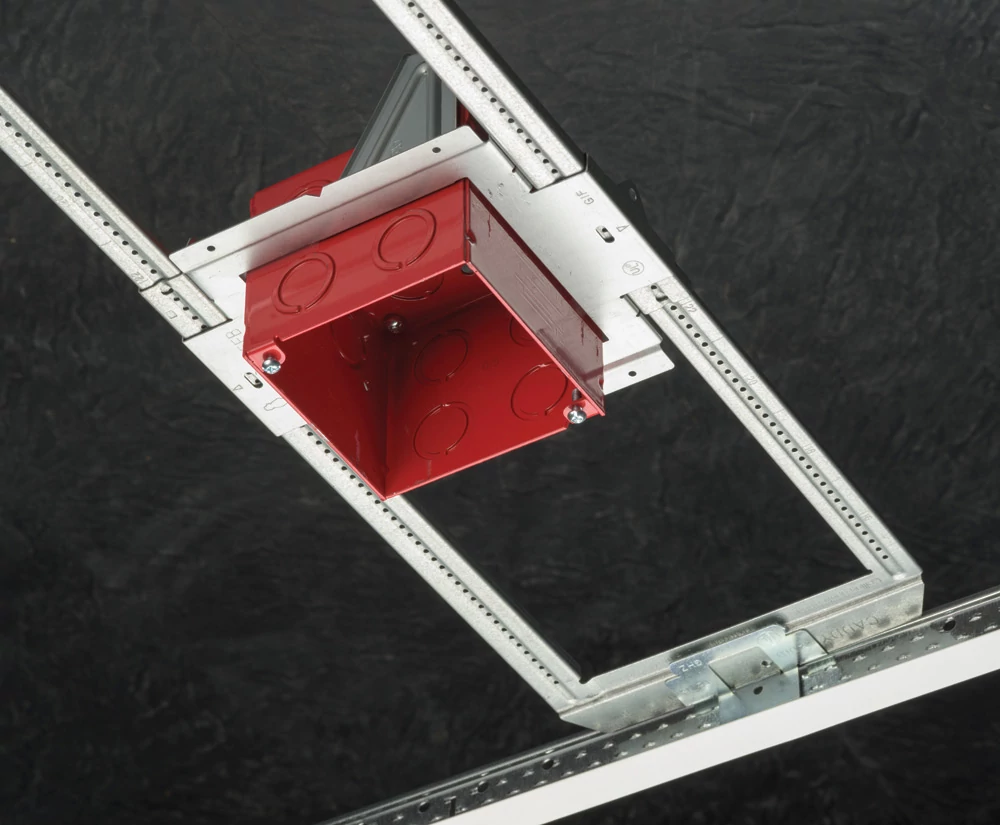

  • For overhead applications use with Heavy Duty Telescoping Bracket and T-Grid Clip (sold separately)
  • Easily adjusts for different depth wall and ceiling applications
  • Screws inside fire alarm box allow for adjustment after drywall or ceiling tile installation, providing confidence to adapt to any situation
  • Includes multiple knockouts on each side of the box
  • Design provides built in far side support for minimum stub depths
  • Powder coated inside and outside of box
  • Includes depth stamps marked directly on the product for easy positioning
  • Drop-wire attachment point
Certifications
  • UL ANSI/UL 514A
