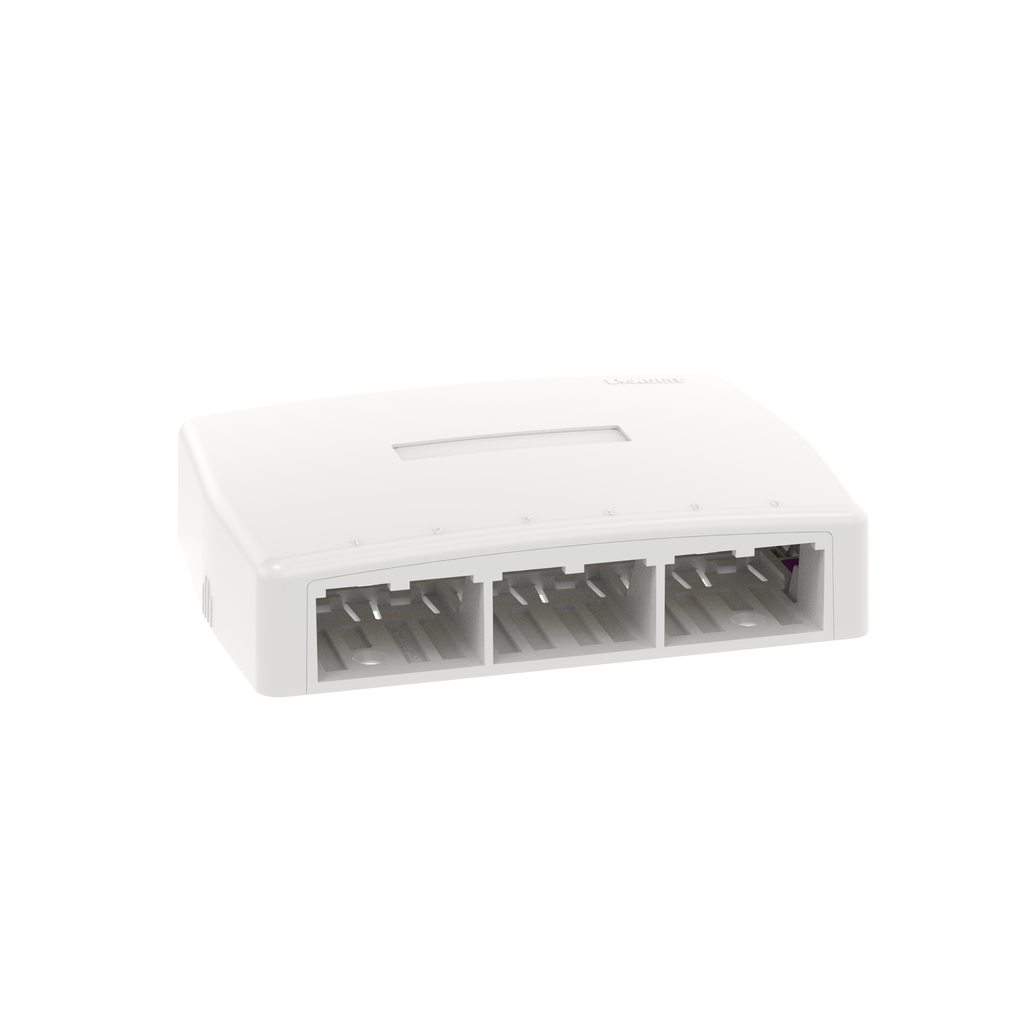

Product image for Panduit CBXQ6WH-A Surface Mount Boxes, Quick Release, 6 Port, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit CBXQ6WH-A Surface Mount Boxes, Quick Release, 6 Port, White

Manufacturer: Panduit Corp | Catalog # CBXQ6WH-A | Cooper Electric Part # 1727515
$41.63 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Engineering Drawing Product Spec Sheet Installation / Instruction Manual
The Mini-Com® Surface Mount Box is plenum rated and accepts six Mini-Com Modules. Cover has a quick release mechanism that allows easy access to the modules; cover can be secured with a screw. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box includes a label pocket for easy identification and is white.

Technical Information

Material
ABS Plastic
Mounting Type
Surface
Standard
CSA,E2186,UL
Type
Quick Release, 6-Port, Adhesive Backing

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, PanNet

General Product Info

12-Digit UPC
613056169548
Color
White
GTiN
00613056169548
Product UPC
61305616954
UNSPSC
43223301

Dimensions

Depth
93.9 mm
Height
1.2 Inch
Overall Length
3.7 in
Width
129 mm

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: UL 1863; UL 2043; RoHS Compliant
