SQD NSYTBS342916HT ABS industrial b

Manufacturer: Square-D / Schneider | Catalog # NSYTBS342916HT | Cooper Electric Part # 1724229
$156.45 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

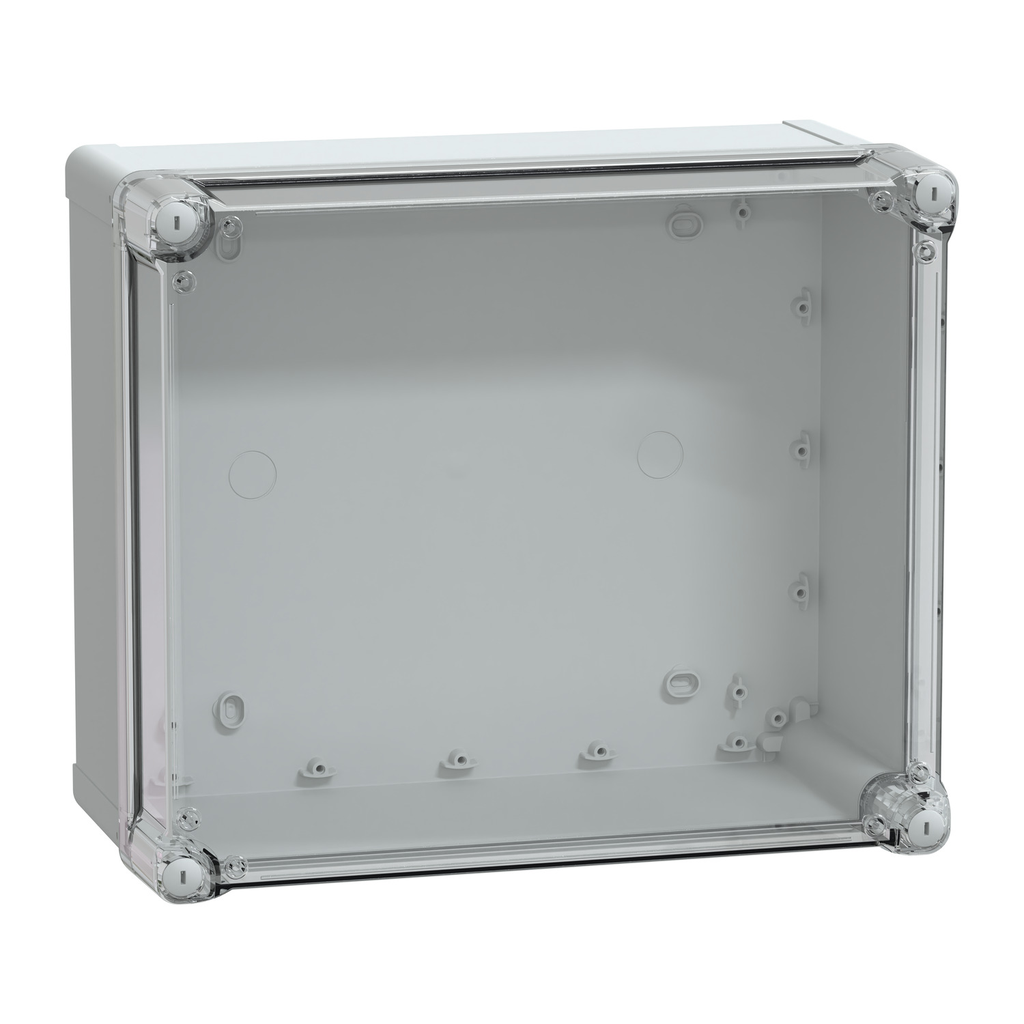

Thalassa TBS industrial ABS box with transparent cover H60. Int is 325 x 275 x 160 mm. Ext is 341 x 291 x 168 mm. Wall mounted enclosure. High transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, T.V. Fire resistance 650.. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40.C)/(-25 to 60.C).

Technical Information

Body Type
One Piece Moulded
Lock Type
Captive Screw Flat Outside Sealed Area
Material
45 %
Net Weight
1.7 kg
Standard
IEC 62208
Storage Temperature
-15-40 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480165576
Color
Gray RAL 7035),Transparent
GTiN
03606480165573
Product UPC
60648016557
Weight
1.7 kg

Dimensions

Depth
168 mm
Height
13.43 in
Warranty Length
18 mth
Width
11.46 in

Certifications and Compliance

Certifications
TV
Country of Origin
Hungary
Features
  • Made with 45% of recycled ABS plastic content
  • Sealed against dust and water (IP66)
  • Robust and impact resistant (IK07)
  • Wide usage temperature -25C to 60C
  • Fire resistant up to 650C
  • Class II electrical insulation to avoid risks
  • Only a flat screwdriver needed to use
  • Easy to install with 3 fixing ways
  • Captive flat screws for secure fixing cover
  • TV certified
