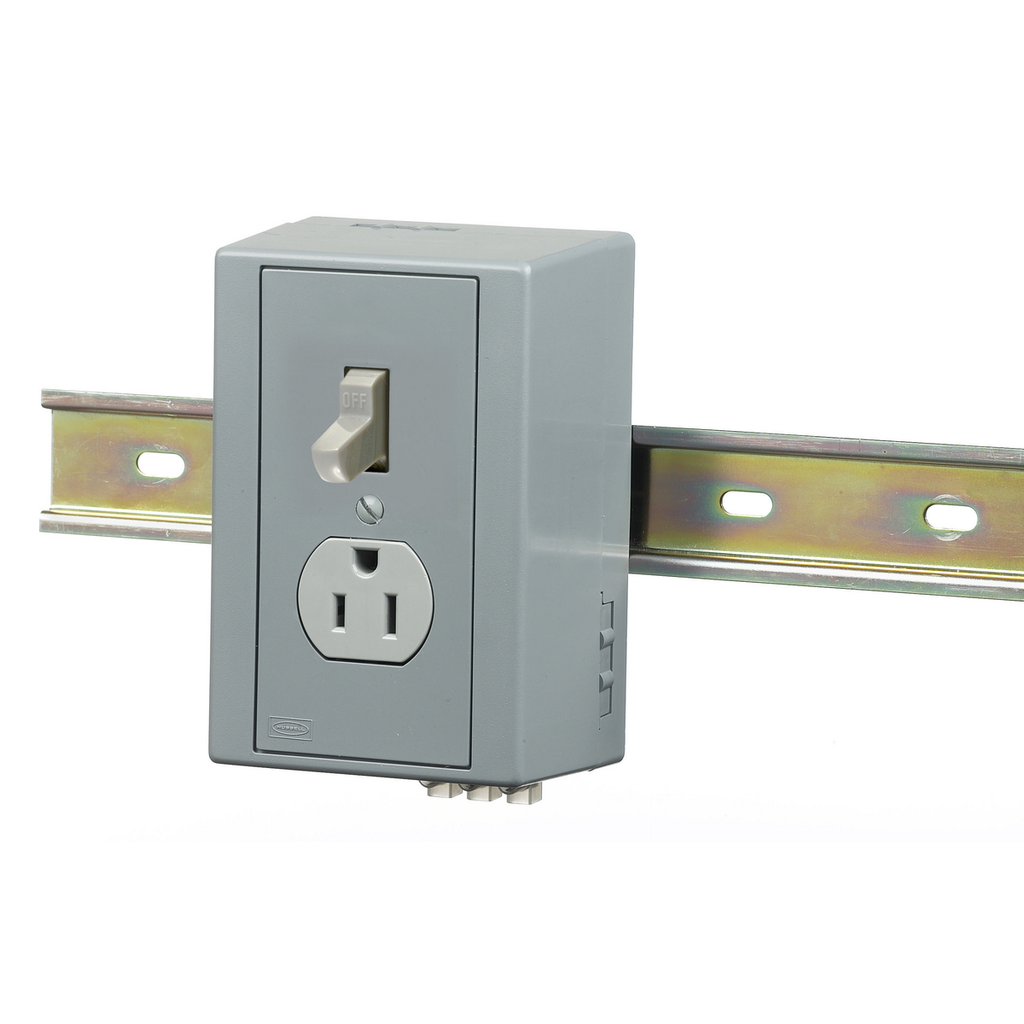

Hubbell DRUB6404DIN RAIL BOX, COMBO TOG/Receptacle, GRY

Manufacturer: Hubbell Wiring Device | Catalog # DRUB6404 | Cooper Electric Part # 1723416
$105.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
DIN Rail Utility Box, Combo Toggle/Receptacle, Gray.

Technical Information

Amperage
20 Amp
Applications
Unit Pre-Wired with Combo Device Switch and Receptacle
Cable Entry
Terminals
Conductor Size
14-12 AWG
Current
20 Amp
Horsepower
1 hp
Material
Composite
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
5.62 in x 3.31 in x 2.54 in
Standard
UL
Switch Type
Single Pole
Type
Box and Device
Voltage
125 Volt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
DIN Rail Utility Box

General Product Info

12-Digit UPC
783585108292
Color
Gray
Construction
Molded And Fabricated
GTiN
00783585108292
Product UPC
78358510829
Weight
1.2 lb

Dimensions

Height
2.54 Inch
Length
5.62 Inch
Width
3.31 in

Certifications and Compliance

Country of Origin
China
Features
  • It provides utility power to any control cabinet
  • Optional auxiliary contacts for feed through capability
  • Pre-wired \"kits\" are available for end-user customization
  • 15A 125V, 2-Pole 3-Wire Grounding
