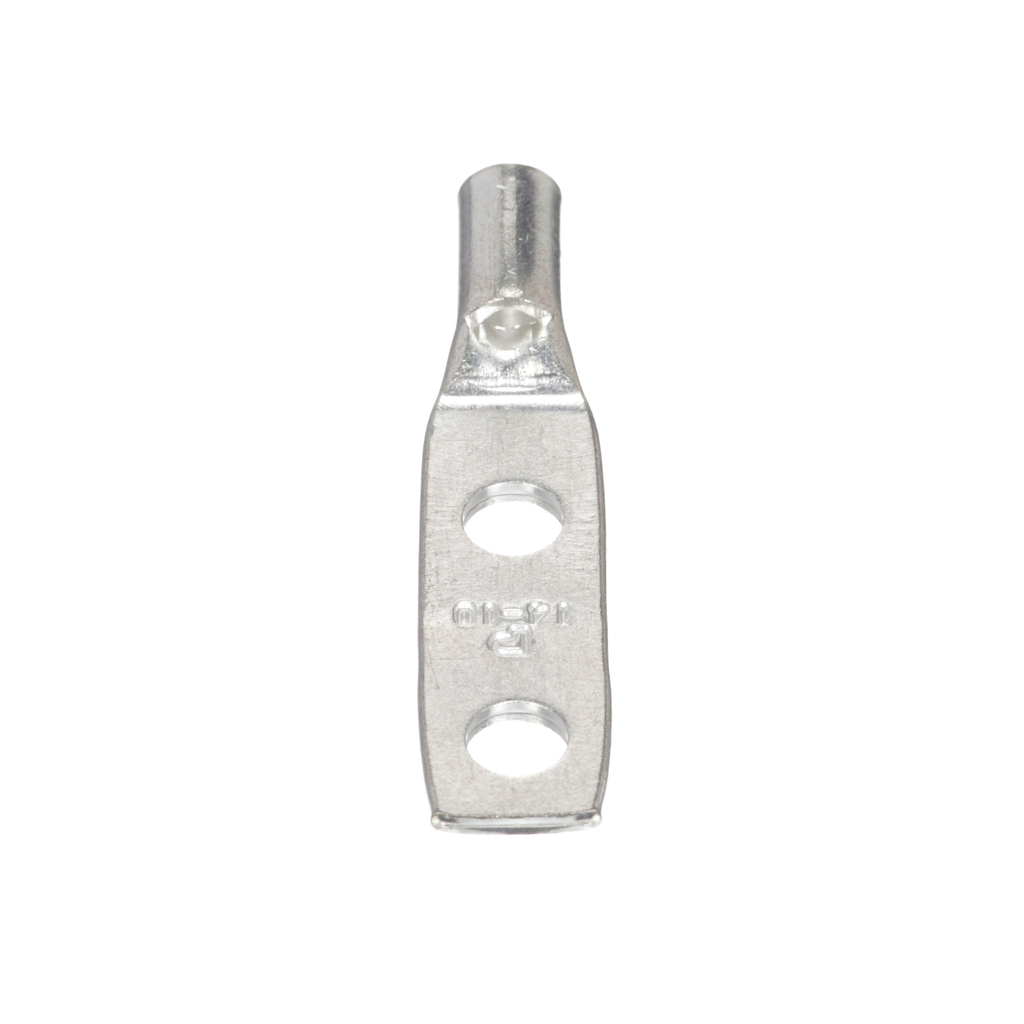

Panduit LCD10-10A-L Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug

Manufacturer: Panduit Corp | Catalog # LCD10-10A-L | Cooper Electric Part # 1722475
$1,002.04/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing
The LCD10-10A-L Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
0.38 in
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
2 Hole
Size
#14 #10 AWG Code STR, #12 #10 AWG Code SOL
Stud Size
0.19 In.
Tongue Thickness
0.06 in
Tongue Type
Standard
Tongue Width
0.38 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983972159
GTiN
00074983972159
Product UPC
07498397215

Dimensions

Outer Diameter
0.22 in
Overall Length
1.69 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
