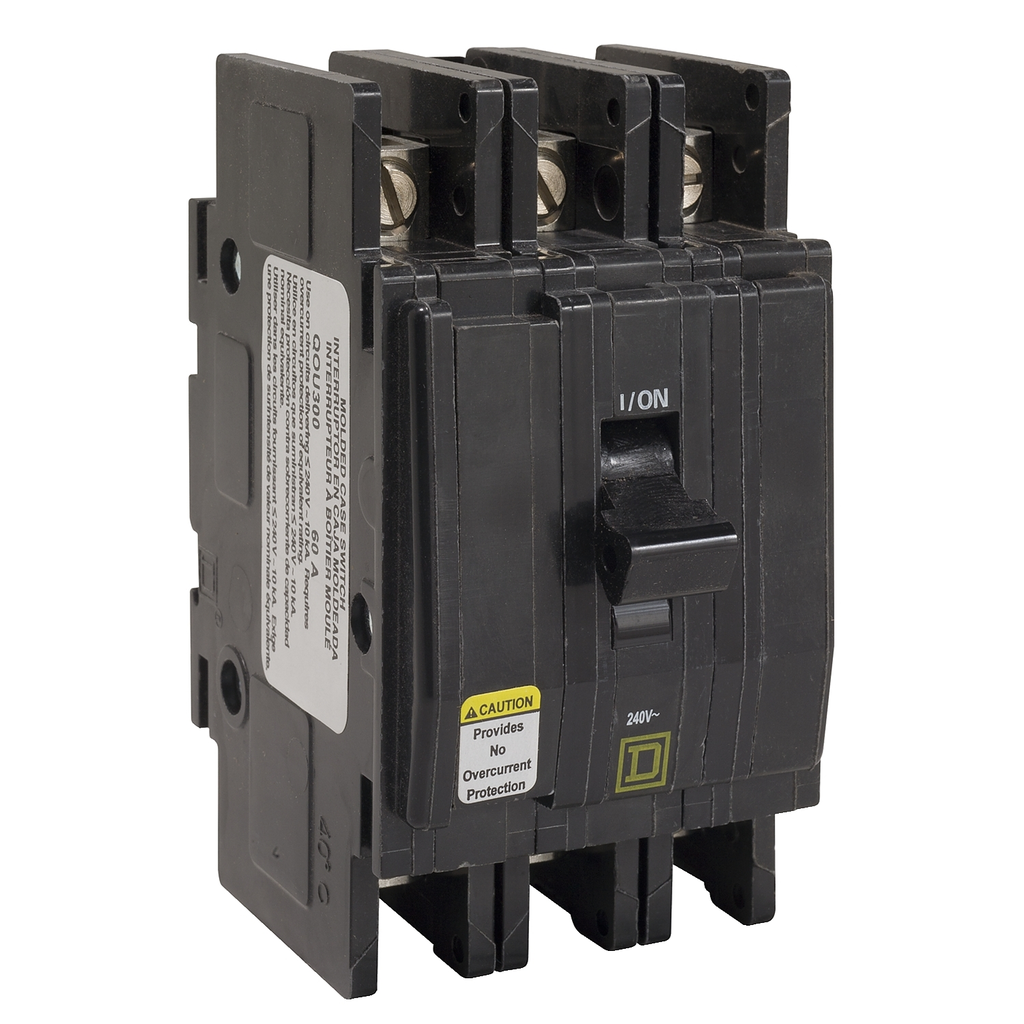

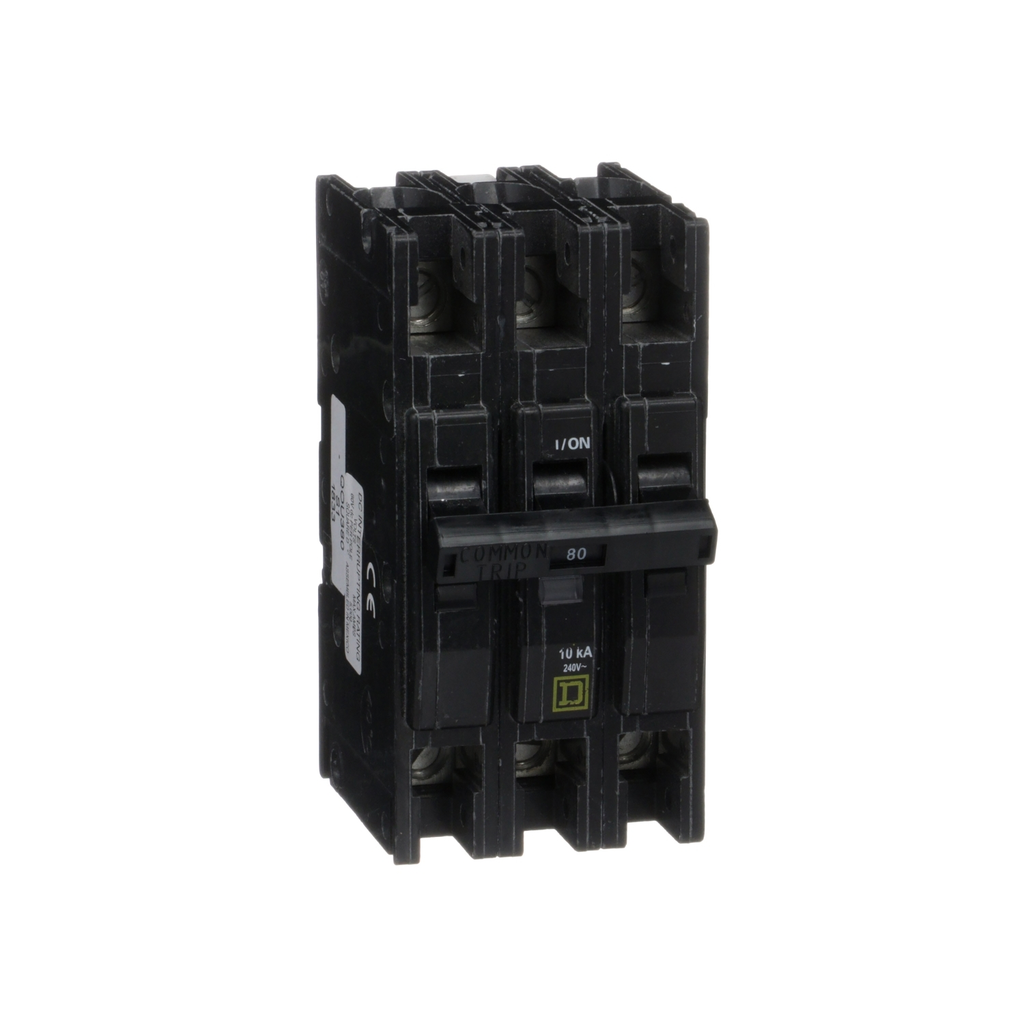

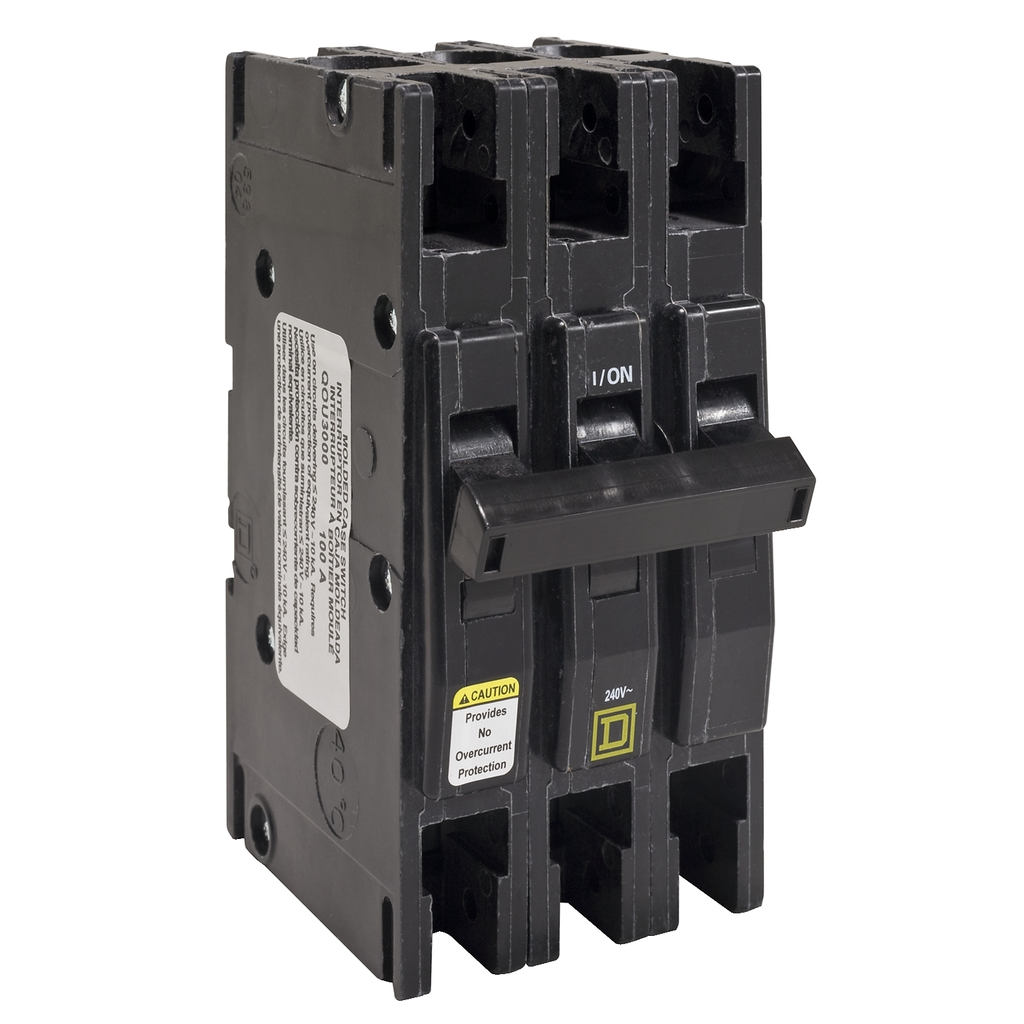

Square D QOU380 Miniature Circuit Breaker 80A 240V

Manufacturer: Square-D / Schneider | Catalog # QOU380 | Cooper Electric Part # 172040
$449.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
QO™ and QOU Miniature Circuit Breakers, QOU380, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.

Technical Information

Amperage
80 Amp
Applications
QOU
Circuit Breaker Type
Standard
Interrupt Rating
10 kAIC
Line Rated Current
80 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
Short Circuit Current
10 kA
TC Connection
LINE: BOX LUG - LOAD: BOX LUG #12-2/0 AWG(AL/CU)
Type
Miniature circuit-breaker
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QOU

General Product Info

12-Digit UPC
785901060314
GTiN
00785901060314
Product UPC
78590106031

Dimensions

Depth
2.95 Inch
Height
4.45 Inch
Length
2.95 Inch
Warranty Length
18 mth
Width
2.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Electrical Connection
  • slotted box lugs, line side
  • slotted box lugs, load side
Accessories
  • BCV
  • QOUMF3B
  • QOUHFSC1
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
Accessory Products
  • BCV
  • QOUMF3B
  • QOUHFSC1
Persona Type Ids
  • EU
  • LC
  • OM
Tightening Torque
  • 45-45 lbf.in (AWG 12...AWG 2/0)
AWG Gauge
  • AWG 12...AWG 2/0 aluminium/copper
UE Rated Operational Voltage
  • 120/240 V AC
  • 240 V AC
  • 120 V AC
  • 60 V DC
