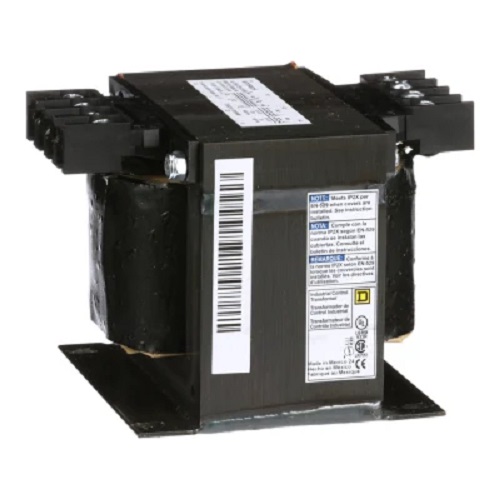

Product image for Square D 9070T500D12 500 VA 480 VAC Primary 240 VAC Secondary 1-Phase Control Transformer
Image thumbnail 0
Image thumbnail 1
Email

Square D 9070T500D12 500 VA 480 VAC Primary 240 VAC Secondary 1-Phase Control Transformer

Manufacturer: Square-D / Schneider | Catalog # 9070T500D12 | Cooper Electric Part # 172034
$683.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Transformer, Type T, industrial control, 500VA, 1 phase, 240/480V primary, 240V secondary, 115C rise

Technical Information

Applications
SPECIFICALLY DESIGNED TO HANDLE HIGH INRUSH ASSOCIATED WITH CONTACTORS AND RELAYS FOR APPLICATIONS SUCH AS CONVEYOR SYSTEMS, PAINT LINES, PUNCH PRESSES OR OVERHEAD CRANES
Enclosure
OPEN
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
500 VA;500 VA UL;500 VA CSA;500 VA NOM;300 VA
Primary Voltage
480 V
Secondary Voltage
240 V
TC Connection
SCREW CLAMP
Temperature Rating
115 DEGREES C
Temperature Rise
115 degrees C
Type
T
Voltage
220 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901313922
GTiN
00785901313922
Product UPC
78590131392

Dimensions

Depth
5.46 Inch
Height
3.8 Inch
Warranty Length
18 mth
Width
4.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
USA
