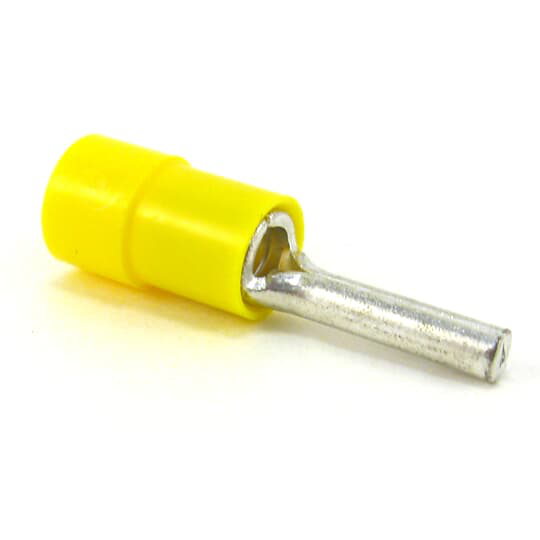

Product image for Catamount TV10-14PT-XV 0.266 Inch 12 to 10 AWG Straight Pin Vinyl Insulated Funnel Entry Crimp Terminal
Image thumbnail 0
Image thumbnail 1
Email

Catamount TV10-14PT-XV 0.266 Inch 12 to 10 AWG Straight Pin Vinyl Insulated Funnel Entry Crimp Terminal

Manufacturer: Catamount / Thomas & Betts | Catalog # TV10-14PT-XV | Cooper Electric Part # 1714060
$50.66/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Insulated Vinyl Pin Terminals for Wire Range 12-10, Yellow, Reusable Packaging

Technical Information

Applications
For Copper Conductors
Barrel Length
0.512 in
Barrel Type
Brazed Seam, Internal Serration
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Pin Length
0.551 in
Standard
UL E9809
Temperature Rating
75 degrees C
Type
Insulated
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Catamount®

General Product Info

12-Digit UPC
728494144641
Color
Yellow
Finish
Electro-Tin Plated
GTiN
05414363489276
Product UPC
72849414464
Used With
Pin-Style Terminal Blocks

Dimensions

Height
4 Inch
Overall Length
1.063 in
Width
10 in
Features
  • For Use in Pin-Style terminal blocks. Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations.
Certifications
  • CSA
  • UL
