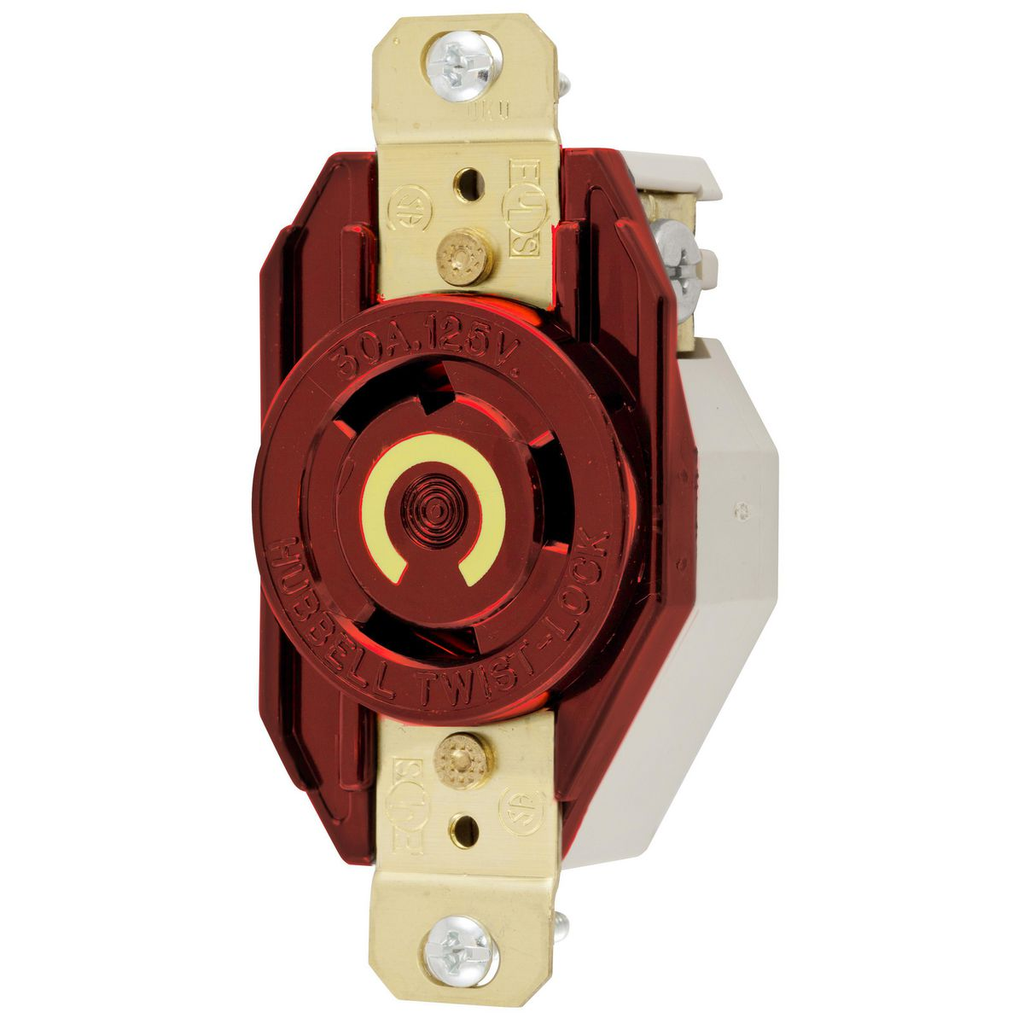

Product image for HWDK HBL2610M7 LKG RCPT, 30A 125V,
Email

HWDK HBL2610M7 LKG RCPT, 30A 125V,

Manufacturer: Hubbell Wiring Device | Catalog # HBL2610M7 | Cooper Electric Part # 1711494
$105.95/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Locking Device Receptacle; Type 1-Flush; Constructional Feature Corrosion Resistant; Voltage Rating 125 Volt AC; Current Rating 30 Amp; Number of Poles 2; Number of Wires 3; Ground Type Grounding; Face Outer Diameter 1.563 Inch; Material Nylon (Face), Glass-Reinforced Thermoplastic Polyester (Base); Color Red; Wiring Back, Side; Mounting Flush; Approval UL 498, CSA C22.2; Dielectric Voltage 2000 Volt; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Terminal Type Screw; Application Industrial; Applicable Standard Federal Specification WC-596

Technical Information

Current
30 Amp
Grounding
Grounding
Material
Glass-Reinforced Thermoplastic Polyester (Base),Nylon (Face)
Mounting Type
Flush
Number of Poles
2 Pole
Number of Wires
3 Wire
Voltage
125 Volt

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585569581
Color
Red
GTiN
00783585569581
Product UPC
78358556958

Dimensions

Height
1.7 Inch
Length
4.2 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Wire Restraint Recess for Both Back and Side Wiring, Greatly Reduces the Possibility of Loosening the Terminal Connection
  • Face Color Coding by Voltage Facilitates Locating and Mating of Proper Devices
  • All Brass Mounting and Grounding System Provides a Lower Resistance Ground Path and Greater Resistance to Corrosion than Steel Mounting Systems
Additional Information
  • Dielectric Voltage 2000 Volt
  • Wire Size 16 to 8 AWG
  • Enclosure Rating IP20
  • Temperature Rating -40 to 75 Deg C
  • Terminal Type Screw
  • Application Industrial
  • Applicable Standard Federal Specification WC-596
