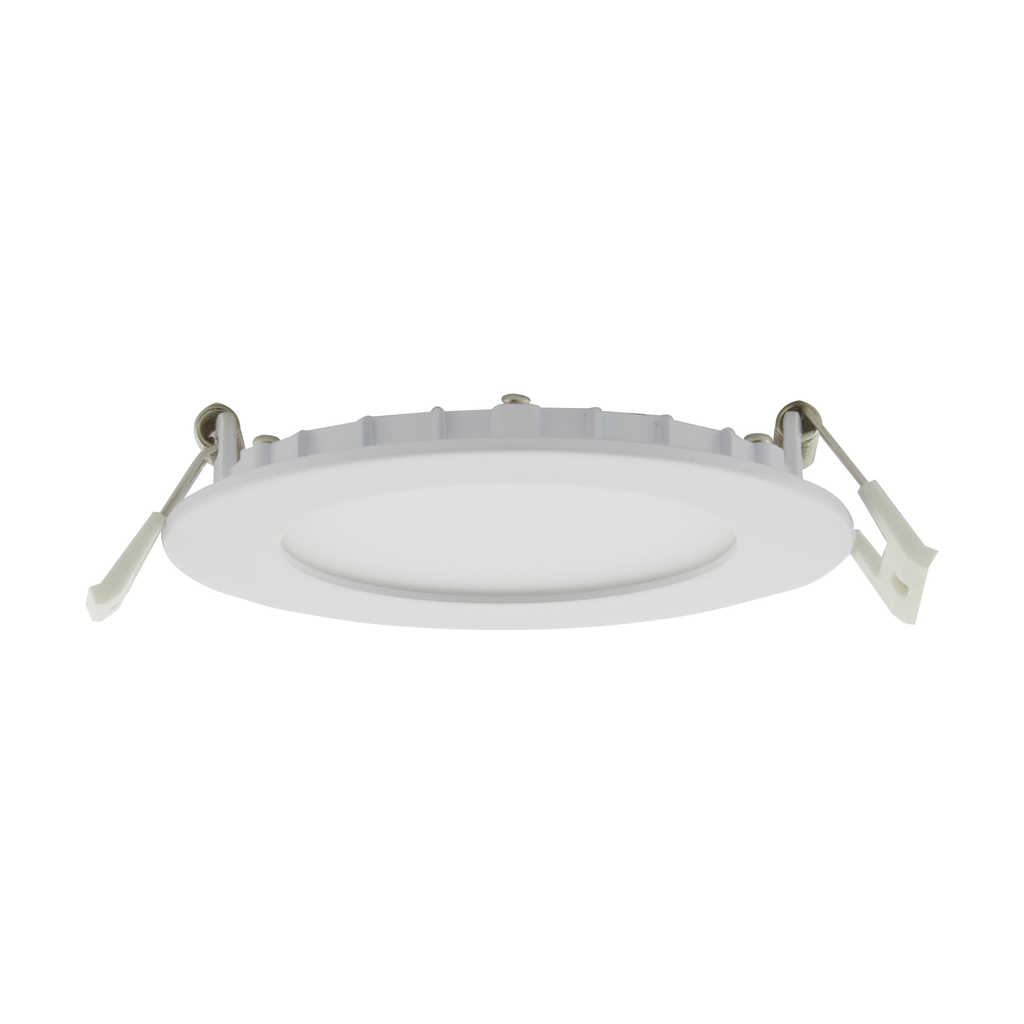

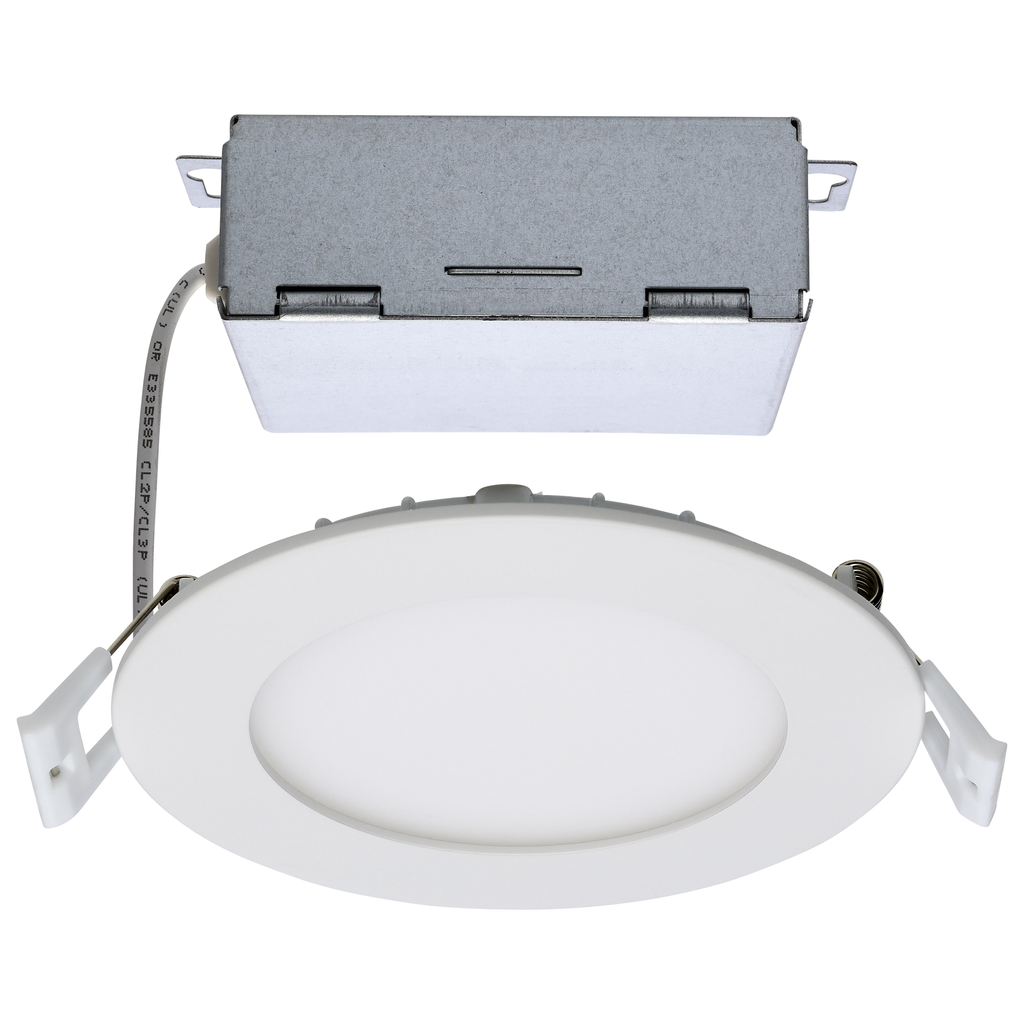

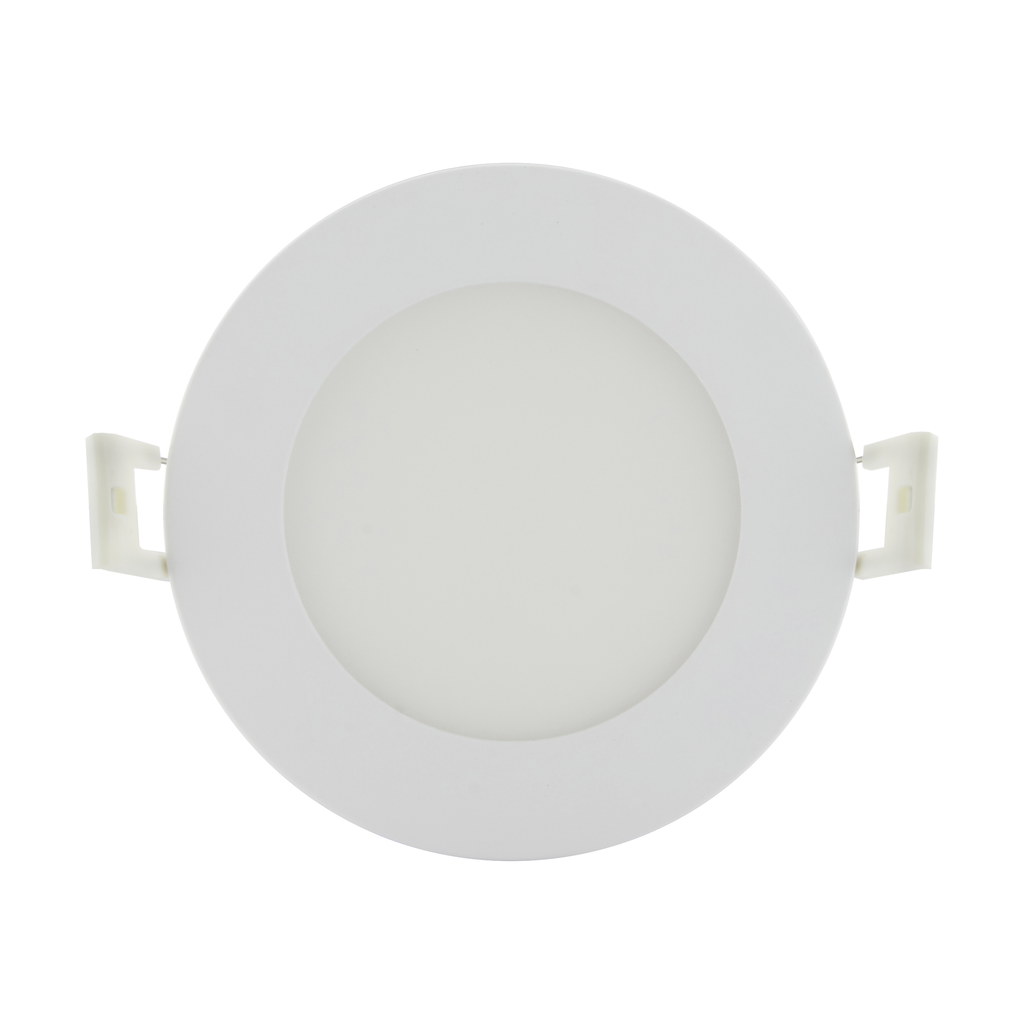

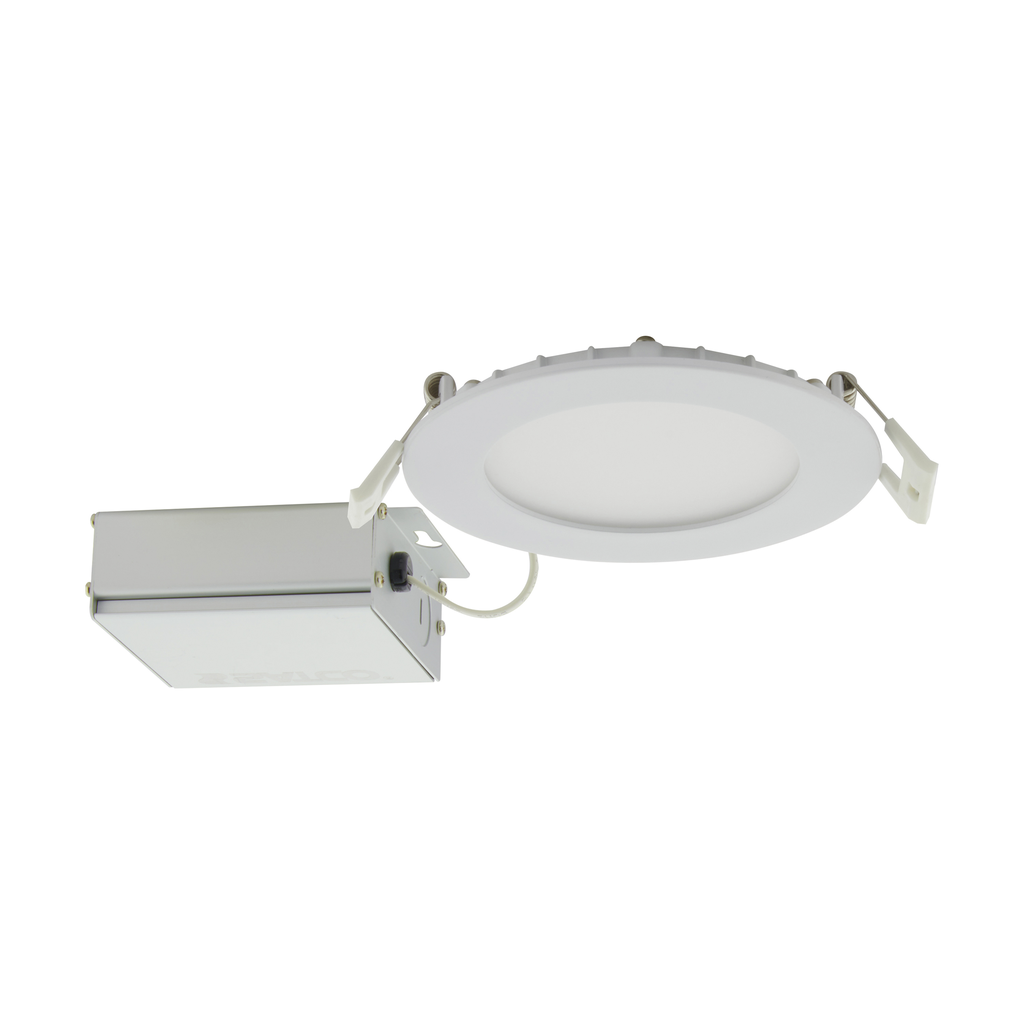

Product image for Satco S11826 10 Watt; LED Direct Wire Downlight; Edge-lit; 4 inch; CCT Selectable; 120 volt; Dimmable; Round; Remote Driver
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Satco S11826 10 Watt; LED Direct Wire Downlight; Edge-lit; 4 inch; CCT Selectable; 120 volt; Dimmable; Round; Remote Driver

Manufacturer: Satco | Nuvo | Catalog # S11826 | Cooper Electric Part # 1707830
$24.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
10W LED Direct Wire Downlight - Edge-lit 4 in. CCT Selectable - 120V Dimmable - Round Remote Driver

Technical Information

Average Rated Life
50000 hr
Beam Angle
108
Beam Spread
108
Color Temperature
Cool White,Warm White
Correlated Color Temp
2700 K
Dimmable?
Yes
Incandescent Equivalent
45 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lens Color
Frost
Lens Material
Poly Methyl Methacrylate
Lumens
700 Lumen
Material
Aluminum
Number of Lamps
1
Operating Temperature
-20 degrees C
Power Factor
0.9
Style
Utility
Technology Type
LED
Type
Direct Wire LED Downlight
Voltage
120 Volt
Wattage
10 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923118265
Finish
White
Fixture Type
Round
GTiN
00045923118265
Product UPC
04592311826
Weight
0.71 lb

Dimensions

Diameter
4.72 Inch
Height
0.9 Inch
Warranty Length
5 yr
Width
4.72 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
China
Features
  • ColorQuick CCT Selectable
  • 90 CRI
  • Wet Location Rated
  • Dimmable
  • IC Rated
  • Air Tight Rated
  • Title 24 Compliant
  • 108-Degree Beam Angle
  • 120V
Prop 65
  • Lead
Installation Notes
  • **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
