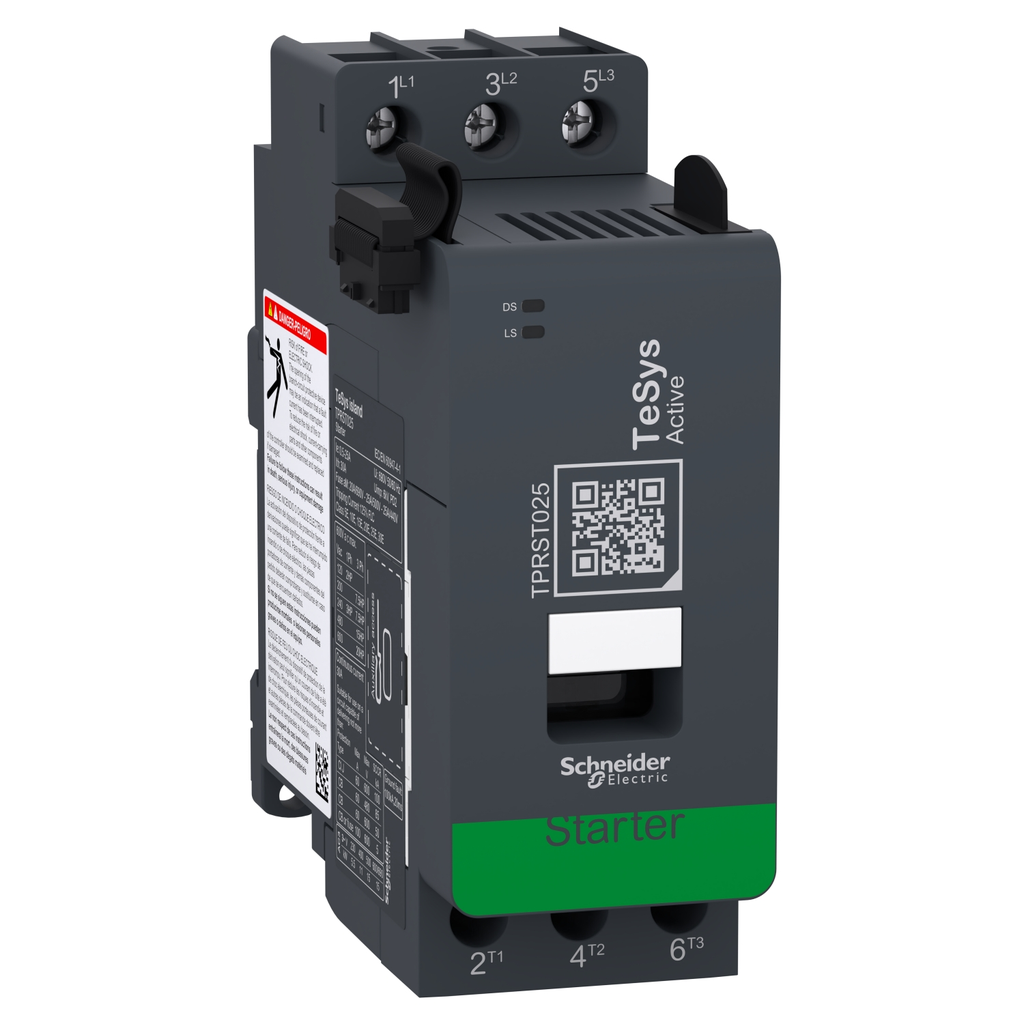

SQUARED TPRST025 Motor starter, TeS

Manufacturer: Square-D / Schneider | Catalog # TPRST025 | Cooper Electric Part # 1703387
$335.76 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys island direct starter, 3 poles, 25A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 25A and motors up to 11kW@400V / 15hp@480V. It provides motor protection functions including thermal overload (setting 0.5-25A

Technical Information

Current
160 mA
Impedance
2 MOhm - Ith 30 A 50 Hz
Mounting Type
Horizontal And Vertical 35 Mm Symmetrical DIN Rail)
Net Weight
0.718 kg
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-1,EN/IEC 60947-4-1,UL 60947-4-1
Storage Temperature
-25-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606489832752
GTiN
03606489832759
Product UPC
60648983275
Weight
0.718 kg

Dimensions

Depth
4.53 in
Height
4.76 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

Certifications
CCC,CSA,EAC,UL
Country of Origin
France
Connections Terminals
  • screw-clamp terminals 1 1.5-10 mm² AWG 16...AWG 8)rigid
  • screw-clamp terminals 1 1.5-10
Overvoltage Category
  • III for Ue <= 480 V
  • II for Ue <= 690 V
Current Consumption
  • 160 mA contactor sealed
  • 160 mA contactor closing
IE Rated Operational Current
  • 25 A (at <50 °C) at <= 440 V AC-3
  • 30 A (at <50 °C) at <= 440 V AC-1
  • 30 A (at <50 °C)
ITH Conventional Free Air Thermal Current
  • 30 A (at 50 °C)
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005289_3D-CAD&p_File_name=MCADPD0005289_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005289_3D-CAD&p_File_name=MCADPD0005289_2D-back.dwg
  • https://downlo
Mounting Mode
  • horizontal and vertical 35 mm symmetrical DIN rail)
Power Dissipation Per Pole
  • 1.25 W AC-3 - Ith 25 A
  • 1.8 W AC-1 - Ith 30 A
Maximum Operating Rate
  • 3600 cyc/mn AC-3
Metering Type
  • time device ON
  • time device switch ON
  • number of faults
  • number of switching cycles
  • number of device power cycles
  • average current Iavg
  • average voltage Vavg
  • max current Imax
  • max voltage Vmax
  • active and reactive power with voltage module
  • active and reactive p
Device Presentation
  • direct starter connected to an automation controller through a bus coupler
  • operational only when connected to a bus coupler
Communication
  • TPRBCEIP
  • TPRBCPFB
  • TPRBCPFN
Standards
  • EN/IEC 60947-1
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
Operating Time
  • < 100 ms closing
  • < 30 ms opening
UC Control Circuit Voltage
  • 24 V DC supplied by the bus coupler
ICW Rated Short Time Withstand Current
  • 380 A 40 °C - 1 s
  • 240 A 40 °C - 10 s
  • 120 A 40 °C - 1 min
  • 50 A 40 °C - 10 min
UI Rated Insulation Voltage
  • 690 V IEC 60947-4-1
  • 600 V UL 60947-4-1
  • 600 V CSA C22.2 No 60947-4-1
Average Impedance
  • 2 mOhm - Ith 30 A 50 Hz
Protection Type
  • thermal overload protection
  • motor overheat
  • overcurrent
  • undercurrent
  • jam
  • long start
  • stall
  • rapid cycle lockout
  • rapid restart lockout
  • phase sequence
  • phase reversal
  • phase loss
  • phase unbalance
  • ground current
Accessories
  • LAD9R1
  • LAD9P3
  • LAD9V6
  • LAD9V2
  • LAD9V5
Electrical Durability
  • 1.65 Mcycles 25 A AC-3 440 V
  • 2 Mcycles 30 A AC-1 440 V
Maximum Horse Power Rating
  • 2 hp at 120 V AC 60 Hz for 1 phase motors
  • 3 hp at 240 V AC 60 Hz for 1 phase motors
  • 3
Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6
  • 1 gn 13-200 Hz) IEC 60068-2-6
Fire Resistance
  • 960 °C UL 94
  • 850 °C IEC 60695-2-1
  • 650 °C IEC 60695-2-12
Motor Power KW
  • 5.5 kW at 230 V 50 Hz (AC-3)
  • 11 kW at 380...415 V 50 Hz (AC-3)
  • 11
Electromagnetic Compatibility
  • electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
  • electrostatic discharge immunity test, level 3,
Accessory Products
  • LAD9R1
  • LAD9P3
  • LAD9V6
  • LAD9V2
  • LAD9V5
Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13
Tightening Torque
  • 2.5-2.5 N.m flat Ø 6 mm
  • 2.5-2.5 N.m Philips No 3
Poles Description
  • 3P 3 NO
Operating Altitude
  • 0...6561.68 ft (0...2000 m) without derating
Shock Resistance
  • 15 gn 11 ms) IEC 60068-2-27
IRMS Rated Making Capacity
  • 450 A at 440 V conforming to IEC 60947
Product Compatibility
  • TPRBC bus coupler
  • TPRVM voltage interface module
Power Dissipation In W
  • 6.6 W at Ie AC-3
Local Signalling
  • 1 LED (green/red) for DS (device status)
  • 1 LED (green/red) for LS (load status)
Ambient Air Temperature For Operation
  • -10-50 °C without derating
  • 50-60 °C with current derating
UE Rated Operational Voltage
  • <= 480 V AC 47...63 Hz for overvoltage cat. III
  • <= 690 V AC 47...63 Hz for overvoltage cat. II
  • <= 690 V AC 47.
Rated Breaking Capacity
  • 450 A at 440 V conforming to IEC 60947
Product Certifications
  • CCC
  • UL
  • CSA
  • EAC
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-1
