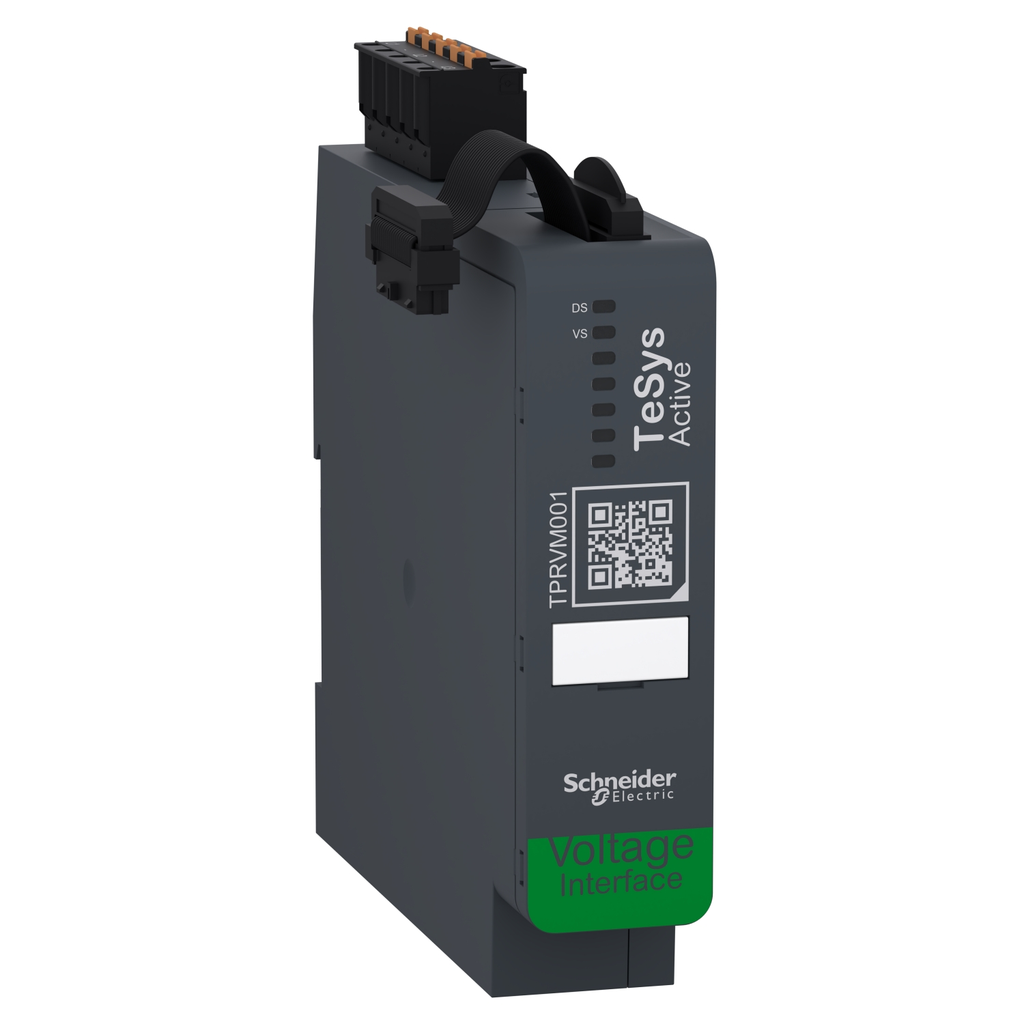

SQUARED TPRVM001 Voltage interface

Manufacturer: Square-D / Schneider | Catalog # TPRVM001 | Cooper Electric Part # 1703385
$215.18/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Technical Information

Current
2 mA
Mounting Type
Horizontal And Vertical 35 Mm Symmetrical Rail)
Net Weight
0.159 kg
Standard
CSA C22.2 No 61010-2-201,IEC 61010-2-201,UL 61010-2-201
Storage Temperature
-25-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606489832882
GTiN
03606489832889
Product UPC
60648983288
Weight
0.159 kg

Dimensions

Depth
114 mm
Height
118 mm
Warranty Length
18 mth
Width
25 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
CSA,EAC (pending),UL
Country of Origin
Mexico
Prop 65
  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Compatible Products
  • TPRBCEIP
  • TPRBCPFB
  • TPRBCPFN
