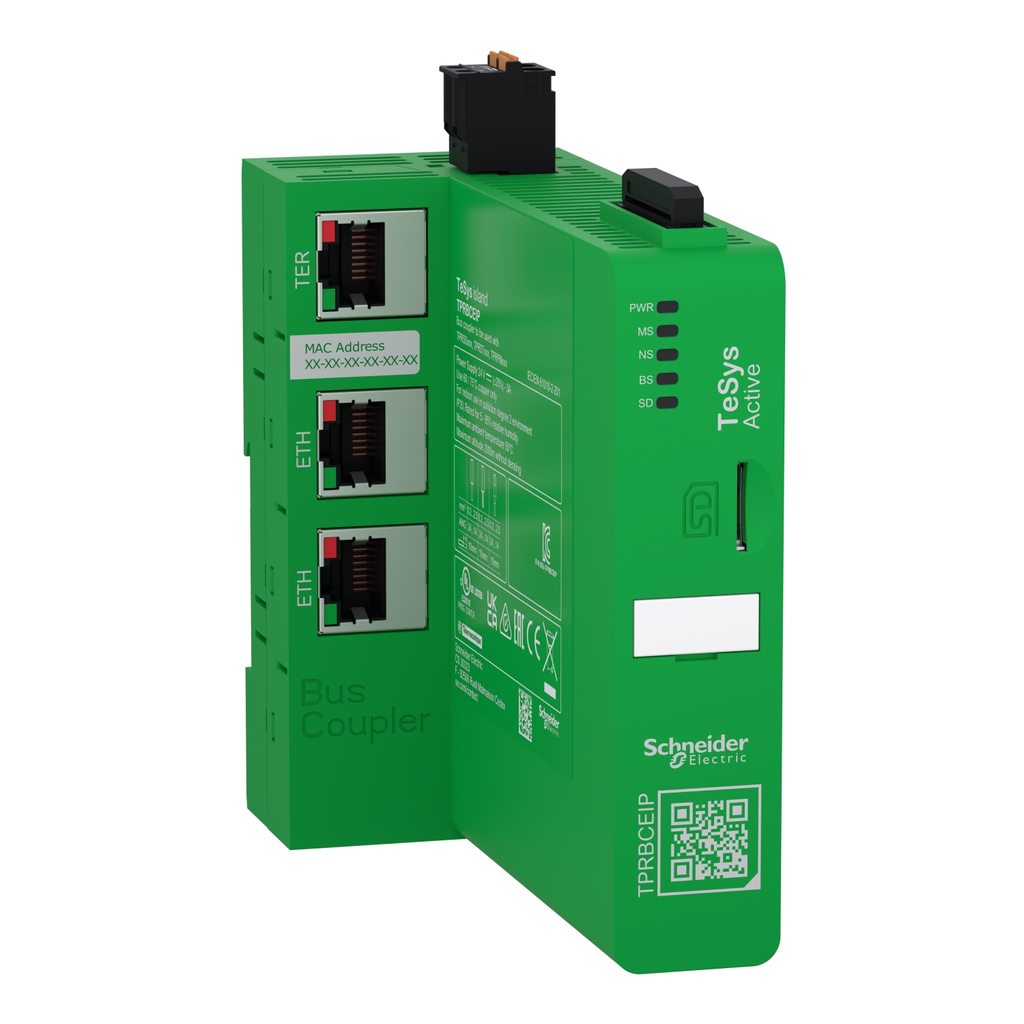

SQUARED TPRBCEIP Bus coupler, TeSys

Manufacturer: Square-D / Schneider | Catalog # TPRBCEIP | Cooper Electric Part # 1703382
$533.96 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over EtherNet/IP or Modbus TCP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for EtherNet/IP or Modbus TCP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified.

Technical Information

Current
3 Amp
Impedance
50 ohm
Mounting Type
Horizontal And Vertical 35 Mm Symmetrical Rail)
Net Weight
0.204 kg
Standard
CSA C22.2 No 61010-2-201,EN/IEC 60947-4-1,EN/IEC 61010-2-201,UL 61010-2-201
Storage Temperature
-25-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606489832899
GTiN
03606489832704
Product UPC
60648983270
Weight
0.204 kg

Dimensions

Depth
114 mm
Height
4.65 in
Warranty Length
18 mth
Width
1.97 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Carbon black, which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
Achilles Level 2,CSA,EAC,UL
Country of Origin
Indonesia
Features
  • Full integration with SoMove/ControlExpert/MachineExpert for the programming of the island
  • One single 24V DC power supply for the complete island
  • Manages motors and other electrical loads up to 65 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
