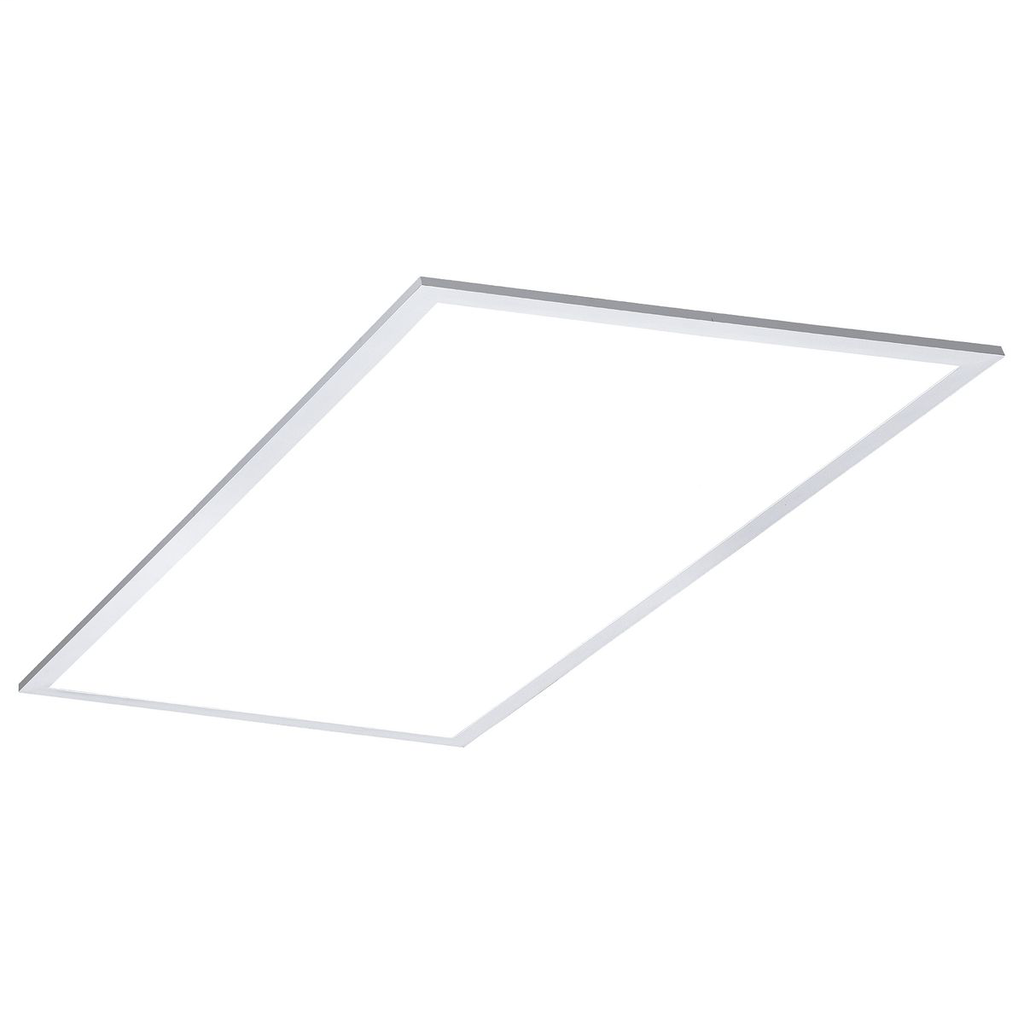

Product image for HLA CBT14-LS40 1X4 BACK-LIT LED FLAT PANEL SELECTABLE LUMENS (2750/3300/4400) 4000K 0-10V DIMMING
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HLA CBT14-LS40 1X4 BACK-LIT LED FLAT PANEL SELECTABLE LUMENS (2750/3300/4400) 4000K 0-10V DIMMING

Manufacturer: Hubbell Lighting | Catalog # CBT14-LS40 | Cooper Electric Part # 1702047
$75.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
CBT back-lit troffer, 1 FT x 4 FT, Color Temperature: 4000 K, Lumen Output Category: Switchable 4400/3300/2750, Mounting Type: recessed grid ceilingsurface mount, Driver type: 0-10 V 10% dimming, Voltage Rating: 120-277 VAC.

Technical Information

Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4000 K
Lumens
2,500 Lumen
Material
Aluminum
Wattage
25 Watt

Manufacturer Information

Brand
Columbia Lighting

General Product Info

12-Digit UPC
840141400020
Product UPC
84014140002
Weight
4.6 lb

Dimensions

Height
1.72 Inch
Length
47.76 Inch
Warranty Length
5 yr
Width
11.81 in

Certifications and Compliance

Country of Origin
China
Features
  • Switchable Lumen technology
  • 4400/3300/2750 lumens (1x4 and 2x2)
  • 5500/4400/3300 lumens (2x4)
  • 80 CRI
  • 0-10V dimming to 10%
  • Recessed or surface mount
  • Universal voltage (120-277V)
  • IC rated
  • Smooth even illumination across the face of the luminaire
  • DLC® (DesignLights Consortium) Qualified - see www.designlights.org
