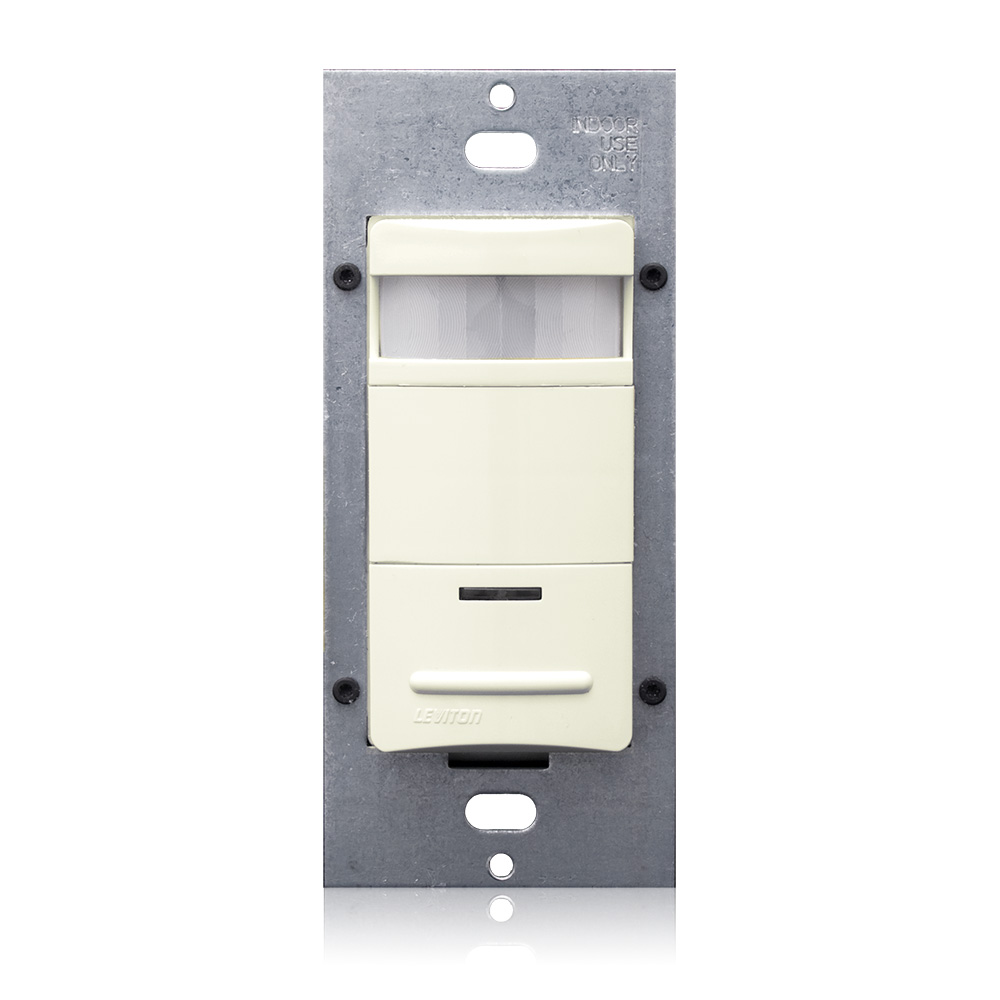

Product image for LEV OSSNL-IDT LA PIR OCC SENS WALL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV OSSNL-IDT LA PIR OCC SENS WALL

Manufacturer: Leviton Mfg Co | Catalog # OSSNL-IDT | Cooper Electric Part # 1701805
$89.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

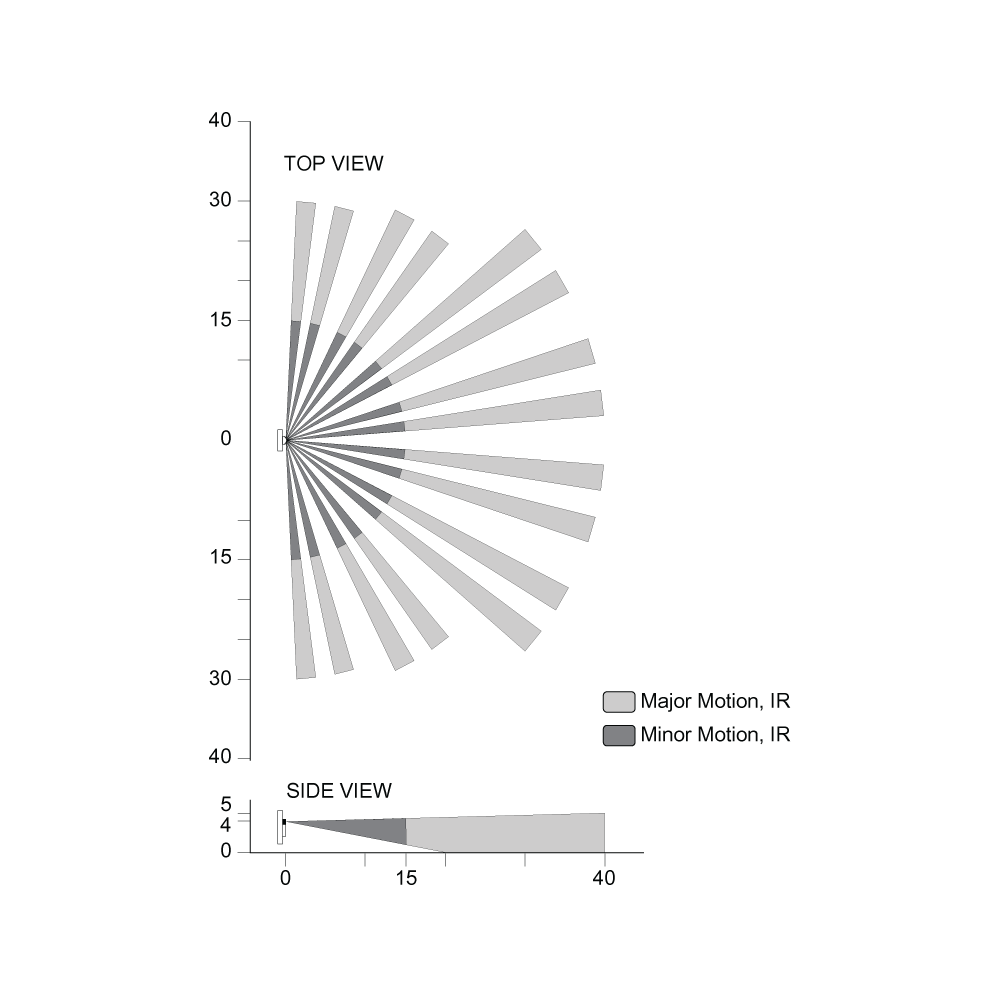

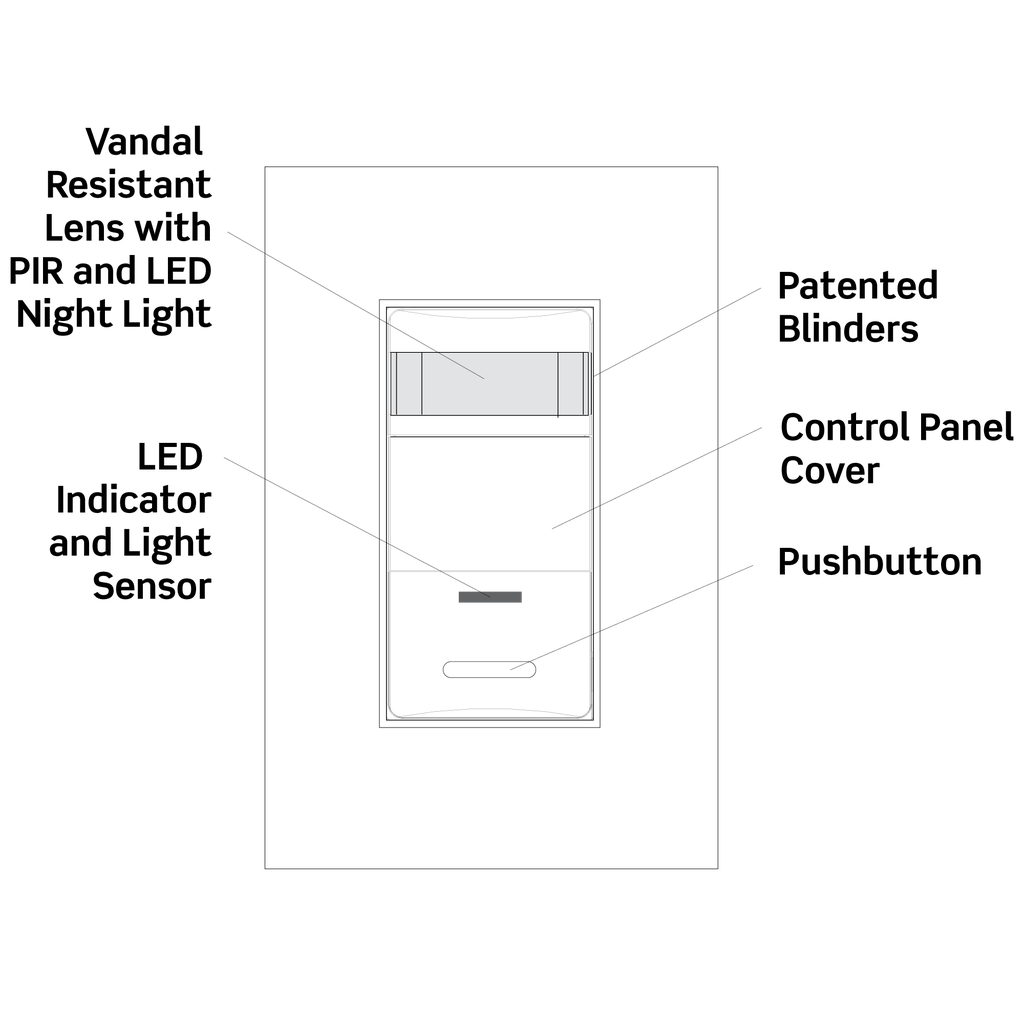

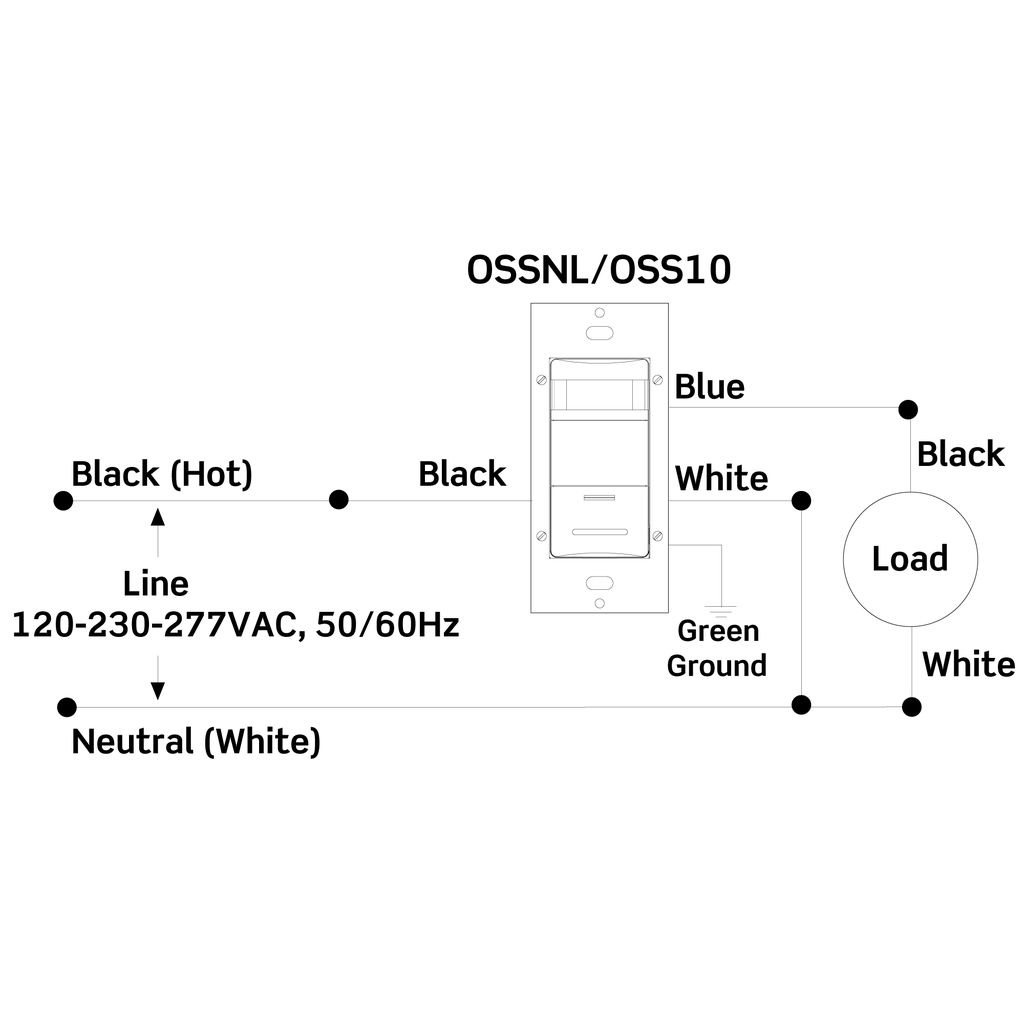

AutoON/AutoOFF PIR Occupancy Sensor (ManualON/AutoOFF selectable) lighting control, 1FC Nightlight (dimmable), Vandal resistant, Manual Wall Switch. Robust Single Latching 10A Relay, Neutral wire required, 120/208/220/230/240/277VAC, 50/60hz, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side), Adjustable time delay between 30s-2h, Light Sensor (Photocell) included for Ambient Light Hold-Off feature. CEC Title 20/24 compliant. USMCA Compliant. Wall plate sold separately. Color: Light Almond

Technical Information

Applications
Commercial
Coverage
1200 sq-ft
Device Type
Occupancy Sensor
Frequency
50/60 Hz
Grade
Commercial
LED Color
Red
Mounting Type
Wall Switch
Operating Temperature
0 degrees C
Power Consumption
120 V
Sensor Type
Wall Switch

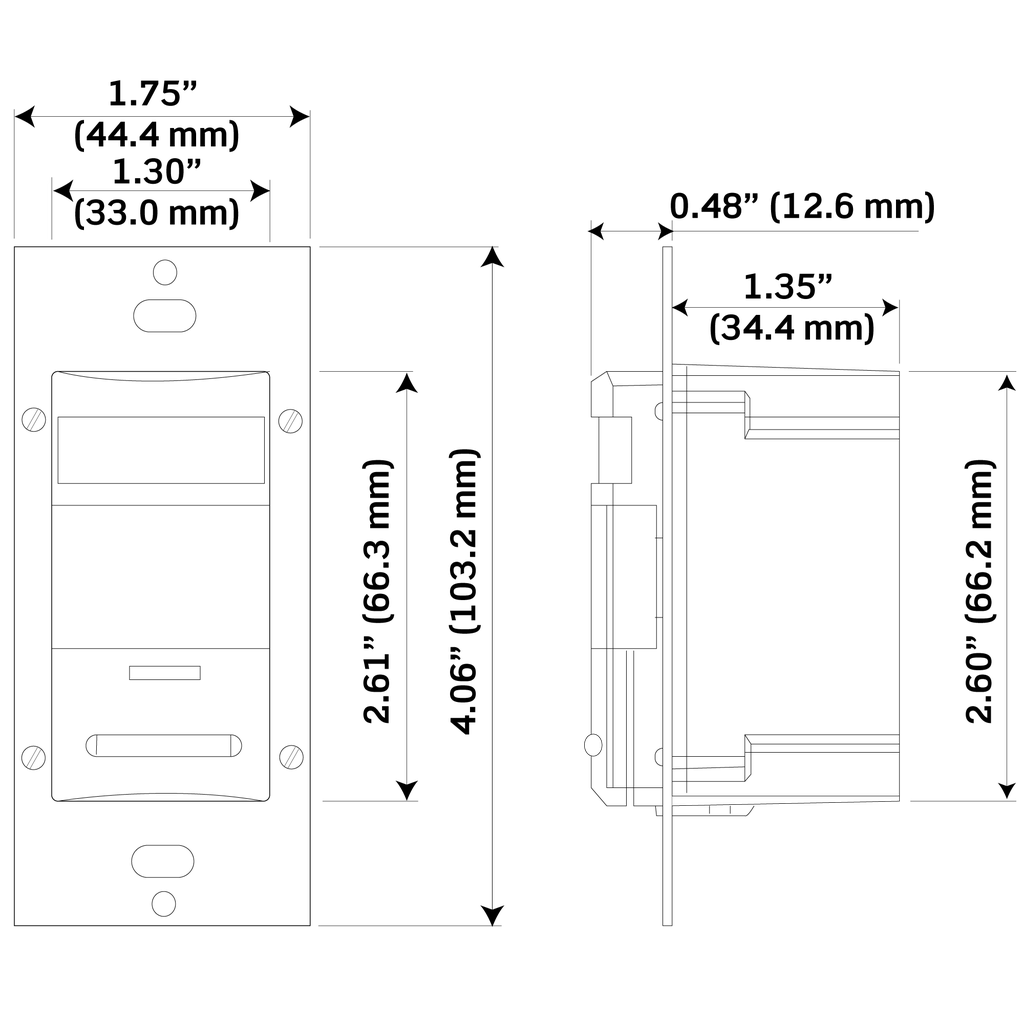

Size
66.2 mm
Standard
CSA C22.2 No. 85,UL E23018,cULus
Storage Temperature
-10 To 85 degrees C
Switch Type
Single-Pole,Single-Pole
Type
0-10 V,Multi-location/3-way/single-pole,Occupancy/Vacancy Sensor Dimmer
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®, True Touch™

General Product Info

12-Digit UPC
078477306925
Color
Almond
Environmental Conditions
0 to 50 50 Deg C Operating
GTiN
00078477306925
Product UPC
07847730692

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Certifications
UL/cUL
Features
  • To?comply?with?T24,?red?LED?indicator?light?flashes?when sensor detects motion to verify detection is active.
  • Time?Delay?adjustment?for?delayed-OFF?time?settings of 30 seconds (for walking test), 10 minutes, 20 minutes,?and?30?minutes.?Allows?customized?adjustments?to?maximize?energy?savings.
  • Light Sensor Adjustable Ambient Light Override ranges?from?approximately?2?foot-candles?(20?lux)?to?500+?foot-candles?(5000+?lux)?to?prevent?lights?from?turning ON automatically during periods of ample natural light, increasing energy savings.
  • Light?sensor?enables?the?load?hold-OFF?feature?once?level has been set.
  • Vacancy?confirmation?-?when?the?time?out?expires?and?the relays turn OFF, a 30 second vacancy confirmation exists?to?turn?the?relays?back?ON.
  • False?detection?circuitry.
  • Presentation?Mode?feature?for?slide?or?film?presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied.
  • LED?NightLight?offers?Guide?Light?functionality.
  • Adjustable?NightLight?illumination?setting?for?continuous or dimmed NightLight.
  • NightLight?Mode?-?the?factory?default?setting?for?the?NightLight Mode is Dimmed Mode. This means the NightLight will automatically dim to 5% of full bright-ness after 2 minutes of no occupancy when activated by the internal light sensor.
  • One?unit?can?be?used?for?120V?through?277V?lighting.?Compatible?with?both?electronic?and?magnetic?ballasts.
  • Relay?switches?at?the?zero?crossing?point?of?the?AC?power?curve?to?ensure?maximum?contact?life?and?compatibility with electronic ballasts.
  • Exclusive?Levition?H.I.S.?Circuitry.?Specifically?designed?to handle todays high inrush electronic ballast loads and offer unmatched durability and service.
