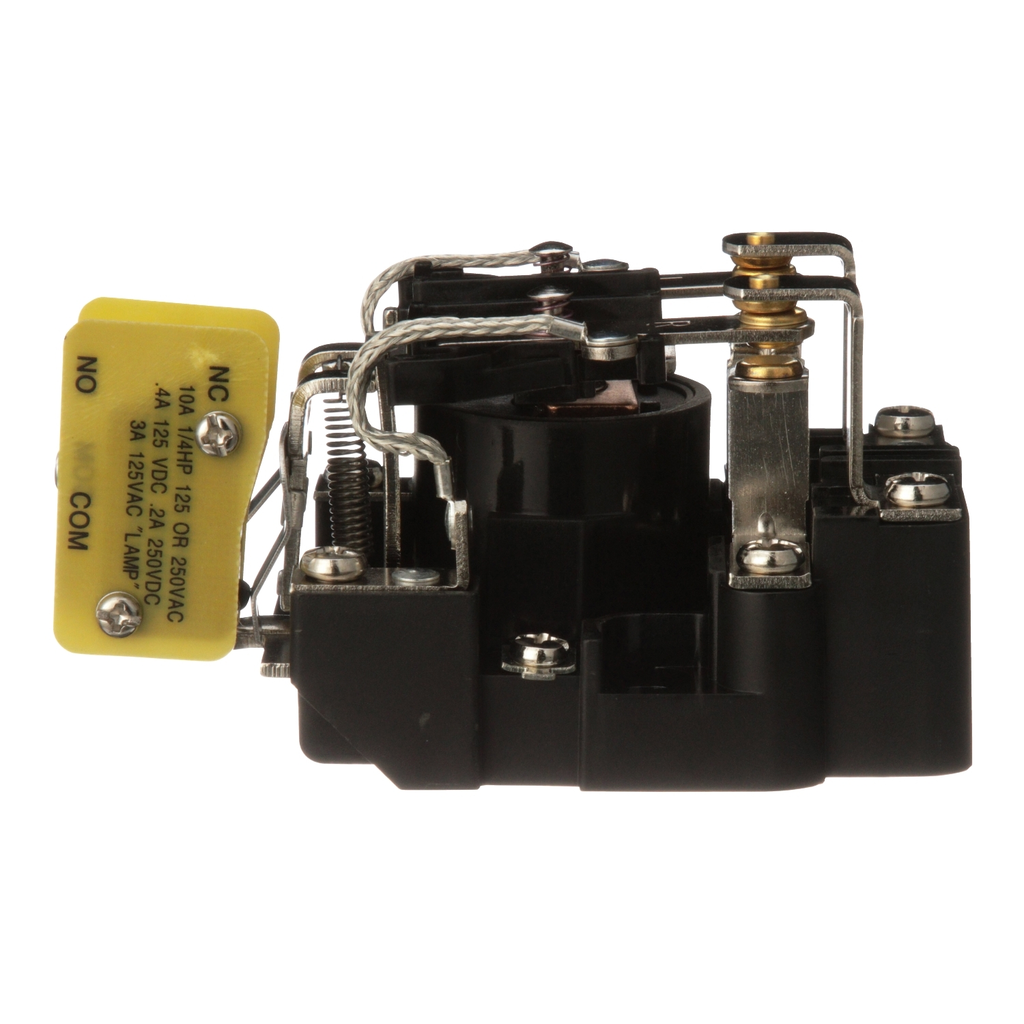

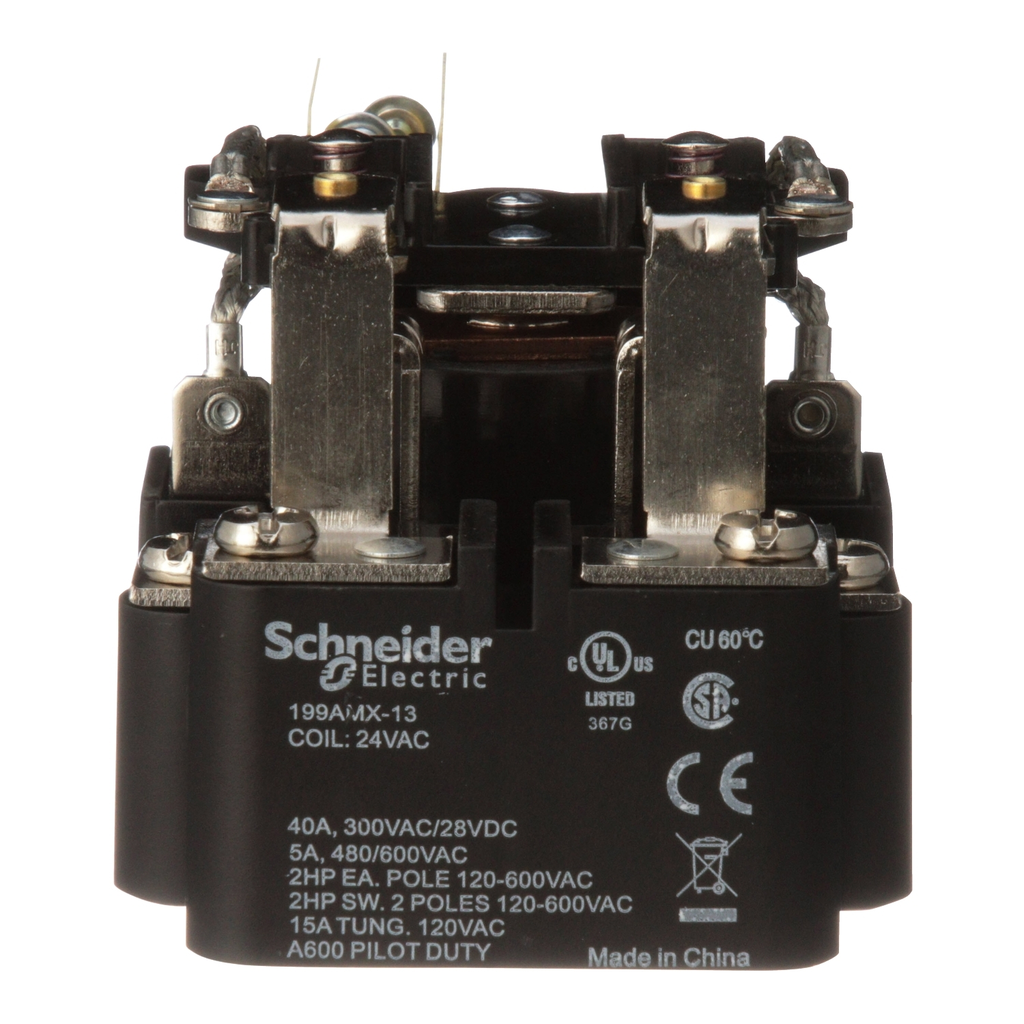

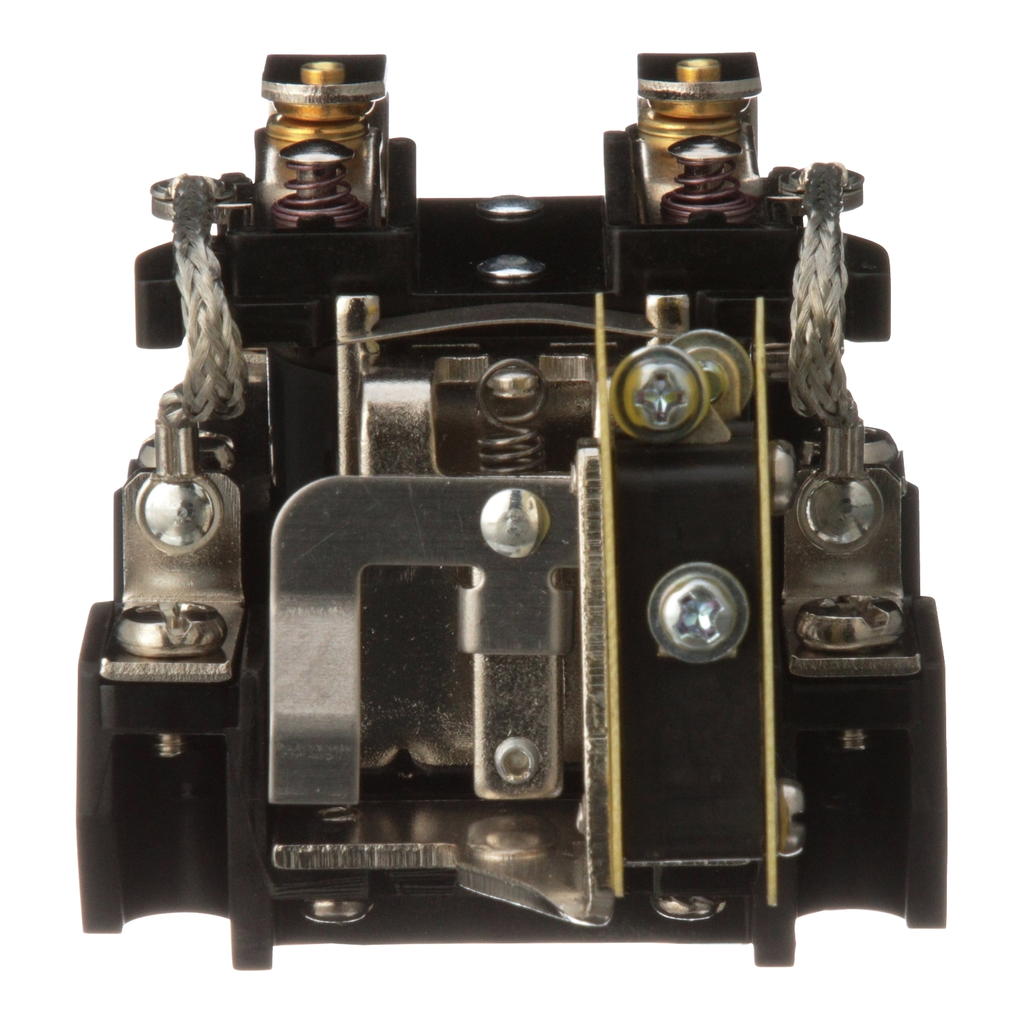

SQUARED 199AMX-13 Power Relay, DPDT

Manufacturer: Square-D / Schneider | Catalog # 199AMX13 | Cooper Electric Part # 1701175
$45.25 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 24VAC with DPDT silver alloy contact con

Technical Information

Contact Material
Silver Alloy
Cover Type
Open Cover
Dielectric Strength
1500 V
Input Voltage
24 V
Operating Temperature
-55-55 degrees C
Short Circuit Current Ratng
3 kA
Storage Temperature
-55-100 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901148982
GTiN
03606481104403
Product UPC
78590114898

Dimensions

Length
8 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA,UL Listed
Country of Origin
China
Power Consumption In W
  • 4-4 W DC
Connections Terminals
  • screw terminal - 1 x 6-6 mm²
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Voltage Range
  • 0.85...1.1 Un AC/DC
Ue Rated Operational Voltage
  • 6...600 V AC 50-60 Hz
  • 6...250 V DC
Maximum Switching Voltage
  • 600 V AC
Electrical Durability
  • 50000 cycles resistive
Maximum Horse Power Rating
  • 2 hp 120...600 V AC 50/60 Hz
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Drop Out Voltage Threshold
  • >= 0.1 Uc AC/DC
Accessory Products
  • 50-1289-P
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Input Voltage
  • 24 V AC
Dielectric Strength
  • 2200 V AC between coil and contact
  • 2200 V AC between poles
  • 1500 V AC between open contacts
  • 1500 V AC bet
Minimum Switching Current
  • 1000 mA 5 V AC/DC
Ie Rated Operational Current
  • 40 A at 300 V AC (on resistive load) conforming to UL
  • 40 A at 300 V AC (on resistive load) c
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Associated Fuse Rating
  • 50 A gG at 690 V coordination type 2 for power circuit
  • 50 A gG at 690 V coordination type
Power Consumption In Va
  • 10-10 VA AC
Product Certifications
  • UL Listed
  • CSA
  • CE
