3M 7000133617 3M™ Thin-Wall Heat Sh

Manufacturer: 3M | Catalog # 7000133617 | Cooper Electric Part # 1698493
$22.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

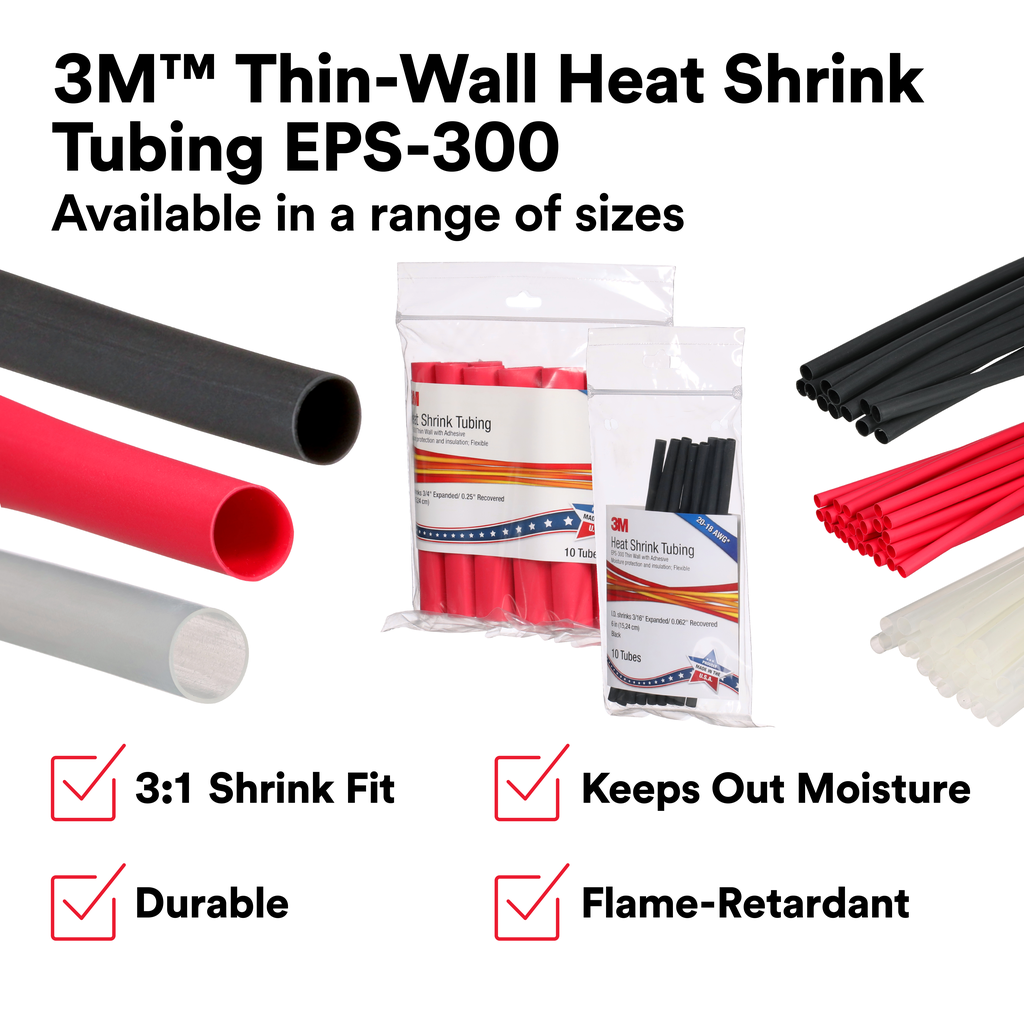

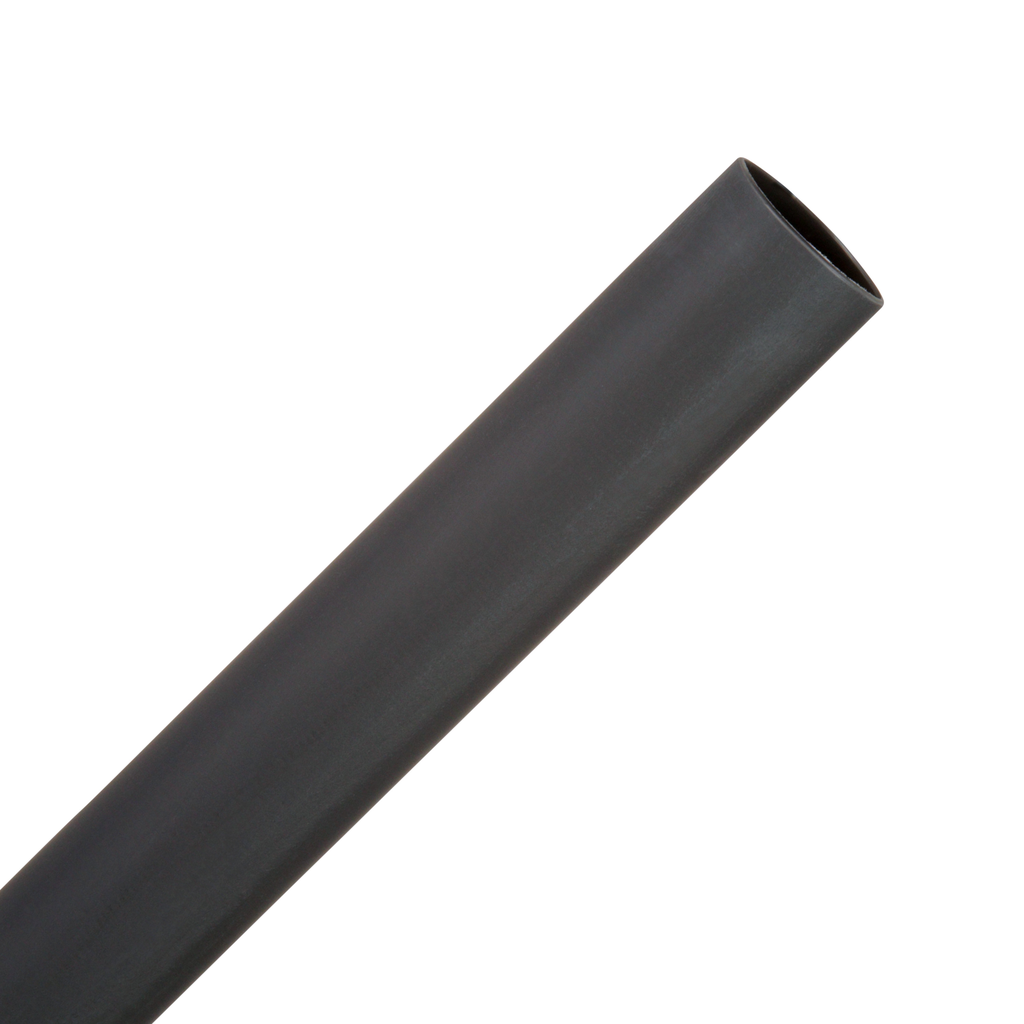

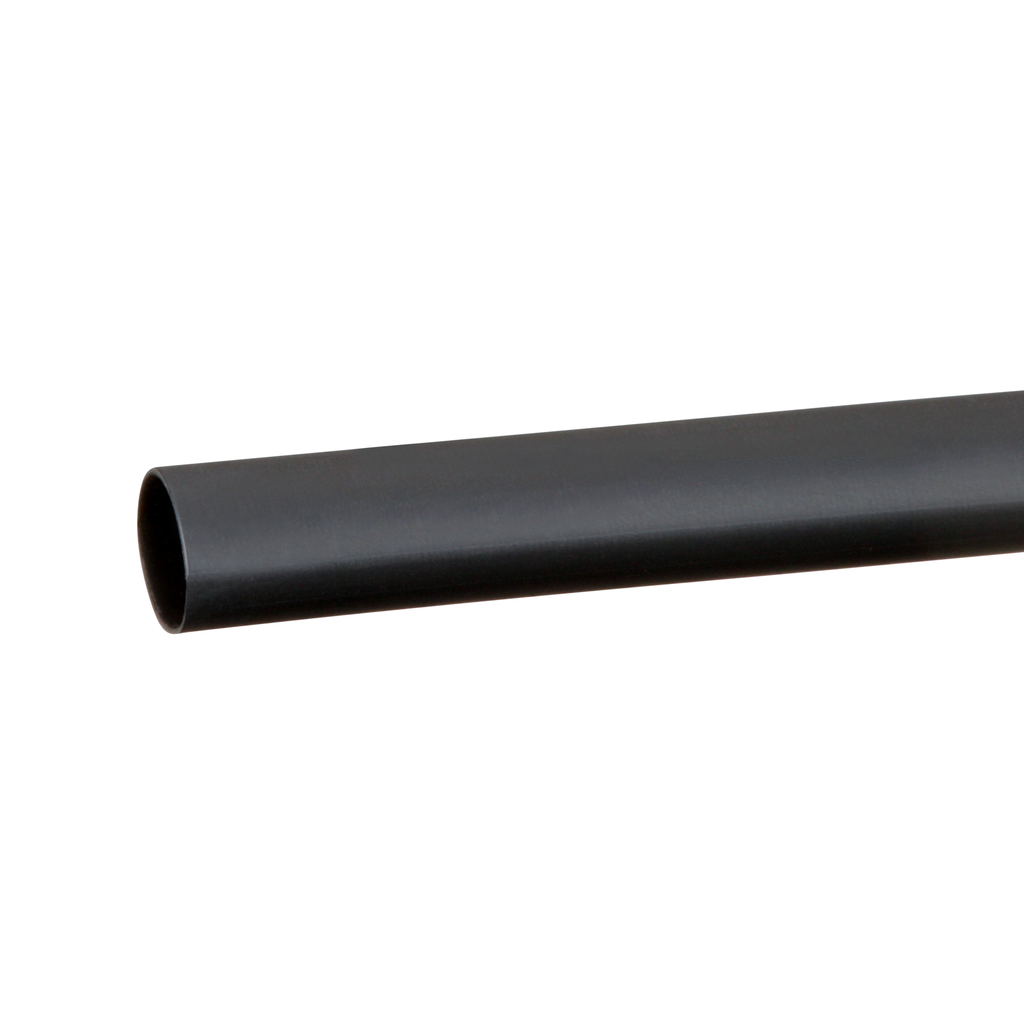

3M™ Heat Shrink Thin-Wall Flexible Polyolefin Adhesive-Lined Tubing EPS-300 is a 3:1 thin-wall tubing that offers the advantages of integral, adhesive-lined construction.

Technical Information

Dielectric Strength
700 V/mil
Material
Polyolefin
Max Operating Temperature
110.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3 to 1
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tensile Strength
2100 lb/in
Type
Residual, Current Operated

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128599211
Color
Black
GTiN
00051128599211
Product UPC
05112859921

Dimensions

Inside Diameter
0.25
Length
48 Inch
Outside Diameter
0.75 in
Overall Length
48.0 in
Thickness
0.085

Certifications and Compliance

Country of Origin
USA
Features
  • SHRINK RATIO: Offers a 3:1 shrink ratio; when freely recovered, the tubing will shrink 33% of its as-supplied diameter
  • DUAL-WALL DESIGN: A durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
  • A VERSATILE OPTION: Flame-retardant, water-resistant, and rated for 600 V applications
  • OPERATING RANGE: This tubing functions in a temperature range of -55110 C (-67230 F), with a shrinking temperature minimum of 121 C (250 F)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Offers protection for automotive, truck, electronic components, wire splices, wire bundles, and harness breakouts
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
