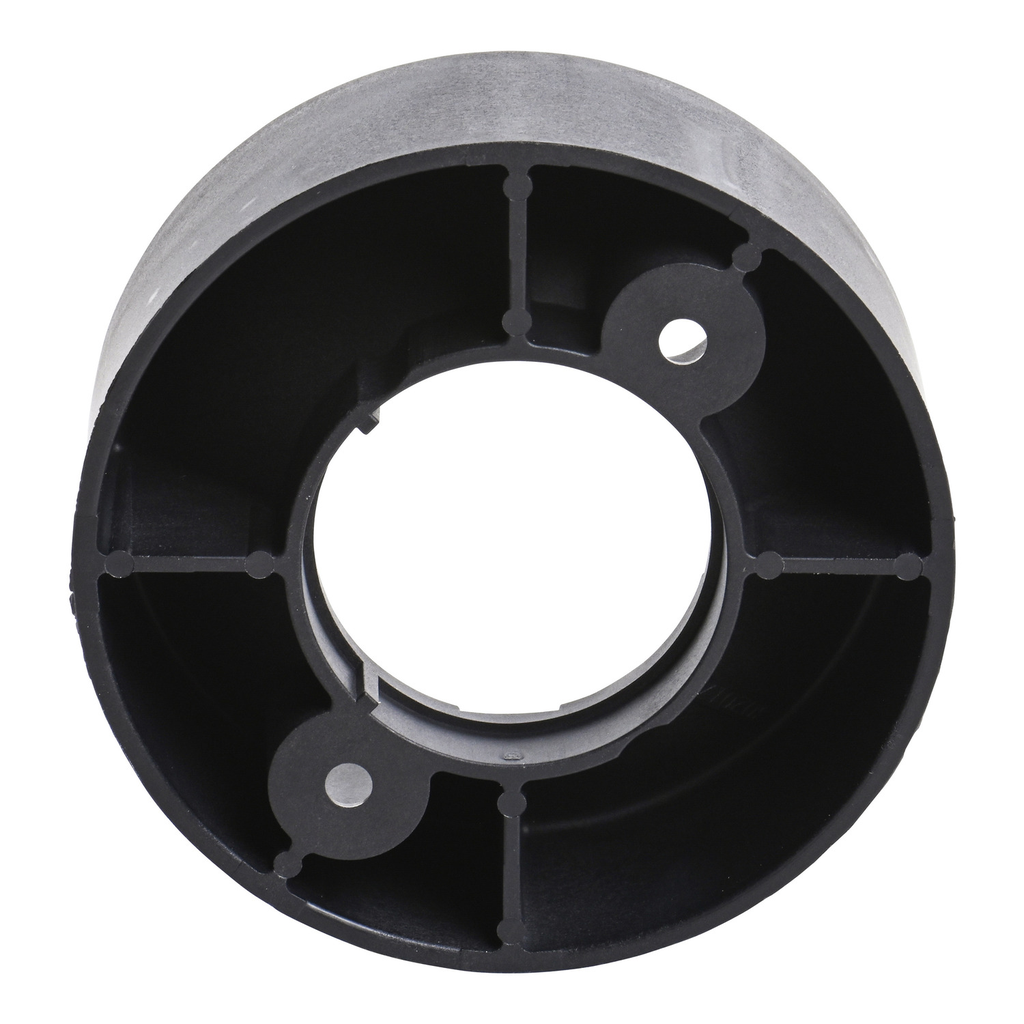

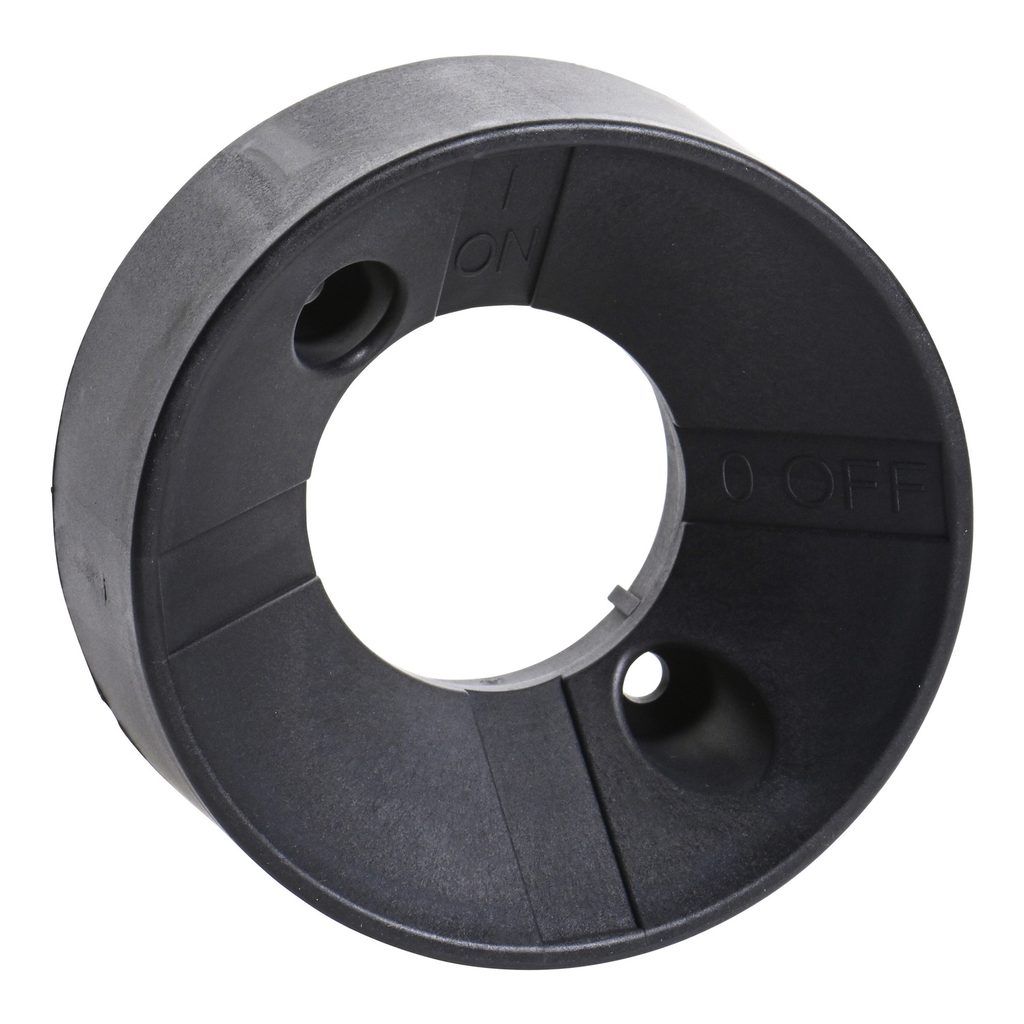

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This guide cone is used for alignment of the shaft with the disconnect switch. Guide cone is used with pistol grip handles and shafts. This guide cone has a diameter of 2.95 inches and is 1.18 inches deep. The cone weighs 0.22 lbs. This guide cone is cULus Listed and meets IEC 60947-3 requirements.
