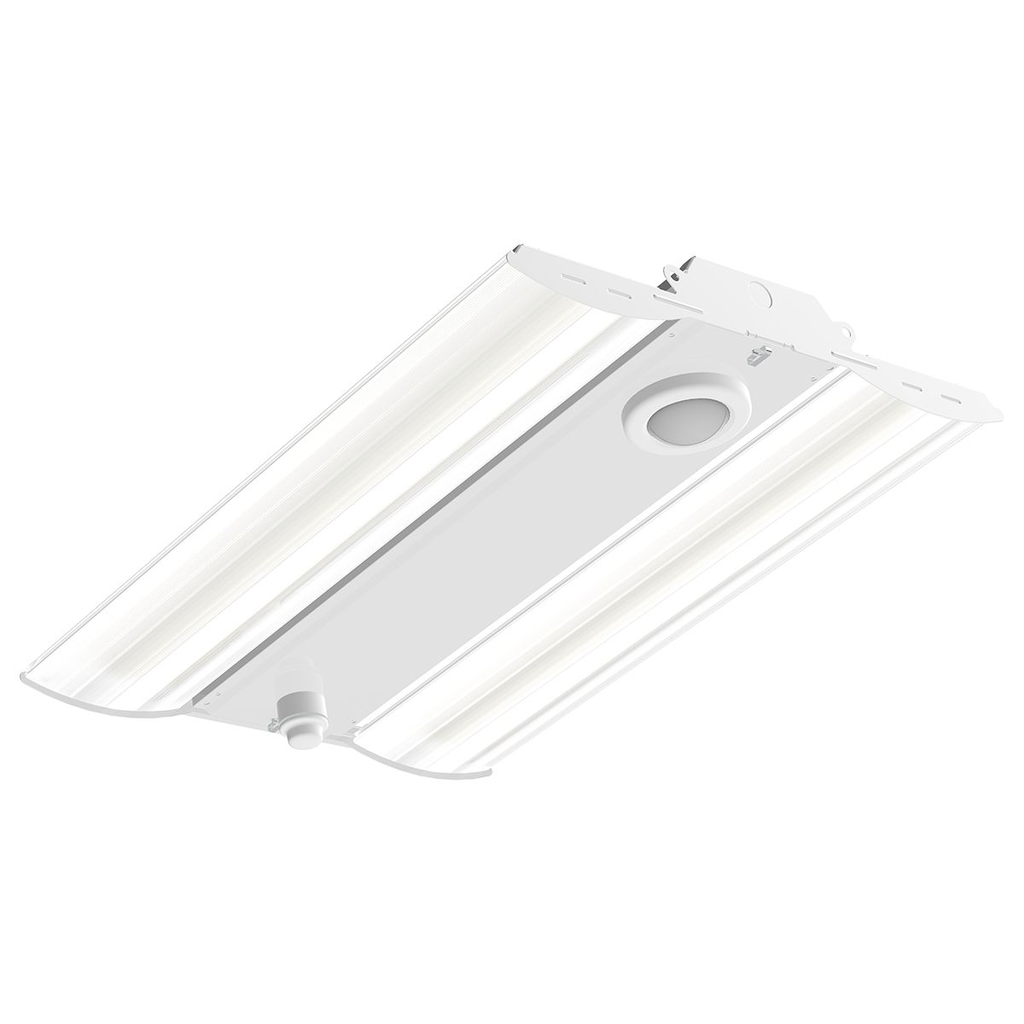

Product image for COL PEL4-40MH-FAW-EDU LT FX
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

COL PEL4-40MH-FAW-EDU LT FX

Manufacturer: Columbia Lighting | Catalog # PEL4-40MH-FAW-EDU | Cooper Electric Part # 1697895
$483.18/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Peloton™ High Performance High Bay, Size Type: 4 ft, Color Rendering Index (CRI): 80 CRI, Color Temperature: 4000 K, Light Output: 24000 lm, Lens Type: Frosted Acrylic, Light Distribution: Wide, Driver type: 0-10V Dimming, Voltage Rating: 120-277 V.

Technical Information

Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4000 K
Lumens
24,000 Lumen

Manufacturer Information

Brand
Columbia Lighting

General Product Info

12-Digit UPC
078531139094
Product UPC
07853113909

Dimensions

Height
4.2 Inch
Length
49.9 Inch
Warranty Length
5 yr
Width
15.700 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Lumen packages range from 8,000 to 60,000 lumens
  • Uplight options from 1,000 to 4,000 lumens
  • LED light engine provides efficacies of 150+ LPW standard with 170+ LPW for High Efficacy option
  • -20°C (-4°F) up to 65°C (149°F) ambient operation, see table provided for details
  • 6kV surge protection standard, with 10kV option
  • UL 924 with Two emergency battery pack options, 1800 lumens (10watt) and 4000 lumens (20watt)
  • Two distribution options available with frosted acrylic and polycarbonate lens materials
  • Long-life 60,000 hour LEDs at L80
  • NX Distributed Intelligence™ provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
  • DLC® (DesignLights Consortium) Qualified, with some Premium Qualified configurations - see www.designlights.org
  • Five year warranty
