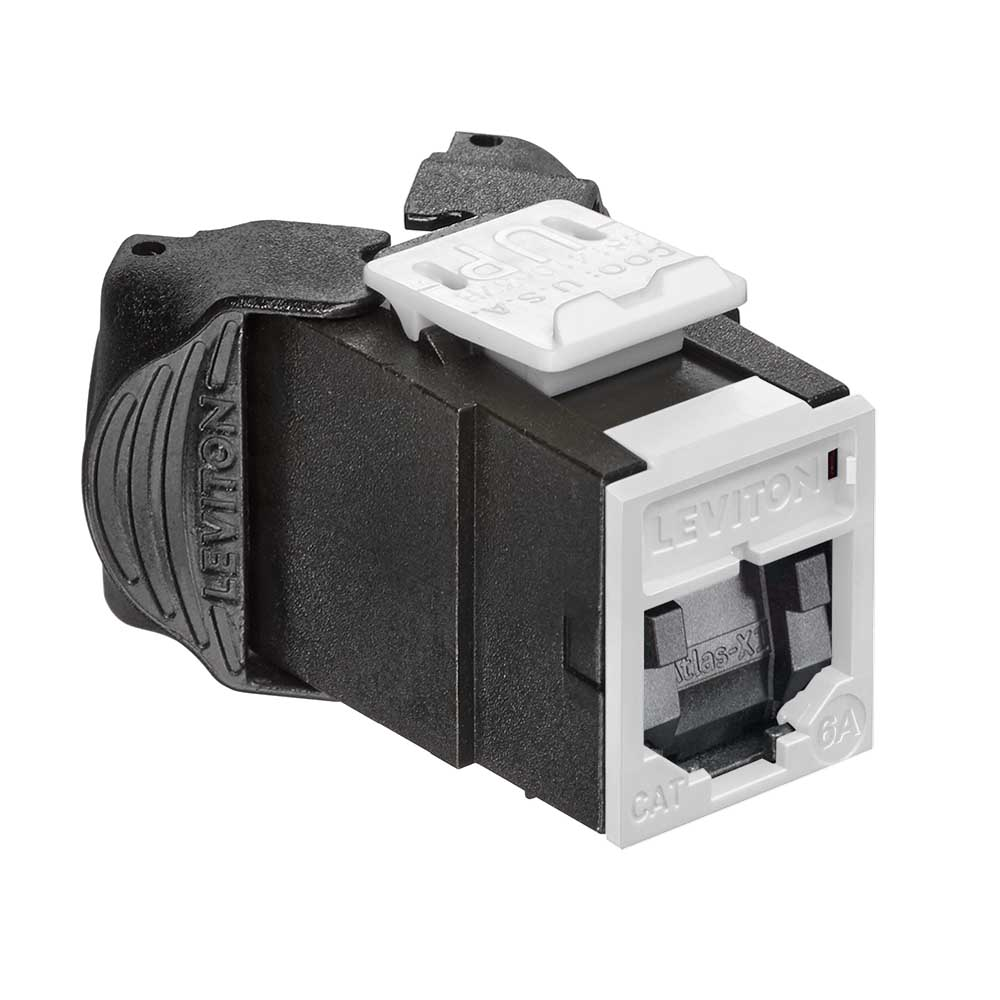

Product image for LEV 6AUJK-SW6 ATLAS-X1 CAT 6A UTP J
Email

LEV 6AUJK-SW6 ATLAS-X1 CAT 6A UTP J

Manufacturer: Leviton Mfg Co | Catalog # 6AUJK-SW6 | Cooper Electric Part # 1695710
$33.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
The ATLAS-X1 Cat 6A Component-Rated UTP QUICKPORT Jack supports 10GBASE-T networks. The jack is part of a complete ATLAS-X1 Cat 6A UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends

Technical Information

Applications
For Government, Healthcare, Manufacturing, Transportation, Gaming, and other Environments
Standard
CULus Listed
Type
Connector

Manufacturer Information

Brand
Leviton
Sub Brand
Atlas-X1™, QuickPort

General Product Info

12-Digit UPC
078477700174
Color
White
GTiN
00078477700174
Product UPC
07847770017

Certifications and Compliance

Country of Origin
USA
Patents
  • DE602015059202.6
  • EP2191541
  • EP3748789
  • MX369099
  • US9515437
Features
  • Independently tested and guaranteed to exceed all component, permanent link, and channel margins
  • Patented Retention Force Technology ™ (RFT) protects against tine damage and increases system longevity
  • For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
  • Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
  • Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Available in 13 ANSI/TIA-606-C compatible colors
  • Tested and approved for use in air-handling spaces (plenum rating) in accordance with UL Standard 2043
  • Select jack available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) for easy identification and tracking of data, voice, or other functions
  • Jack with internal shutter protects against dust and debris
  • Solid metal body dissipates 53% more heat than plastic, minimizing damage from excess heat in PoE applications
  • Tine geometry prevents arcing damage where plug and jack make contact
  • Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
