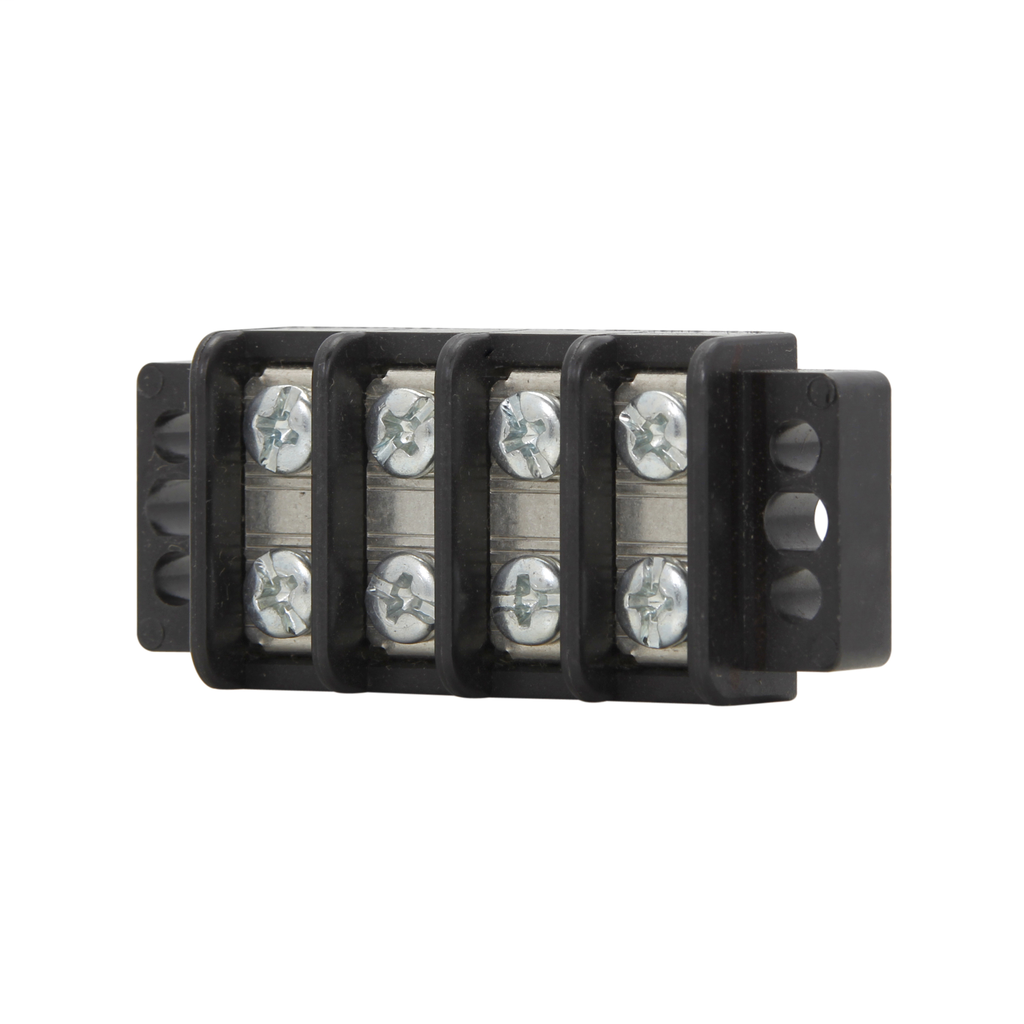

Product image for Bussmann Series TB200-12 Barrier Block
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Bussmann Series TB200-12 Barrier Block

Manufacturer: Bussmann Mfg. | Catalog # TB200-12 | Cooper Electric Part # 1694555
$23.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800 V, 300 V, 30 A, Barrier, 12-pole, 6-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated steel philslot screw

Technical Information

Amperage
30 Amp
Applications
Stationary Mach Equip In Factory - Robotics
Base Material
Molded Thermoplastic
Connection Type
Screw
Material
Brass
Mounting Type
Screw
Number of Poles
12 Pole
Operating Temperature
-40 To 130 degrees C
Screw Material
Zinc-Plated
Screw Size
#6
Screw Type
Phil-Slot
Size
6.00 In Length X 1.12 In Width X 0.56 In Height
Standard
CE,CSA,IEC,UL
TC Connection
#6-32 TPI Screw
Threads Per Inch
32
Type
Barrier,Double Row
Voltage
300 Volt

Manufacturer Information

Brand
Bussmann

General Product Info

12-Digit UPC
051712810852
Color
Black
GTiN
00051712810852
Product UPC
05171281085
Weight
3.58 lb

Dimensions

Height
8-1/2 Inch
Length
7 Inch
Width
4 in
