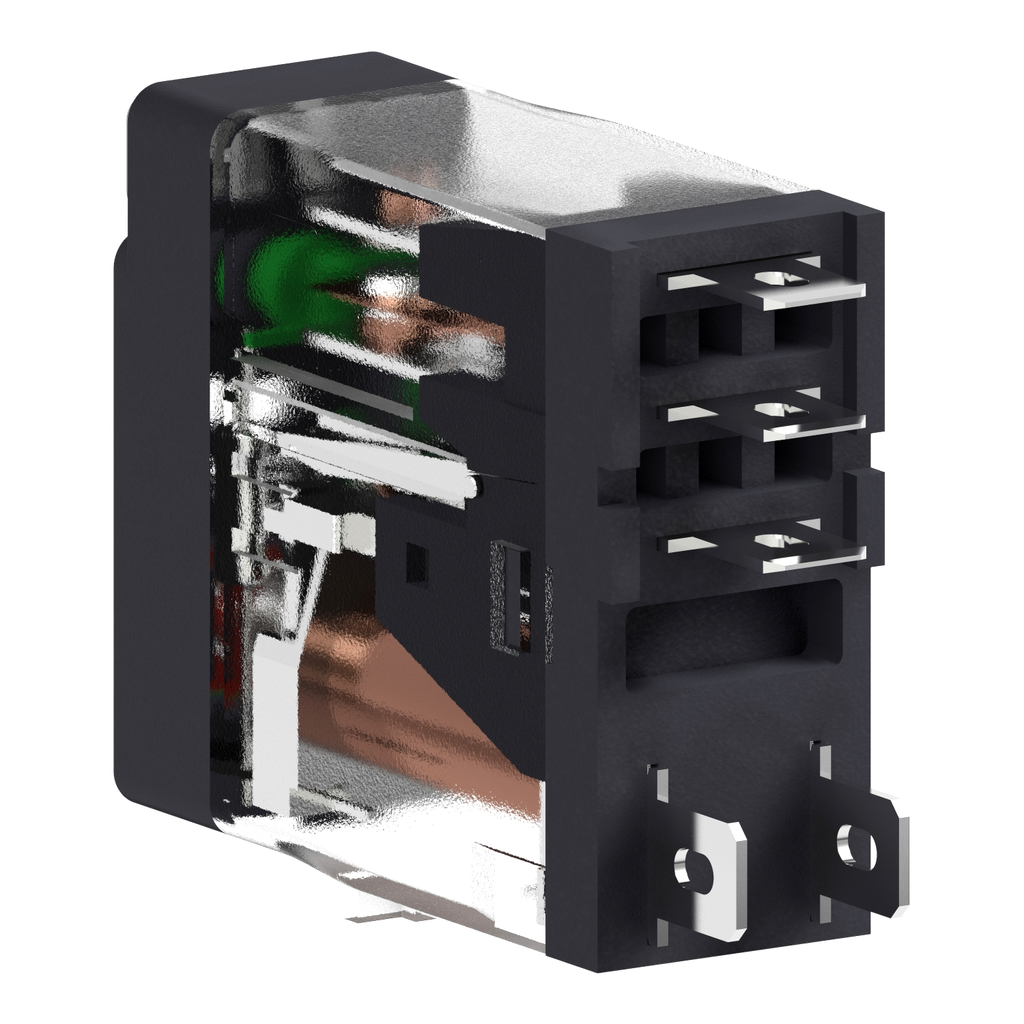

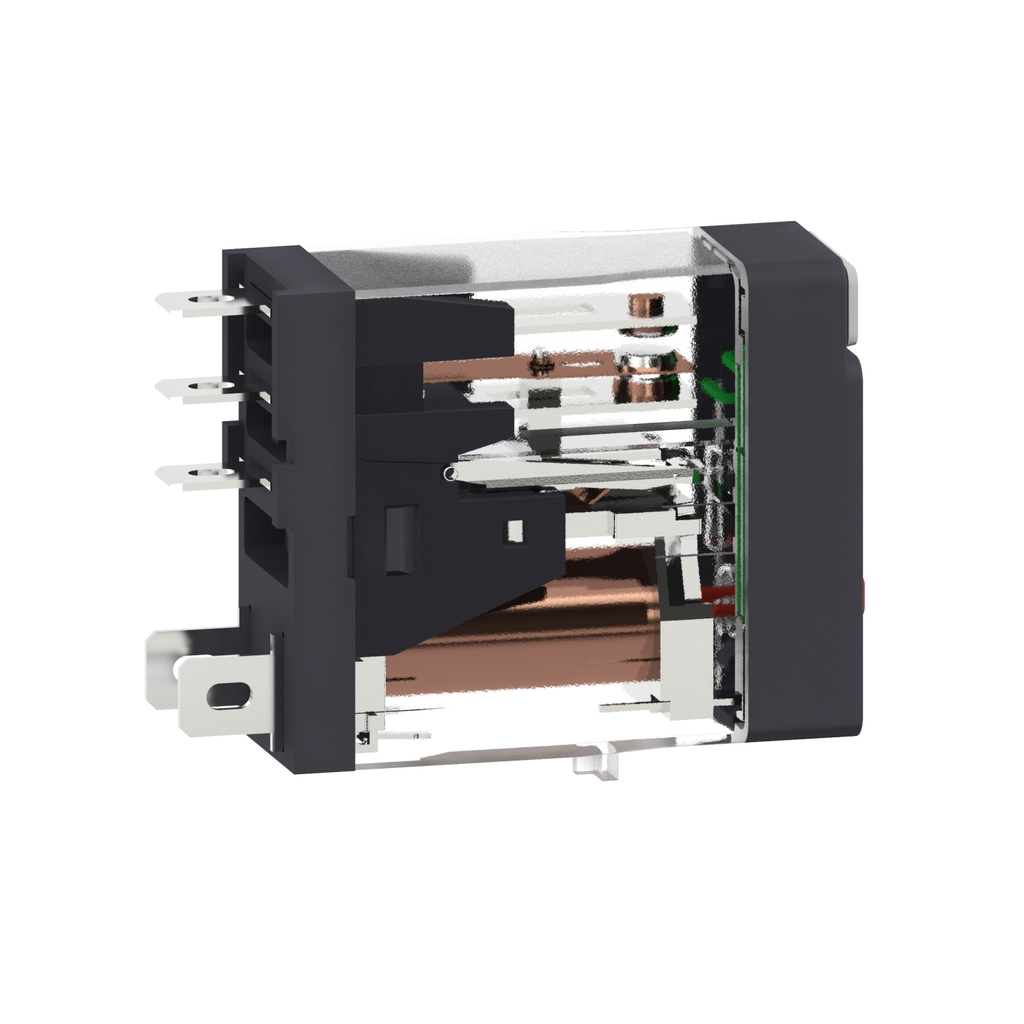

SQD RXG12JD interface plug in relay

Manufacturer: Square-D / Schneider | Catalog # RXG12JD | Cooper Electric Part # 1693717
$8.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
"This Harmony RXG plug-in relay socket has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
10 Amp 250 V AC,10 Amp 30 V DC) UL-10 Amp 30 V DC) IEC-10 Amp 250 V AC) IEC-10 Amp 250 V AC) UL
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Dielectric Strength
1000 V
Maximum Load Current
10 A 250 V AC
Net Weight
0.02 kg
Operating Cycles
<= 1800 Cycles/hour Under Load,<= 18000 Cycles/hour No-load
Operating Temperature
-40-70 Adegrees C
Resistance
10 %
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
Type
Plug-in relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RXG

General Product Info

12-Digit UPC
606480688723
GTiN
03606480688720
Product UPC
78590194988
Weight
0.02 kg

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,DNV-GL,EAC,UL
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RGZE1S35M
Cross Sell Products
  • RXG13JD
Related Products
  • LC1D09JD
  • TM221CE16T
