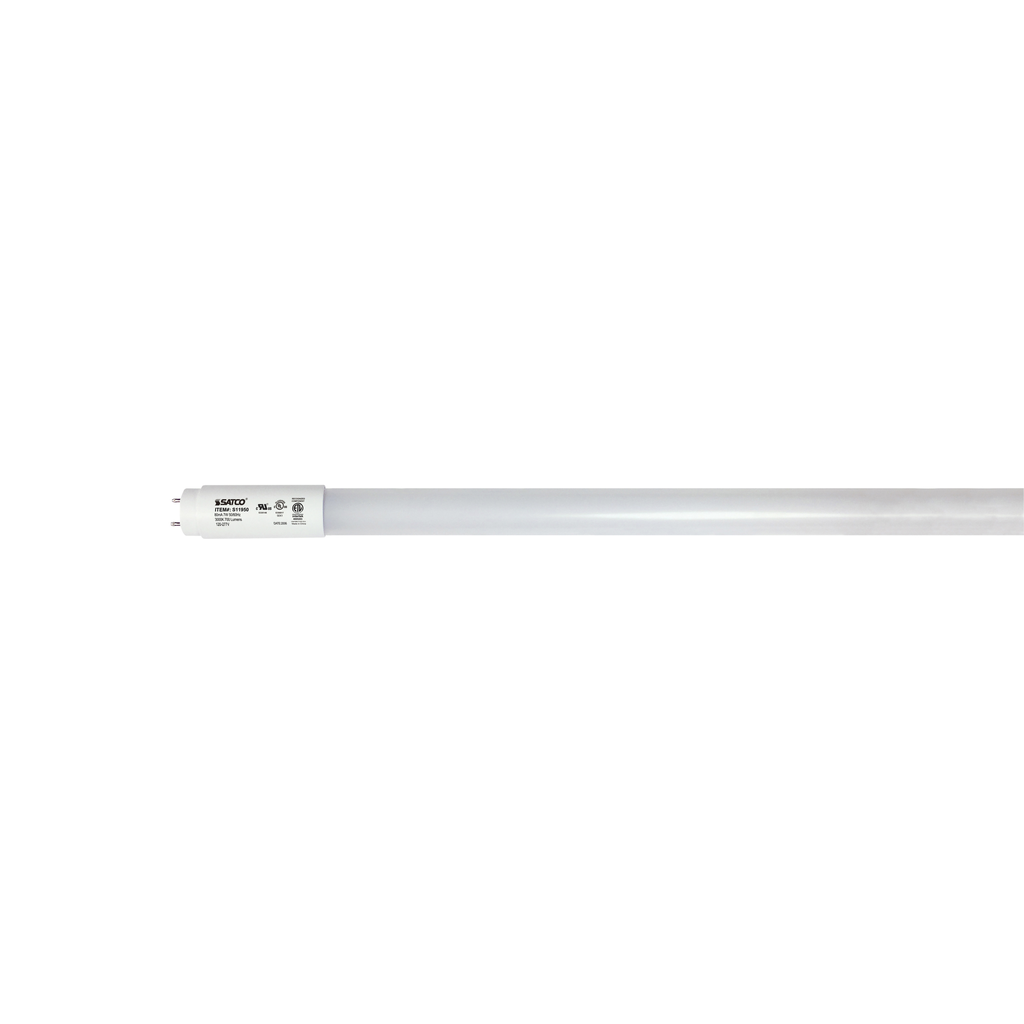

Product image for Satco S11950 7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 3000K; 50000 Average Rated Hours; 700 Lumens; Type B Ballast Bypass
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Satco S11950 7 Watt; 18 Inch; T8 Linear LED; Medium Bi-Pin G13Base; 3000K; 50000 Average Rated Hours; 700 Lumens; Type B Ballast Bypass

Manufacturer: Satco | Nuvo | Catalog # S11950 | Cooper Electric Part # 1692380
$15.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
7 Watt - 18 Inch - T8 Linear LED - Medium Bi-Pin G13 Base - 3000K - 50000 Average Rated Hours - 700 Lumens - Type B Ballast Bypass

Technical Information

Amperage
0.058-0.025 Amp
Average Rated Life
50000 hr
Base
Medium Bi Pin
Beam Angle
160
Beam Spread
160
Bulb Shape
T8
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Dimmable?
No
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lens Color
Frost
Lens Material
Glass
Lumens
700 Lumen
Material
Glass,Plastic
Operating Temperature
-13 degrees F
Power Factor
0.9
Size
17.8 in
Standard
CSA C22.2 No. 85,UL E23018,cULus
Technology Type
LED
Type
Type A
Voltage
120 Volt
Wattage
7 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923119507
Finish
Frosted
GTiN
00045923119507
Housing Color
White
Product UPC
04592311950
Weight
0.22 lb

Dimensions

Length
18 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 17.80 inches, MOD: 1.10 inches
  • 3000K Warm White Light
  • Medium Bi Pin Base
  • Rated for 50,000 hours
  • T8, Frosted Finish
  • Enclosed Rated Lamp
  • Damp location rated for indoor use
  • FCC and RoHS compliant
  • 5-year limited warranty
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
