LEV 16352-2PE EB DEC REC SPLIT W/2P

Manufacturer: Leviton Mfg Co | Catalog # 16352-2PE | Cooper Electric Part # 1689086
$24.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

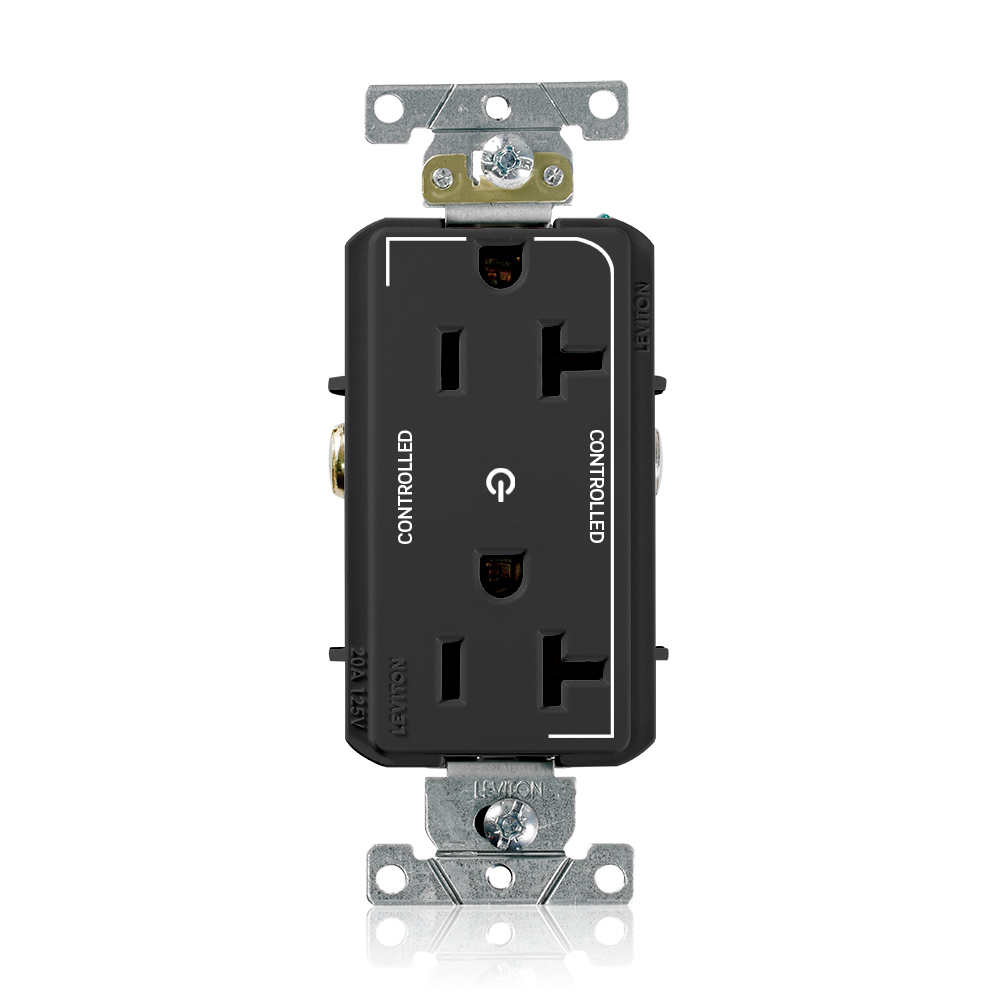

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Two Outlets Marked "Controlled", Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Black

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Nylon
Contact Material
Brass
Contact Type
Triple-Wipe
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Insulation Material
Brass
Material
Zinc
NEMA
WD-1
Number of Holes
8 Hole
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 to 75 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Zinc-Plated Steel
Screw Size
10-32,8-32
Standard
UL
Temperature Rise
200 %
Terminal Size
14-10 AWG
Termination Type
Back Wire,Side Wire
Type
Decorator, Heavy Duty
Voltage
125 Volt
Wire Count
3
Wire Type
Stranded or Solid

Manufacturer Information

Brand
Leviton
Sub Brand
INDUSTRIAL RECEPTACLES

General Product Info

12-Digit UPC
078477706107
Color
Black
GTiN
00078477706107
Product UPC
07847770610

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
Mexico
Features
  • Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Patents
  • MX321216
  • US8684771
NEMA
  • 5-20R
Color Variations
  • Brown
