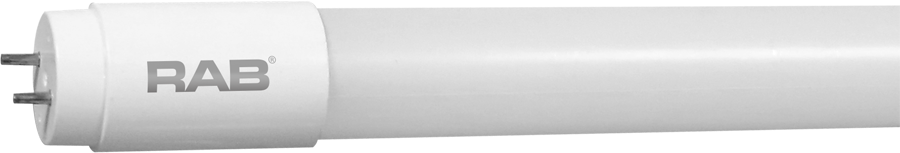

Product image for RAB T8-14.5-48GC-830-SE-BYP-PDIM LE
Image thumbnail 0
Image thumbnail 1
Email

RAB T8-14.5-48GC-830-SE-BYP-PDIM LE

Manufacturer: Rab Electric Mfg | Catalog # T8-14.5-48GC-830-SE-BYP-PDIM | Cooper Electric Part # 1685976
$18.59/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Linear Tubes 1800 Lumens T8 14.5W 48 Inch Glass Coated 80CRI 3000K Single Ended Wiring Method Ballast Bypass Phase Cut Dimming

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base Type
G13
Beam Angle
180 degrees
Beam Spread
180 degrees
Bulb Shape
T8
Color Accuracy
80
Color Rendering Index
80
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Dimmable?
Yes, 120V
Efficacy
124 LPW
Input Voltage
120 V
Input Wattage
14.5
Lumens
1,800 Lumen
Material
Coated Glass
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Power Factor
>0.9,>0.9
Type
LAMPS
Wattage
14.5

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813834429
Color
3000 K
Finish
White
GTiN
00019813834429
Product UPC
01981383442
Weight
0.5 lb

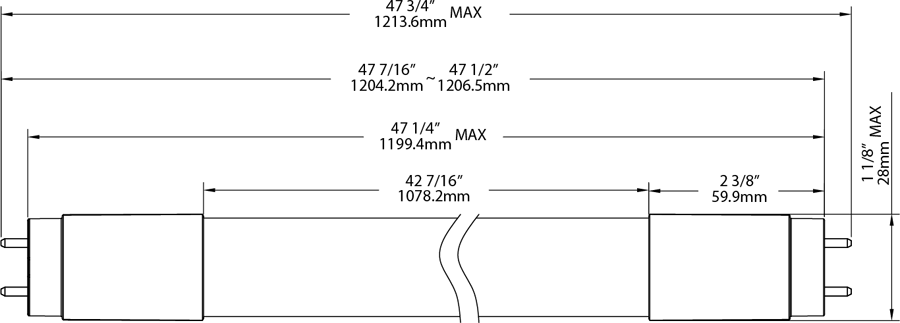

Dimensions

Length
4 Foot
Warranty Length
5 yr
Features
  • Replacement for conventional fluorescent T8 and T12 linear tubes
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
  • Works with non-shunted sockets ONLY.
  • Separate wiring harness and socket kit accessory available
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Phase cut dimming
  • Equivalency
  • Warranty
