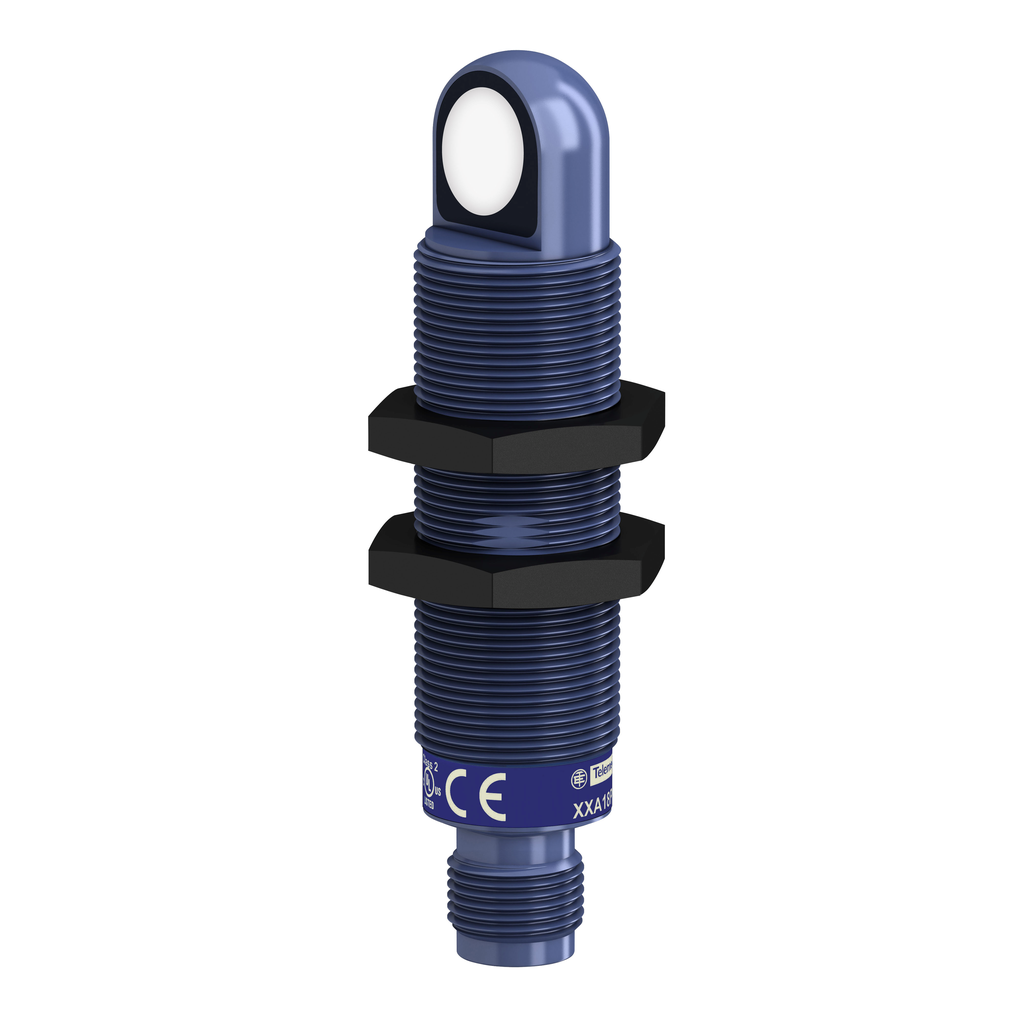

This product is part of the XX range, an offer of ultrasonic sensors. This ultrasonic sensor has a cylindrical M18 design with diffuse detection system. It supports 1m nominal sensing distance and 1 NO or 1 NC PNP discrete output. The ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and current consumption of 30mA. It is furnished with 5-pin M12 male connector for electrical connection. It is an IP65/IP67 rated product. The enclosure is made of PBT with epoxy, rubber and resin front. Its dimensions are 18mm (width) x 79mm (depth) x 18mm (height). It weighs 0.04kg. This product is certified by CE, CULus, EAC, E2, Ecolab and RCM. It meets CSA C22.2 No 14, EN/IEC 60947 5 2 and UL 508 standards. XX Ultrasonic Sensors operate in diffuse, reflex, and thru beam modes. This range of sensors even includes long distance detection models. The XX ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target's shape, texture, color, or transparency.
