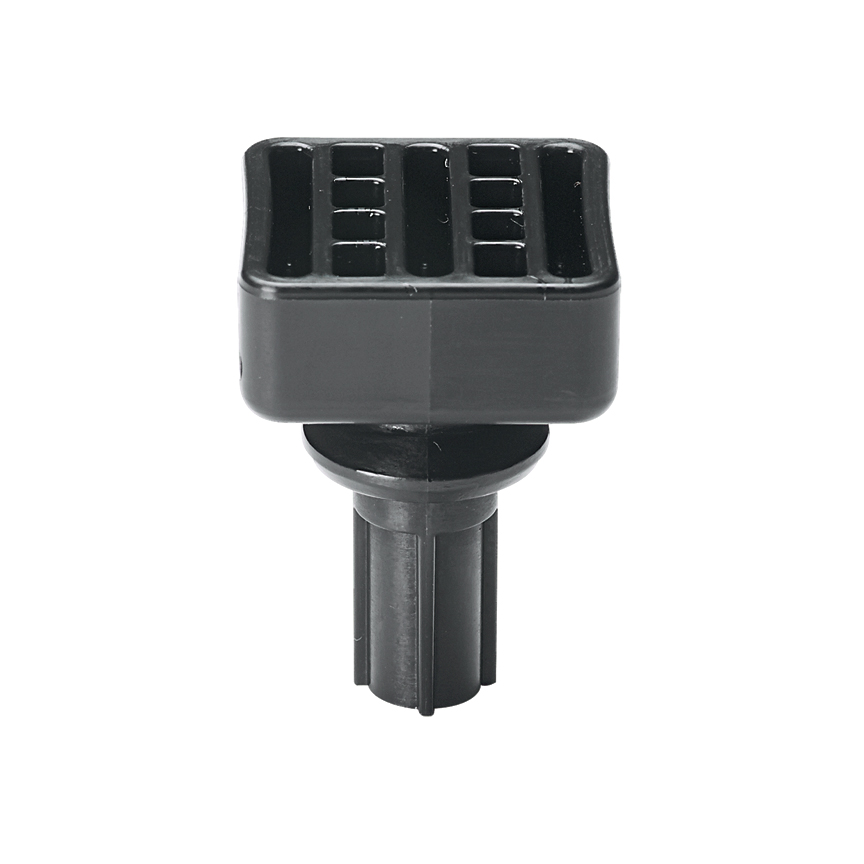

Product image for Panduit QB-BASE120-Q Harness Board Accessories
Email

Panduit QB-BASE120-Q Harness Board Accessories

Manufacturer: Panduit Corp | Catalog # QB-BASE120-Q | Cooper Electric Part # 1683338
$992.59/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing
Mounting platform that is inserted in Quick-Build pegs 1.2 x 1.2 (30.48mm x 30.48mm), Allows test fixtures, corner posts, wire end holders,and other harness board accessories to be installed to provide a complete Quick-Build... harness system. Compatible with #8 screw size. Screw length will vary based on test fixtures and accessories used. Note: Consider multiple QB-BASE120-Q components for large test fixtures.

Technical Information

Applications
(1)Provides the Ability to Rotate to Allow Breakouts and Cable Pathways to Accommodatevarious harness design requirement(2) Repositionable, allowing user to build different harness configurations as needed
Material
Nylon
Type
Harness Board Accessory - Base

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Quick-Build™

General Product Info

12-Digit UPC
074983083046
Color
Black
GTiN
00074983083046
Product UPC
07498308304
UNSPSC
39121707

Dimensions

Diameter
NA Inch
Height
1.66 Inch
Length
1.17 Inch
Overall Length
1.17 in
Width
1.17 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant
Prop 65
  • No
