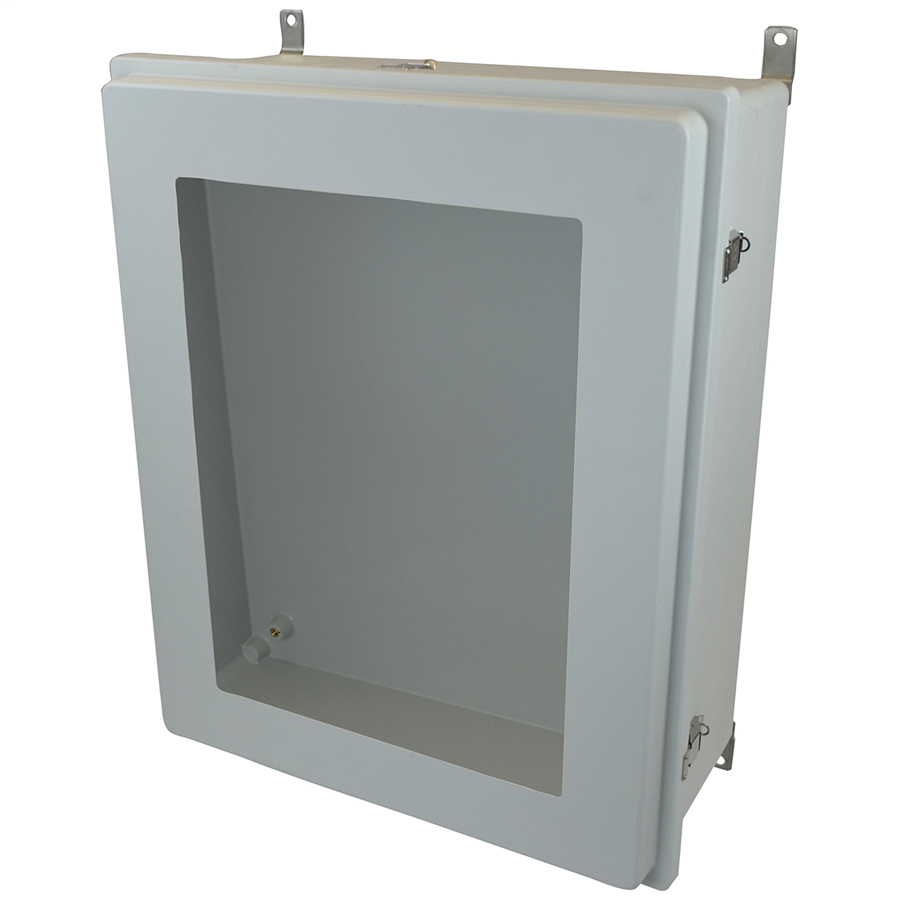

Product image for ALLIED AM30248RLW 30X24X8 ENCL RSD
Email

ALLIED AM30248RLW 30X24X8 ENCL RSD

Manufacturer: Allied Moulded Products | Catalog # AM30248RLW | Cooper Electric Part # 1682183
$743.86/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Safety Data Sheet
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Raised, hinged snap latch Type:, overlapping and viewing window cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=30.00", B=24.00", C=8.13" plus 1.75" raised cover, usable depth=8.56" Color:RAL 7035 - Gray with clear window Mounting:Stainless steel feet fastened to back side brass inserts

Technical Information

Applications
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Insulation Type
Nonconductive Nonmetallic
Material
Fiberglass
Mounting Type
Stainless Steel Feet Fastened To Back Side Brass Inserts
Size
A=30.00", B=24.00", C=8.13" plus 1.75" raised cover, usable depth=8.56"
Type
NEMA 4X Type Nonmetallic Enclosure

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
AM Control

General Product Info

12-Digit UPC
085339930273
Color
Colorless/Light Gray
Construction
Compression molded
GTiN
00085339930273
Product UPC
08533993027

Dimensions

Depth
8 Inch
Height
30 Inch
Width
24 in

Certifications and Compliance

Buy American Compliant
Y
Additional Materials
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system
  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • 316 stainless steel mounting brackets
  • Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
  • CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
  • Complies with:
  • RoHS directive
  • EN / IEC 60204-1 and 60529 Type IP66
  • P3024
  • PF3024
  • HFP3024
  • AM30248RTW
  • AMPOLEMNT24
  • PG3024
  • AMHS150
  • AM30248RL
  • PA3024
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
